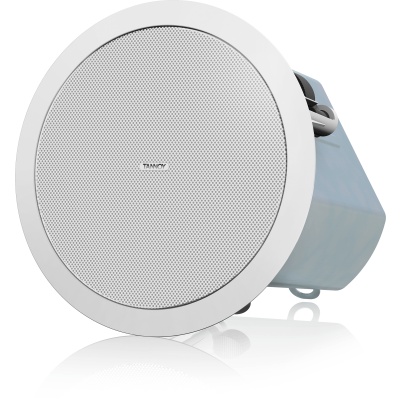

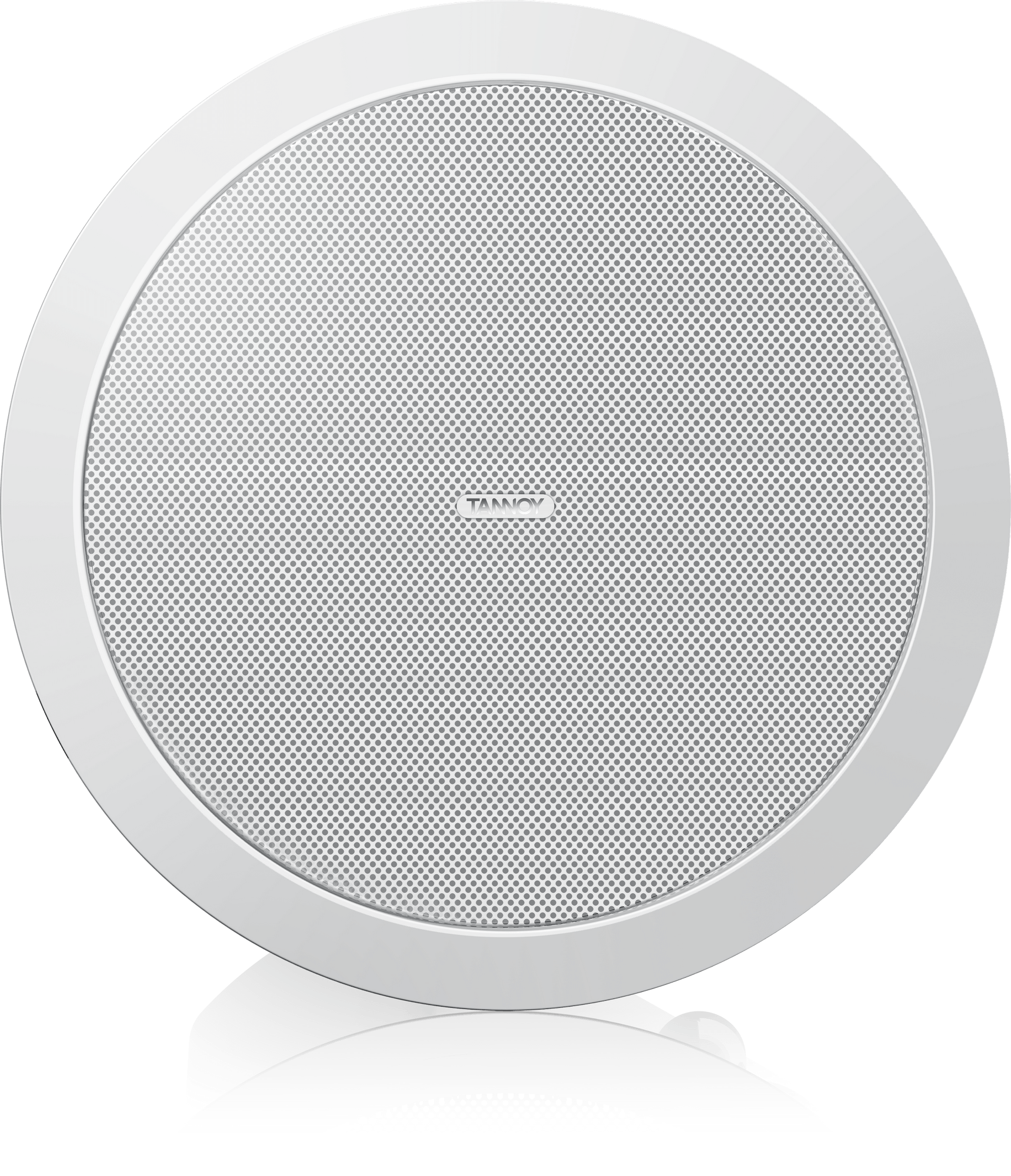

The Tannoy CMS 503ICT BM is a professional 5-inch full-range ceiling loudspeaker designed for commercial and installed audio applications. Featuring Tannoy’s ICT (Inductive Coupling Technology) point-source driver, it delivers clear, natural sound with high speech intelligibility and accurate music reproduction for distributed audio systems. (theaudiospecialists.eu)
The blind-mount (BM) design allows the back-can enclosure to be installed during construction, with the speaker assembly added later. This ensures a clean, seamless integration into ceilings while protecting the internal components during building work or renovations.
The CMS 503ICT BM supports 70V / 100V line distributed audio systems as well as 16-ohm low-impedance operation, providing maximum flexibility for multi-zone commercial installations. A front-accessible low-loss transformer tap selector allows installers to quickly adjust power levels without removing the speaker from the ceiling.
Constructed from durable ABS back-can and powder-coated steel grille, this speaker is engineered for long-term reliability in professional environments such as offices, hotels, retail stores, restaurants, and conference facilities. Its wide dispersion pattern ensures even sound coverage across the listening area, making it ideal for background music, paging, and multi-zone audio applications.
Features
- 5″ full-range ceiling loudspeaker with ICT driver (Inductive Coupling Technology)
- Blind-mount back-can for pre-installation during construction
- Wide 105° dispersion for even sound coverage
- Supports 70V / 100V distributed systems and 16-ohm low-impedance operation
- Front-accessible low-loss transformer tap selector
- Powder-coated steel grille, paintable to match ceiling décor
- Durable ABS back-can for long-term reliability
- Ideal for offices, hotels, restaurants, retail stores, and conference rooms
- High-quality reproduction for both voice and music applications
Specifications
| Specification | Details |
|---|---|
| Model | Tannoy CMS 503ICT BM |
| Product Type | Full Range Ceiling Loudspeaker |
| Driver | 5″ (130 mm) ICT point-source driver |
| HF Component | ICT high-frequency element |
| Frequency Response (-10 dB) | 70 Hz – 20 kHz |
| Frequency Response (-3 dB) | 90 Hz – 20 kHz |
| Sensitivity | 89 dB (1 W / 1 m) |
| Power Handling | 50 W continuous / 200 W peak |
| Nominal Impedance | 16 Ohms |
| Transformer Taps | 70V / 100V multi-tap |
| Coverage Angle | Approx. 105° conical |
| Enclosure | ABS blind-mount back-can |
| Grille | Powder-coated steel, paintable |
| Cutout Diameter | approx. 190 mm |
| Weight | approx. 3.2 kg |
| Certifications | UL1480, UL2043, CE |
