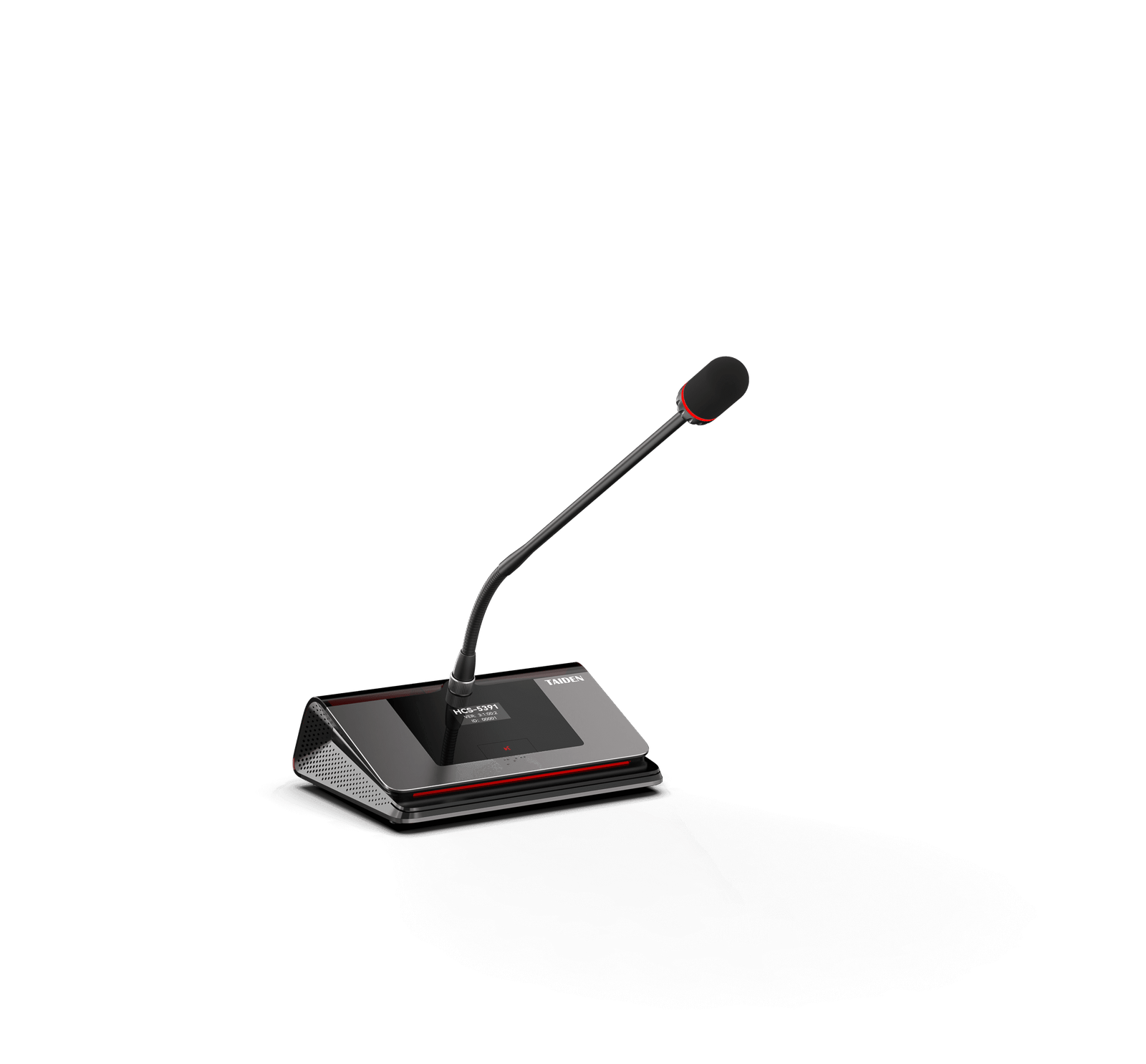

TAIDEN HCS-5391DE IR Delegate Unit Wireless Microphone for Conference Systems

The multi-functional wireless delegate unit meets the demands of even the largest conferences and provides facilities for speaking, listening, voting and selecting language channels. It has excellent immunity to RF interference from mobile phones and features a channel selector and a headphone connection. Channel selection is automatically limited to the number of language channels available. The loudspeaker offers superior acoustics with minimal feedback, for enhanced intelligibility. Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

FEATURES

• Tabletop innovative and minimalist design for embody bridging communication between participants inspired by the shape of a book.
• Wireless unit, easy setup and removal
• Hi-Fi loudspeaker
• Braille is present for physical buttons
• System controls up to 1000 contribution units
• Transmitting up to 8 CHs high quality digital audio signals
• Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 50 Hz to 20 kHz perfect sound quality, extremely low distortion factor
• Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed
• Excellent immunity to RF interference from HF-driven lighting and mobile phones
• Microphone sensitivity and EQ individually adjustable

FUNCTIONS

• Compliant with ISO 22259
• Based on TAIDEN originated dirATC-digital infrared Audio Transmitting and Control technologies
• Infrared transmitting carrier frequency conforms to IEC 61603-7, DQPSK digital modulation/demodulation technology
• Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 50 Hz to 20 kHz perfect sound quality, extremely low distortion factor
• Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed
• Adopts 1~8 MHz transmission frequency, excellent immunity to RF interference from HF-driven lighting and mobile phones
• System controls up to 1000 contribution units
• Unique ID preset for each unit to avoid double ID forever
• Equipped with a Type-C USB port at the bottom, which can be used for unit binding. Once bound, the conference unit can be used by the same participant, occupying only one transmission channel without any audio transmission delay. If one conference unit fails, another unit can seamlessly take over (requires hardware version 04 or higher).
• Equipped with 5PIN microphone socket, stem microphone ordered separately, suitable for MS5* and MS**E type stem microphone
• Stem microphone can be unplugged during adjournment, easy to maintain
• Hi-Fi loudspeaker, minimal feedback
• Ø 3.5 mm stereo headphone jack for headphone with controllable volume
• Microphone On/Off button
• Built-in channel selector (operable only when earphone is inserted)
• Delicate and stylish 160×80 OLED with screen saver function, can display below information: 1) Model, software version and ID is displayed when it startup 2)Signal icon, battery power, microphone status and headphone volume is displayed under normal use 3) ‘ALARM’ prompt is displayed when the alarm triggers 4) Battery level is displayed when charging
• Microphone sensitivity and EQ individually adjustable
• System implements the following facilities when operated in stand-alone mode: 1) “ACTIVE MICS”, set the number of delegates permitted to speak at the same time (1/2/3/4) 2) “OPEN” mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic. On/Off” button 3) “OVERRIDE” mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone is turned on and the first active microphone is turned off 4) “VOICE” mode, Mic. sensitivity and close time adjustable, built-in “Flash-on” technology for quick voice control
• System supports “Request” mode when connected to computer. The delegate unit will enter into application state by pressing the speech button, and can speak after approval. If it does not reach the Mic. active limit, the chairman/VIP unit microphone can be turned on directly

CONTROLS AND INDICATORS

• Delicate and stylish 160×80 OLED screen for displaying Model, ID, firmware version, signal icon, battery power, microphone status, headphone volume, alarm status and charging status
• Power switch
• Headphone volume control button
• Microphone On/Off button
• Mode LED Indicator

INTERCONNECTIONS

• 5PIN socket for pluggable microphone
• Ø 3.5 mm stereo headphone jack
• Power adapter interface
• Type-C USB interface

 SPECIFICATIONS

Electrical

Headphone connection

• Frequency response 50 Hz to 20 kHz
• Headphone load impedance ≥16 Ohm
• Headphone output 10 mW

Interface data

• Connector  Ø 3.5 mm stereo jack for headphone

Operation time of battery pack

• When mic. is continuously on Approx. 14.4 hours
• When mic. is off Approx. 48 hours

Mechanical

• Mounting Tabletop
• Dimensions (h x w x d) 57 x 201 x 135 mm
• Weight – Excl. battery 0.6 kg / Incl. battery 0.9 kg
• Color Modern Gray (PANTONE 410C)
