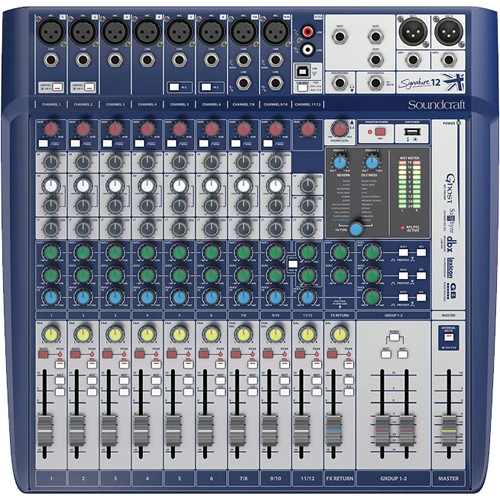

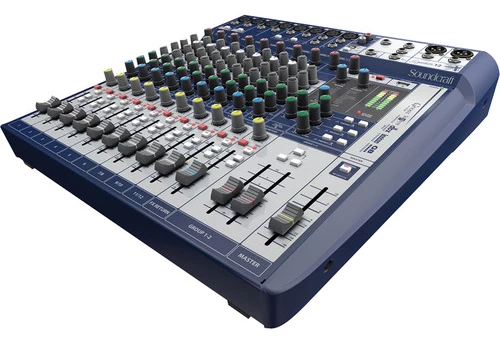

Soundcraft Signature 12 12-Input Mixer with Effects

Name: Soundcraft Signature 12 12-Input Mixer with Effects
Brand: Soundcraft
SKU: Signature 12
Price: 2579.74 AED
Availability: InStock

Brand :

Sku: Signature 12

AED 2,579.74 Exc VAT

Available in stock

Features

The Signature 12 from Soundcraft is a 12-input analog mixer with onboard effects. The Signature 12 features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.

EAN: 668705001144

Compare Wishlist

Category: Audio Mixers Brand: Soundcraft

Description

Features

Specifications

Channels	12
Preamps	8 x Ghost
Input Limiter	dbx: 2
Effects	Lexicon: Single engine
Faders	2″ (60 mm)
Frequency Response	Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz
THD	Mono Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz Stereo Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.007% @ 1 kHz
Noise	Mono Mic Input E.I.N. (max gain): <-126 dBu (150 Ohms source) Stereo Mic Input E.I.N. (max gain): <-124 dBu (150 Ohms source)
Crosstalk	Channel Mute: >-90 dB Fader Cut-off (rel +10 mark): >-90 dB Aux Send Pots Offness: >-82 dB
EQ Section	EQ (Mono inputs) HF: 12 kHz, +/-15 dB MF (swept): 140 Hz to 3 kHz, +/-15 dB LF: 60 Hz, +/-15 dB EQ (Stereo inputs) HF: 12 kHz, +/-15 dB MF: 1 kHz, +/-15 dB LF: 60 Hz, +/-15 dB
Input and Output Level	Mic Input: +12.5 dBu max Line Input: >+26 dBu max Stereo Inputs: >+26 dBu max Mix Output: +21.5 dBu max Headphones (@150 Ohms): 300 mW
Input and Output Impedance	Mic Input: 1.2 kOhms Hi-Z Input: 968 kOhms Line Input: 10 kOhms Stereo Input: 21.5 kOhms Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced)
USB Audio	Inputs/Outputs: 2-in, 2-out Bit Depth: 16-bit, 24-bit Sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Operating Conditions	Temperature Range: 41 to 104°F / 5 to 40°C
Power Consumption	<60 VA
Dimensions	19.3 x 17.9 x 8.3″ / 490.0 x 455.0 x 210.0 mm
Weight	12.5 lb / 5.7 kg
