Description

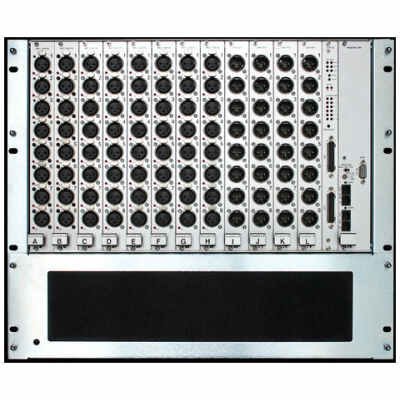

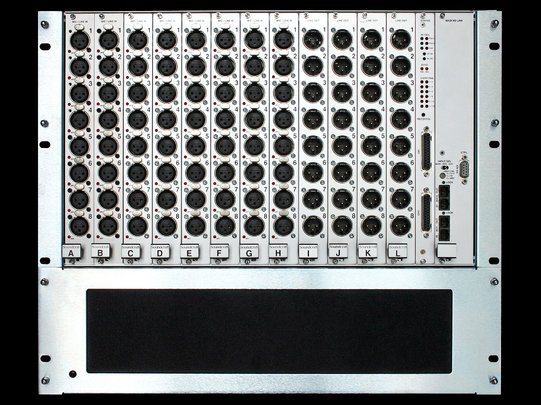

The Soundcraft Standard Vi Stagebox is an advanced audio I/O unit designed to deliver exceptional flexibility and high-quality audio capture for Vi-series mixing consoles. It comes equipped with 64 analog mic/line inputs and 32 analog line outputs, featuring 48V phantom power and a 100Hz high-pass filter applied before the A/D conversion for optimal signal integrity.

Each mic preamp gain can be remotely controlled directly from the mixing console, streamlining live or broadcast workflows. The stagebox also offers modular expansion capabilities: optional AES/EBU digital input/output modules are available in groups of 8, alongside interface cards for widely used digital audio formats such as Dante, BluLink, CobraNet, Aviom A-Net16, and Ethersound.

For larger or more complex setups, up to five Vi stageboxes can be linked together to form a comprehensive digital patchbay. This setup enables the user to assign any of the 128 console input channels from sources across the connected stageboxes, enhancing routing flexibility in live production environments.

Features:

  • 64 analog mic/line inputs with 48V phantom power and 100Hz HPF

  • 32 analog line outputs

  • Remote mic amp gain control via control surface

  • Optional AES/EBU I/O modules (in groups of 8)

  • Support for audio interface cards: Dante, BluLink, CobraNet, Aviom A-Net16, Ethersound

  • Connect up to 5 stageboxes to form a digital patchbay

  • Dynamic input source selection across multiple units

  • Rugged design suitable for touring and fixed installations

Specifications:

Without Flight Case:

DimensionMeasurement
Height356 mm
Width482 mm
Depth380 mm
Weight25 kg

With Flight Case:

DimensionMeasurement
Height780 mm
Width754 mm
Depth568 mm
Weight50 kg
