Description

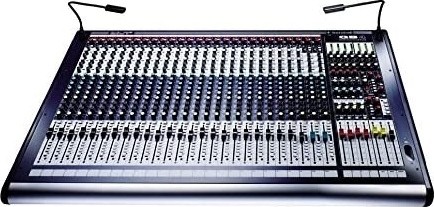

The Soundcraft GB4 24-Channel High Performance GB Series Console Audio Mixer combines a comprehensive set of features with compact design and exceptional audio performance, making it perfect for installations and small touring sound systems. With a focus on reliability and ease of use, the GB4 is engineered to meet the demands of live sound mixing while providing the performance you expect from a Soundcraft product.

Designed by Graham Blyth to celebrate Soundcraft’s 30th anniversary, the GB4 features the renowned GB30 microphone preamps and 4-band GB30 EQ section, ensuring pristine audio quality for all your live sound needs. The mixer is available in frame sizes ranging from 16 to 40 channels, and this 24-channel version is well-suited for smaller venues, churches, performance spaces, or touring systems.

The GB4’s dual-mode operation allows it to function as both a front-of-house (FOH) or monitor mixer, with the flexibility to switch between the two modes with the push of a button. This versatile mixer also includes 7 buses (4 subgroups and left, right, and center main mixes), 8 auxiliary sends with flexible pre/post switching, and 4 mute groups for simultaneous muting of multiple channels.

A standout feature is the 7×4 matrix output system, which allows you to create separate sub-mixes of the left, right, center, and group outputs, giving you precise control over your mix. The rugged steel chassis with a sloping rear connector panel makes it easier to configure the system, while the integral power supply includes a link option for an external backup PSU, ensuring peace of mind during live events.

The GB4 also features LED meters and a limiter on the dedicated record outputs, simplifying stereo recording of the mix. The durable construction and high-end components make this mixer a reliable solution for professional sound engineers, offering both high performance and cost-effectiveness in a compact footprint.

Features:

  • 24 mono input channels with GB30 microphone preamps and 4-band GB30 EQ

  • Dual-mode operation for FOH or monitor mixer configuration

  • 7 buses (4 subgroups + left, right, and center main mixes)

  • 8 auxiliary sends with pre/post switching

  • 4 mute groups for efficient channel muting

  • 7×4 matrix output for creating separate sub-mixes

  • 4-segment LED meters and 12-segment output meters

  • Direct outputs on every mono channel for flexible routing

  • Dedicated limiter on record outputs for easy stereo recording

  • Rugged steel chassis with sloping rear connector panel for easy setup

  • External PSU link option for backup power supply

Specifications:

Attribute Value
Model Soundcraft GB4 (24 Channel)
Input Channels 24 Mono, 4 Stereo
Output Channels 4 Subgroup Outputs
Preamp and EQ GB30 Microphone Preamp and 4-Band EQ
Dual-Mode Operation Yes (FOH or Monitor Mixer)
Auxiliary Sends 8 Auxiliary Sends (Pre/Post Switching)
Mute Groups 4 Mute Groups
Matrix Output 7×4 Matrix (Left, Right, Center, and Group)
Direct Outputs Yes, on all mono channels
LED Meters 4-segment LED meters for each output, 12-segment output meters
Power Supply Internal PSU with External Backup PSU Link Option
Shipping Weight 27.50 kg
Shipping Dimensions 75.00 cm x 67.60 cm x 25.50 cm
