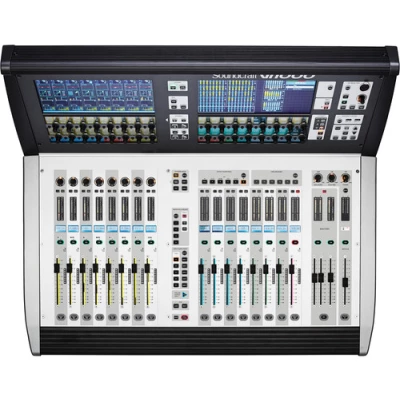

Soundcraft E947.300000 Vi1 Control Surface-16 Faders. 32in x 32out XLR

The Soundcraft Vi1 is a digital live sound mixing console. Soundcraft’s Vi Series is famous for powerful processing, user-friendly designs and pure sonic quality, and the Vi1 is no exception! It allows you to mix your show without maxing your budget! The 16-input fader control surface provides you with an intuitive digital mixing layout.

Soundcraft Vi Series now firmly established as a firm favourite digital desk on both the touring, broadcast and installed sound scenes, Soundcraft have taken this amazing platform to another, more affordable level with the release of the new Vi1 console.

Specifications

• Frequency Response – Local Mic input to Line output: +0/-1dB, 20Hz-20kHz
• AES/EBU In to AES/EBU Out: +0/-0.2dB, 20Hz-20kHz
• THD+Noise: 22Hz-22kHz
• THD & Noise – Local Mic In (min gain) to Local Line Out:
• THD & Noise – Local Mic In (max gain) to Local Line Out:
• Mic Input E.I.N:
• Residual Noise: -95dBu – Local line output; no inputs routed, Mix fader @0dB
• CMRR: 80dB @ 1kHz Local Mic Input
• Sampling Frequency: 48kHz
• Latency – Local Mic Input to Local Line output: < 2ms @48kHz
• AES/EBU Input Sample Rate: 32–108kHz (with SRC enabled)
• DSP Resolution: 40-bit floating point
• Internal Clock Accuracy: < +/- 50ppm
• Internal Clock Jitter: < +/- 5ns
• External Sync: BNC Wordclock
• Input & Output Levels – Mic Inputs: +23dBu max
• Input & Output Levels – Line Outputs: +22dBu max
• Input & Output Levels – Nominal Operating Level:0dBu (-18dBFS)
• Input & Output Impedances – Mic Inputs: 2k7Ω
• Input & Output Impedances – All other analogue Inputs: >10kΩ
• Input & Output Impedances – Line Outputs:
• Input & Output Impedances – AES/EBU Outputs: 110Ω
• Oscillator: 20Hz to 20kHz/Pink/White Noise, variable level
• Channel HP filter: 20Hz-600Hz, 18dB per octave
• Channel LP filter: 1kHz-20kHz, 18dB per octave
• EQ (Inputs and Bus Outputs) – HF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
• EQ (Inputs and Bus Outputs) – Hi-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
• EQ (Inputs and Bus Outputs) – Lo-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
• EQ (Inputs and Bus Outputs) – LF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
• Metering: Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
• Mains Voltage Operating Range: 90-264V, 47-63Hz, autoranging
• Mains Power Consumption: Control Surface – 100W
• Internal Mass Storage: 4GB Compact Flash Card
• Operating Temperature: 0°C – 45°C (32°F – 113°F)
• Relative Humidity: 0% – 90%, non-condensing Ta=40°C (104°F)
• Storage Temperature: -20°C – 60°C (-4°F – 140°F)
• Height: 394mm (15.5″)
• Width: 1034mm (40.7″)
• Depth: 711mm (28.0″)
• Weight: 37kg* (82lb)
