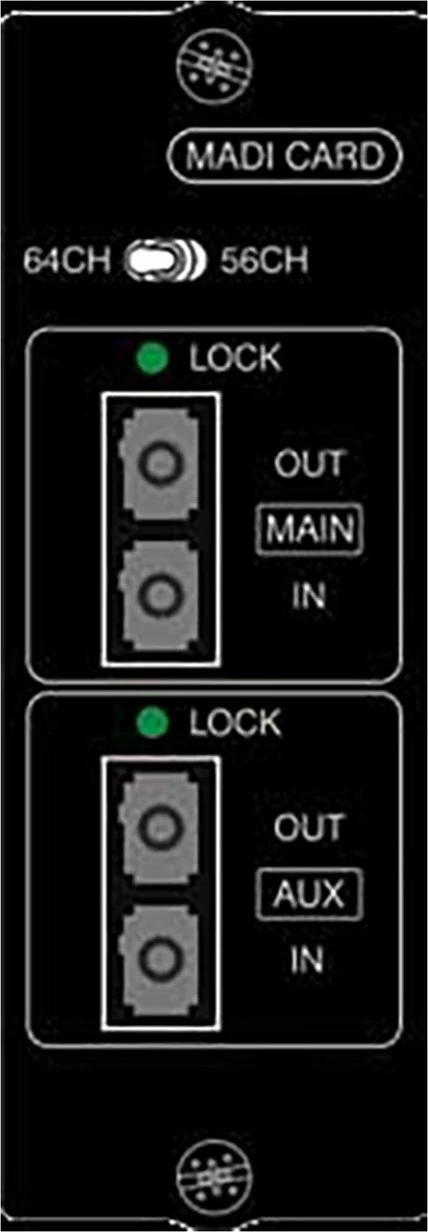

Soundcraft A520.001000SP Multimode MADI Card for Si Option Series Digital Mixers

Soundcraft Multimode MADI Card for Si Option Series Digital Mixers. The MADI I/O card can establish a 64-channel MADI input and output to a remote device such as stage rack, another console or Broadcast feed to an OB. Optical inputs and outputs are provided on SC connectors, the auxiliary interface can be used as a redundant link.

The MADI I/O card can establish a 64-channel MADI input and output to a remote device such as stage rack, another console or Broadcast feed to an OB.  Optical inputs and outputs are provided on SC connectors, the auxiliary interface can be used as a redundant link.

By adding option cards to the Si range of digital consoles, you can interface your desk with a multitude of analogue and digital systems, while expanding I/O count beyond that of the standard console configuration.  Routing to and from the option cards is achieved via the Patching functionality on the console.  Number of options cards that may be fitted per model are:

• 1 card Si Compact, Si Expression, Si1
• 2 cards Si Performer
• 4 cards Si1+, Si2, Si2+, Si3, Si3+
