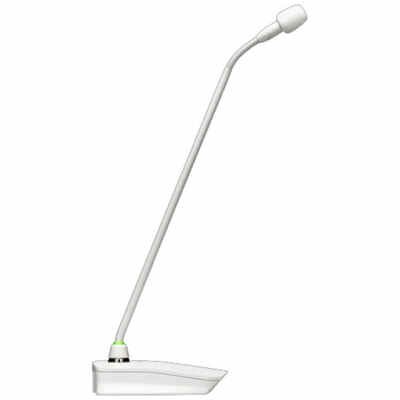

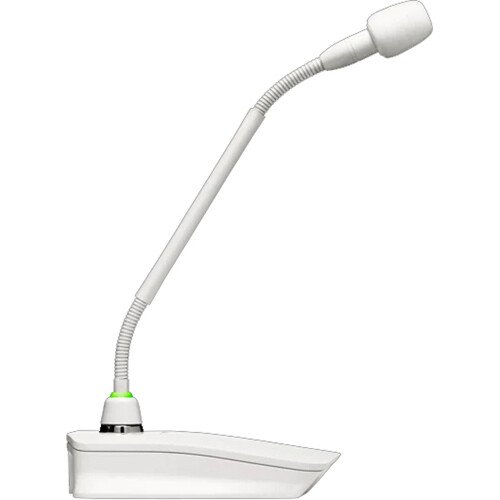

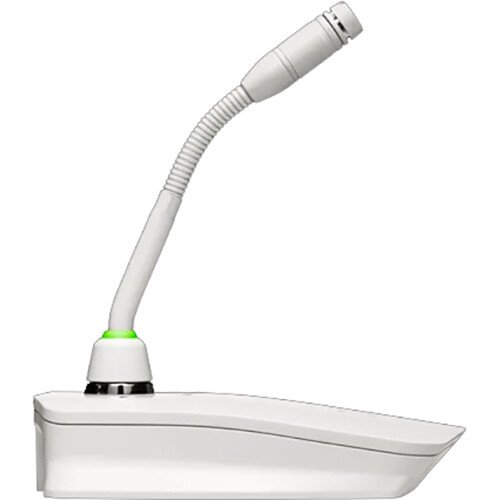

The white Shure ULXD8 is a digital wireless base transmitter for Shure Microflex gooseneck microphones (available separately) and is compatible with ULX-D receivers. The gooseneck design allows you to place the mic close to the speaker and above the table surface, away from paper rustling or other noises. Ideal for use where wired mics are impractical, this tabletop transmitter is designed for quick setup and tear down, and can be put away in a docking station (available separately) for storing and charging when the mic is not in use.
With rugged, yet lightweight plastic housing, the ULXD8 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it suitable for use in large meetings at conference and convention centers.
FEATURES
- For ULX-D Digital Wireless Systems
- Works with Shure Microflex Gooseneck Mic
- 0.25/10/20mW RF Output Power
- Configurable Mute Button with Status LED
- High-Pass Filter Reduces Noise
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 9 Hr with SB900A Rechargeable Battery
SPECIFICATIONS
Key Specs
| Wireless Technology |
Digital UHF
|
| Max Operating Range |
328.1′ / 100 m
|
| Included Transmitters |
1x Gooseneck Base
|
System
| Wireless Technology |
Digital UHF
|
| RF Frequency Band |
G51: 470–534 MHz
|
| Max Operating Range |
328.1′ / 100 m
|
| Latency |
< 3 ms
|
| Encryption |
AES 256
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
Transmitters
| Included Transmitters |
1x Gooseneck Base
|
| RF Output Power |
0.25 / 10 / 20 mW (Selectable)
|
| Antenna |
Internal
|
| Input Level |
Microphone
|
| Audio I/O |
1x Proprietary 6-Pin Female Input
|
| Bias/Plug-In & Phantom Power |
Bias/Plug-In Power is Unspecified by Manufacturer
No Phantom Support
|
| USB I/O |
1x USB-A (Charging, Host Connection)
|
| Muting |
Programmable Mute Switch
|
| Gain Range |
0 to 21 dB (3 dB Steps)
|
| Auto-Level/Gain |
No
|
| Sync Method |
IR
|
| Display |
Single-LED Indicators Only
|
Power
| Transmitter Battery Type |
2x AA (Included) or
1x Shure SB900A – 750 mAh (Not Included)
|
| Transmitter Battery Life |
Med.:
8 Hours (Alkaline)
Med.:
9 Hours (Lithium Shure SB900A)
|
Physical
| Environmental Resistance |
No
|
| Housing |
Plastic
|
| Dimensions |
3.1 x 1.6 x 5.4″ / 78 x 41 x 137 mm
|
| Weight |
10.3 oz / 292 g (with Batteries)
|
