Description

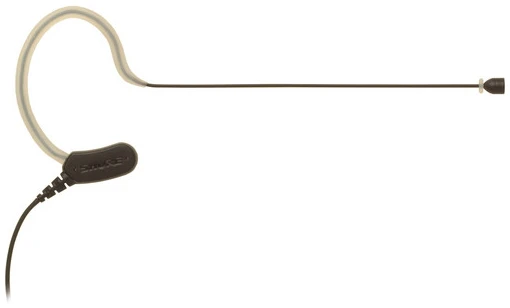

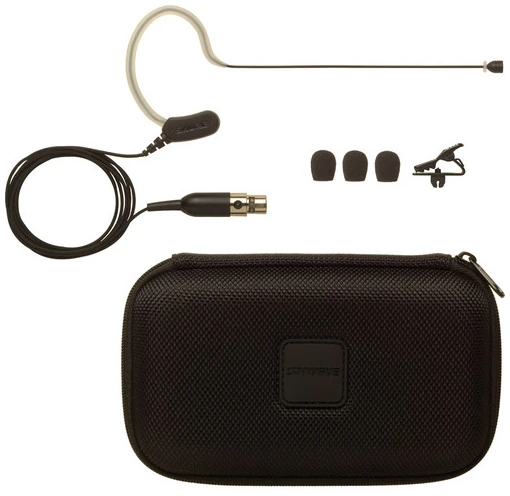

The Shure MX153 Earset Headworn Microphone is a subminiature, low-profile single ear-loop microphone with high gain before feedback, rich detail, and clarity. The MX153 features a TQG terminated connector for use with compatible Shure bodypack transmitters. The sleek single ear-loop frame features a subminiature capsule with an omnidirectional polar pattern for optimal sensitivity and clarity at all times. The MX153 is ideal for corporate presentations, houses of worship, A/V conferencing, and live sound reinforcement applications.





FEATURES

  • TQG Connector for Shure Bodypacks
  • Miniature Low-Profile Single-Ear Design
  • Omnidirectional Polar Pattern
  • High Gain Before Feedback
  • Exceptional Speech Clarity



SPECIFICATIONS

Key Specs
Polar Pattern
Omnidirectional
Power Sources
Plug-In Power
Color
Black



Microphone
Polar Pattern
Omnidirectional
Included Tone/Pattern Caps
No



Performance
Frequency Response
20 Hz to 20 kHz
Maximum SPL
107 dB (1 kHz, 1% THD, 1-Kilohm Load)
107 dB (1 kHz, 1% THD, 2.5-Kilohm Load)
Sensitivity
-41 dBV/Pa (1 kHz, Open Circuit Voltage)
Dynamic Range
73 dB (1 kHz, 1-Kilohm Load)
73 dB (1 kHz, 2.5-Kilohm Load)
Equivalent Noise Level
34 dB SPL (A-Weighted, Typical)



Connectivity
Analog Output
1x TA4F/Mini-XLR 4-Pin Female
Cable Length
3.9′ / 1.2 m



Power
Power Sources
Plug-In Power
Operating Voltage
1 to 5 V



Physical
Color
Black
Weight
0.7 oz / 19.76 g



Packaging Info
Package Weight
0.61 lb
Box Dimensions (LxWxH)
10.2 x 5.1 x 3.3″
