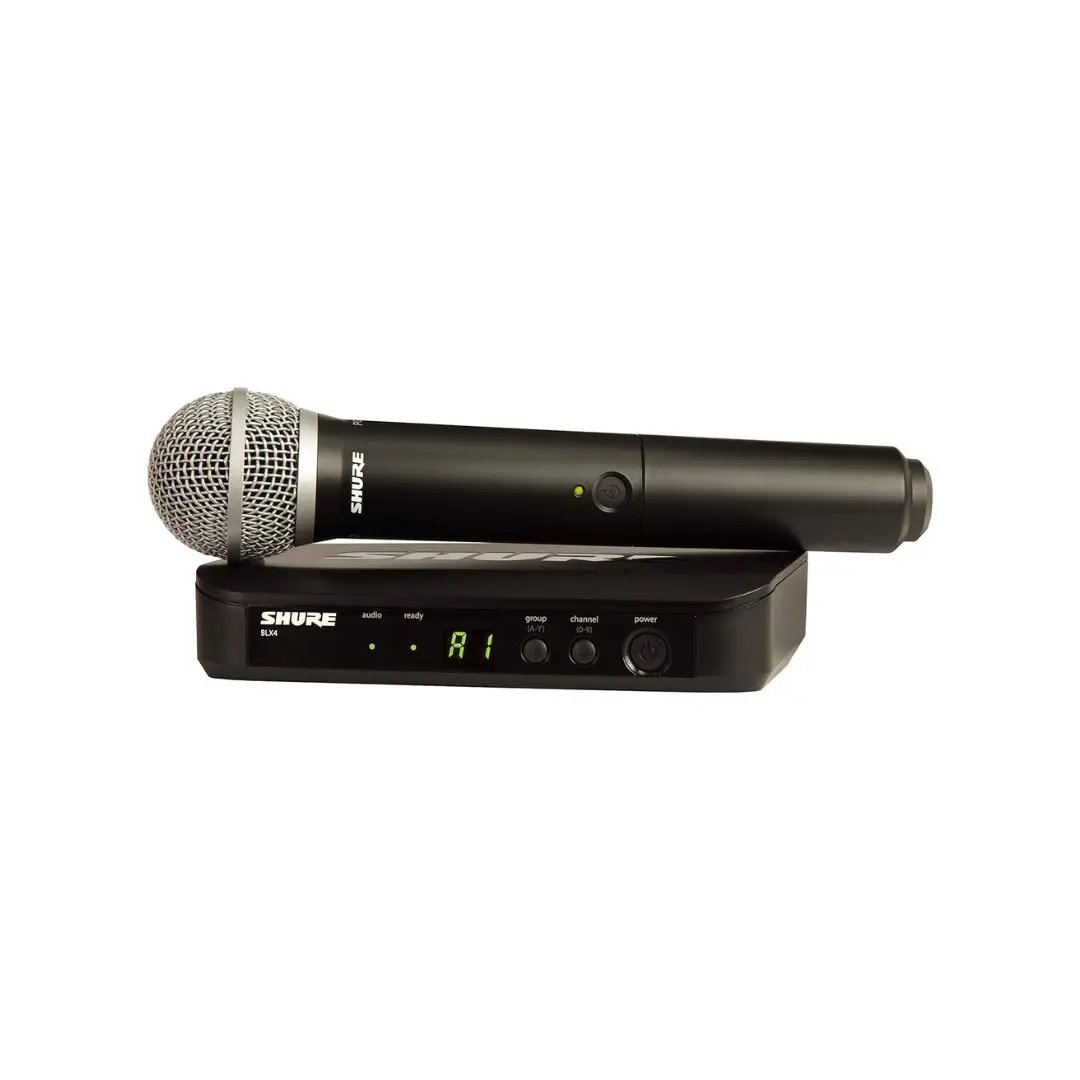

The Shure BLX24/PG58-H8E is a robust wireless vocal system designed for performers and presenters seeking reliable audio performance. It combines the professional-grade PG58 cardioid dynamic microphone capsule with the BLX4 tabletop receiver, offering up to 14 hours of battery life and a user-friendly setup.
FEATURES
- Professional Sound Quality: Equipped with the dynamic PG58 cardioid microphone capsule, delivering clear and natural vocal reproduction.
- Reliable Wireless Performance: Utilizes analog UHF wireless technology with antenna diversity, ensuring stable signal transmission.
- Extended Operating Range: Provides a maximum operating range of up to 300 feet (91.4 meters) in line-of-sight conditions.

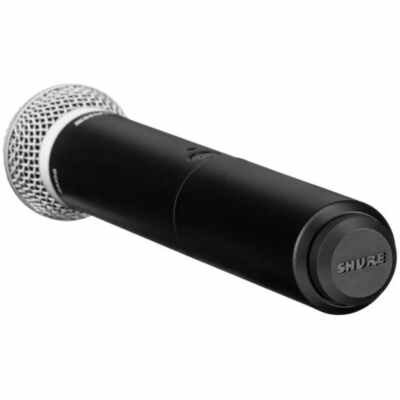

- Long Battery Life: The handheld transmitter operates for up to 14 hours on two AA batteries, minimizing downtime during performances.
- User-Friendly Setup: Features a QuickScan function for automatic frequency selection, simplifying the setup process.
- Versatile Audio Outputs: Includes both XLR and 1/4″ TS outputs on the receiver, compatible with a wide range of audio equipment.

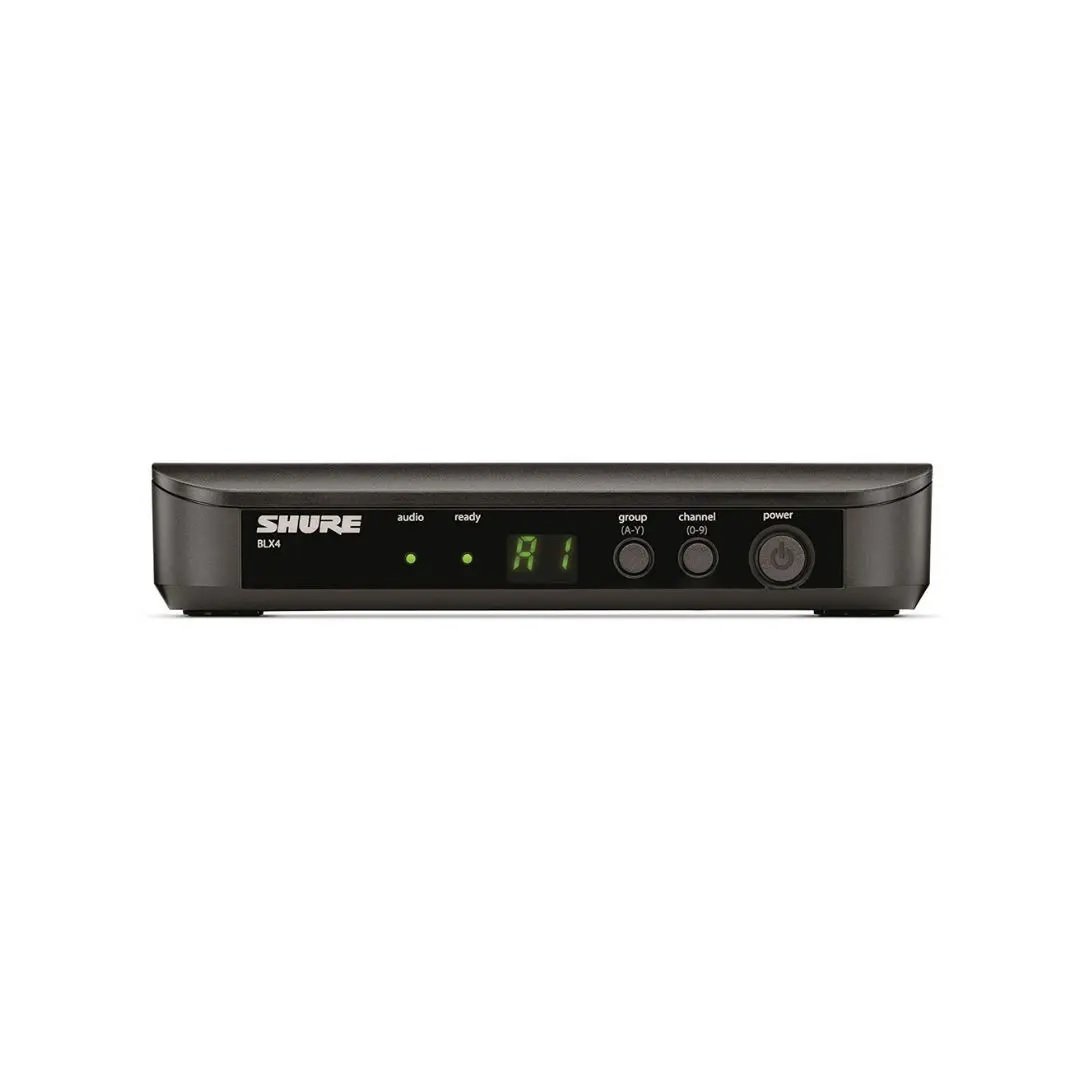

- Compact and Durable Design: The receiver is housed in a lightweight ABS plastic casing, suitable for both stationary and mobile setups.
- Multiple Frequency Options: Available in various frequency bands, including H8E (518–542 MHz), to comply with regional regulations
SPECIFICATIONS
Output Impedance | XLR connector |
Audio Output Level | (Ref. 33 kHz deviation with 1 kHz tone) |
RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
Dimensions | 40mm X 188mm X 103mm (H x W x D) |
Weight | >241g (8.5 oz.) |
Power Requirements | 12-15V DC @ 160mA supplied by external power supply (tip positive) |
Audio Input Level | Gain 0dB |
Gain Adjustment Range | 10 dB |
RF Transmitter Output | 10 mW, typical (varies by region) |
Dimensions | 224mm X 53mm dia. (8 7/8 X 2 1/8 in.) |
Weight | 218g (7.7 oz.) (without batteries) |
Power Requirements | 2 LR6 AA batteries, 1.5V, alkaline |
Battery Life | up to 14 hours (alkaline) |
