Description

The Sennheiser XSW-D VOCAL SET is an easy entry point into the world of wireless microphone audio for singers, vocalists, and presenters looking for a stage-ready system that’s both cost effective and simple to use. It puts world-renowned Sennheiser wireless sound quality in a miniaturized, plug-and-go, 1-button digital system that anyone can operate. Plug it in, power it up, and you’re immediately up and running, streamlining your setup so you can concentrate on delivering your performance with confidence.

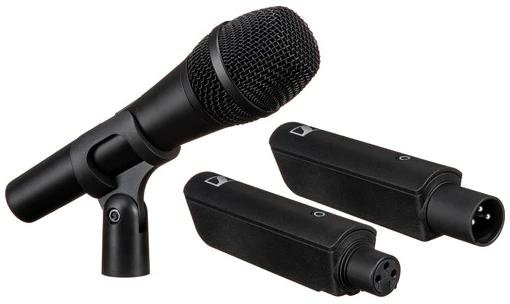

The set comes with the XS 1 handheld cardioid dynamic microphone along with a plug-on transmitter and an XLR-equipped plug-in receiver, both featuring lightweight, miniature housings. The system connects to a wide variety of professional audio gear including mixing boards and portable PA systems, allowing you to capture crisp-sounding vocals on stage, or in rehearsals, houses of worship, and event spaces.



FEATURES

  • For Live Vocals, Presentations

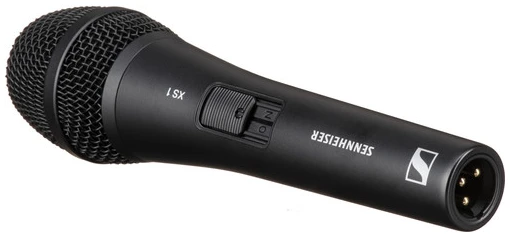

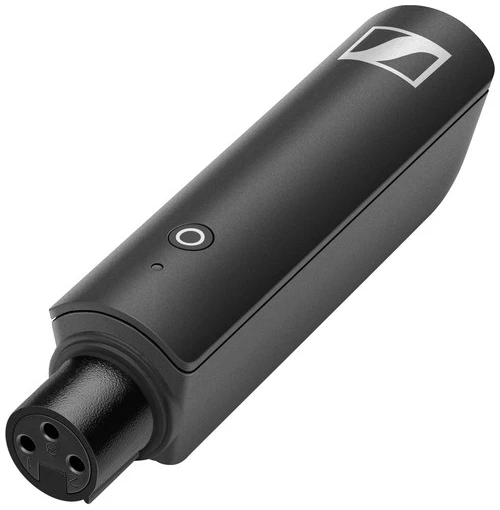

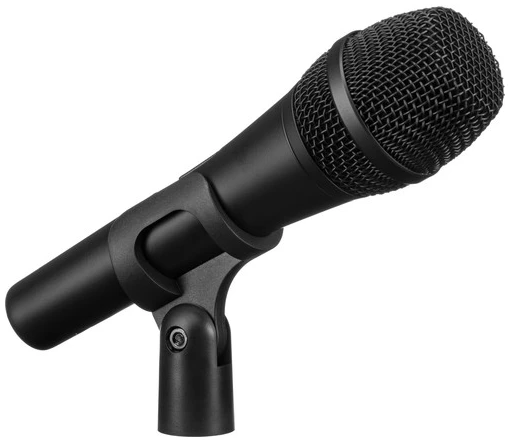

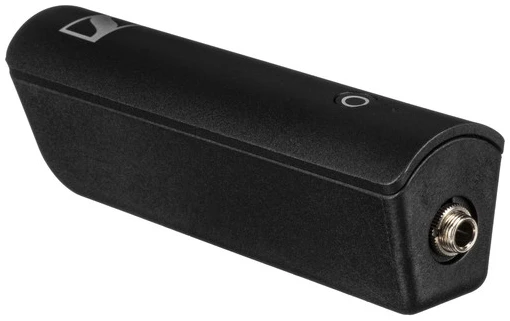

  • Plug-On Transmitter with Handheld Mic

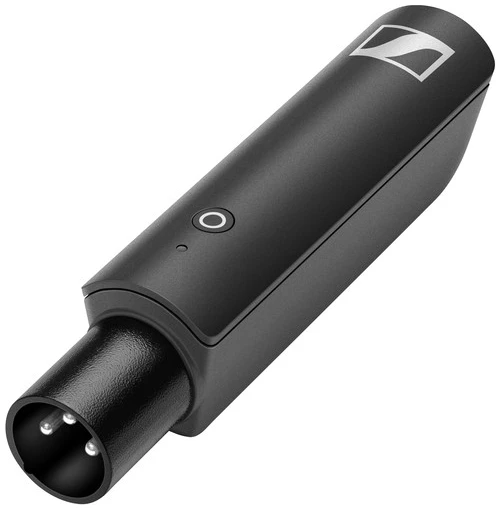

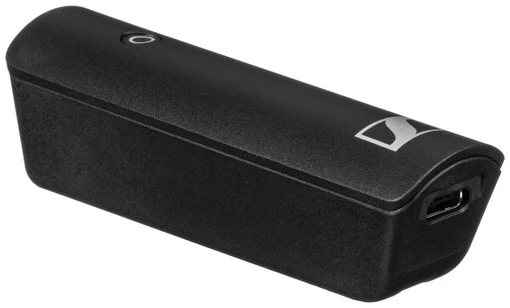

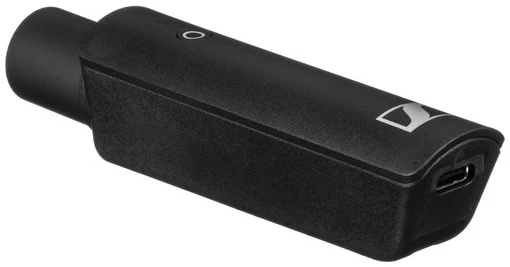

  • Plug-In Receiver
  • Protected Peer-to-Peer Connection
  • Easy to Use, 1-Button Operation
  • Lightweight Miniature Housing
  • USB-Rechargeable 5-Hour Batteries
  • 5 Systems at Once Max, Up to 250′ Range



SPECIFICATIONS

Key Specs
Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
Max Operating Range
250′ / 76.2 m (Line of Sight)
Receiver Type
1x Plug-In (XLR 3-Pin)
Number of Audio Channels
1
Included Transmitters
1x Plug-On Microphone
Microphone Type
1x Handheld



System
Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
Max Operating Range
250′ / 76.2 m (Line of Sight)
Max Transmitters per Band
5
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No



Receiver
Receiver Type
1x Plug-In (XLR 3-Pin)
Mounting Options
No
Antenna
1x Internal
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Balanced Mic Output
Network I/O
No
Word Clock I/O
No
USB/Lightning Connectivity
1x USB-C Female (Charging)
Frequency Response
80 Hz to 18 kHz
Display
Single-LED Indicators Only
Power Requirements
Battery



Transmitter
Included Transmitters
1x Plug-On Microphone
RF Output Power
10 mW
Antenna
Internal
Input Level
Microphone
Audio I/O
1x XLR 3-Pin Female Input
USB I/O
1x USB-C (Charging)
Muting
Off/On Switch
Auto-Level/Gain
No
Sync Method
2.4 GHz QPSK
Display
Single-LED Indicators Only



Microphone
Microphone Type
1x Handheld
Polar Pattern
Cardioid
Frequency Response
55 Hz to 16 kHz
Sensitivity
1.8 mV/Pa (at 1 kHz)
Output Connector
1x XLR 3-Pin Male
Color
Black



Power
Receiver Battery Type
1x Built-In Rechargeable – 850 mAh
Receiver Battery Life
5 Hours
Transmitter Battery Type
1x Built-In Rechargeable – 850 mAh
Transmitter Battery Life
5 Hours
Battery Charging Time
3 Hours



Physical
Dimensions
Receiver:
4.3 x 0.9 x 1.1″ / 109 x 24 x 28 mm
Plug-On Transmitter:
4 x 1.1 x 0.9″ / 101 x 27 x 24 mm
Microphone:
7.1 x 1.9″ / 180 x 48 mm
Weight
Receiver:
3.2 oz / 90 g
Transmitter:
3.2 oz / 90 g
Microphone:
11.6 oz / 330 g



Packaging Info
Package Weight
1.65 lb
Box Dimensions (LxWxH)
9.5 x 9 x 2.7″
