Easy to use all-in-one Wireless system for singers and presenters. Rely on a solid transmission with up to 10 compatible channels in a stable UHF band
Raise your voice. Go for XS Wireless 1 and rely on a solid Wireless transmission with up to 10 compatible channels in a stable UHF band. The XS Wireless 1 Vocal Set is an easy to use all-in-one Wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
FEATURES
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
SPECIFICATIONS
Technical Specification
- Dimensions: approx. 200 x 42 x 127 mm
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: cardioid
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Operating time: approx. 10 hrs
- Modulation: wideband FM
- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing: rugged ABS housing
- Dynamic range: dynamic
- Frequency: 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range: D: 794-806 MHz
- Sensitivity: < 3V at 52 dB(A)rms S/N
- Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.5 mV / Pa
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas
Receivers:
- Weight: approx. 340g
- Power supply: Receiver: 12 V DC nom. / 300 mA
- AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
- Microphone:
- Weight: approx. 245g
- Power supply: Microphone: 2 AA size batteries, 1.5 V
- AF frequency response: SKM 825: 80-14,000 Hz
What Is In The Box
- 1 receiver EM-XSW 1

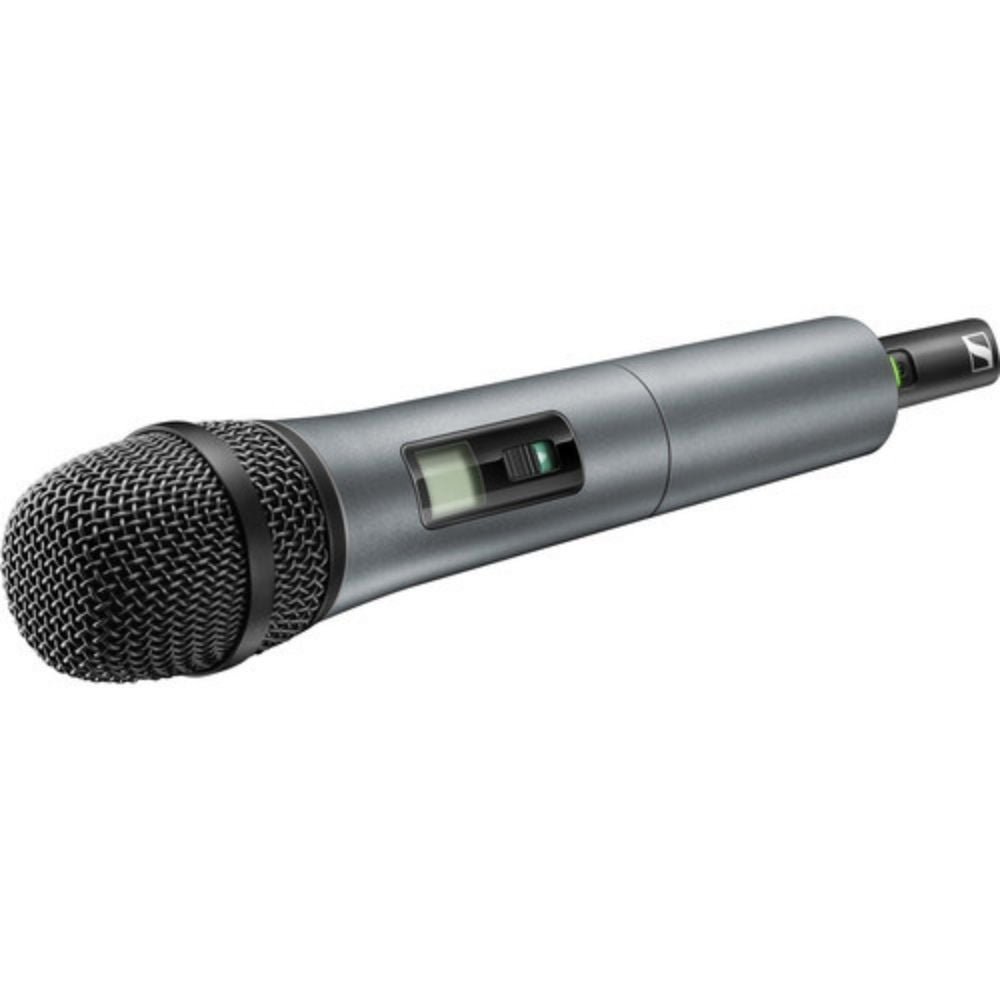

- 1 handheld transmitter SKM 825-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
