2-channel Wireless system for singers and presenters. Stable UHF band, built-in antennas and streamlined interface with great live sound.
XS Wireless 1 Dual is a 2-channel Wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser’s popular XS Wireless 1 series.
FEATURES
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- Antenna-switching 2-channel diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
SPECIFICATIONS
System
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 80 |
| Included Transmitters | 1 x Handheld |
| Diversity | Antenna Diversity |
| RF Frequency Band | A: 670 to 694 MHz |
| RF Bandwidth | Up to 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 100′ / 30.5 m |
| Max Transmitters per Band | 10 |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Encryption | None |
| Modulation | Wideband FM |

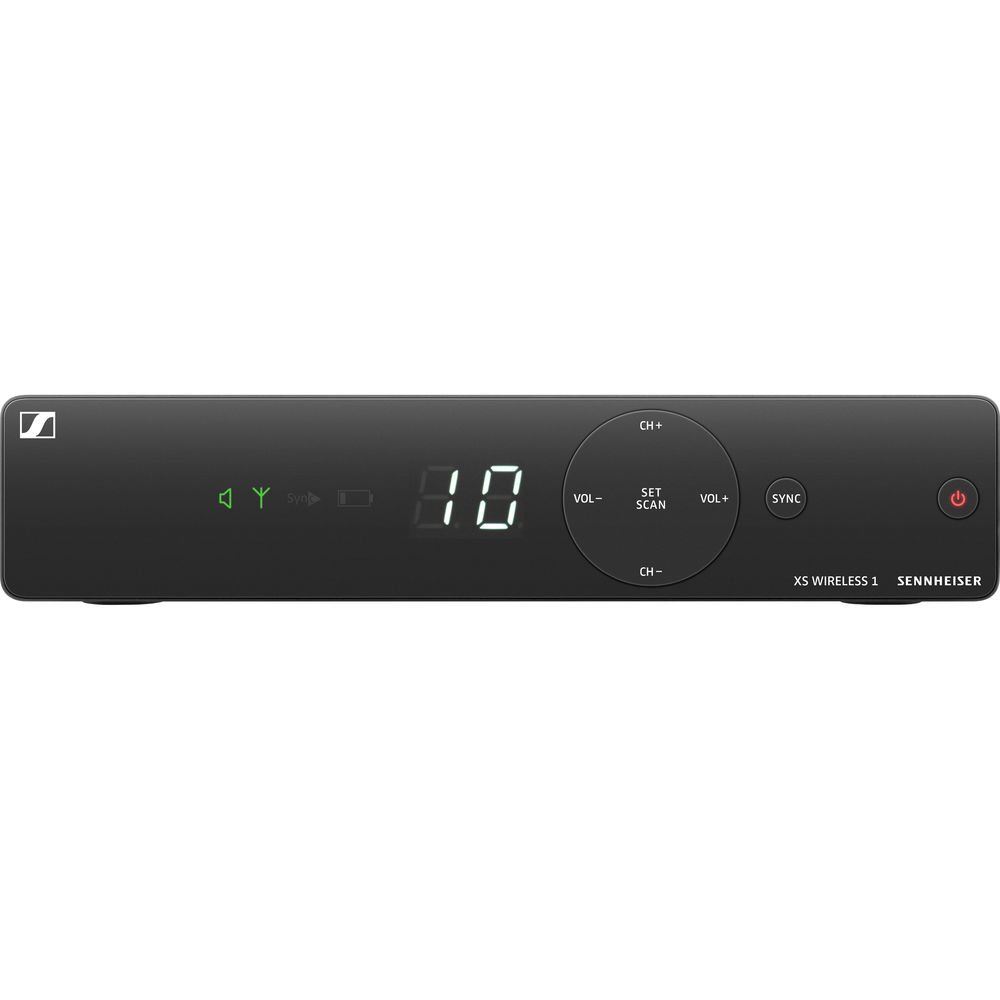

Receiver
| Receiver Type | Tabletop |
| Antenna | 2 x Internal |
| Number of Audio Channels | 1 |

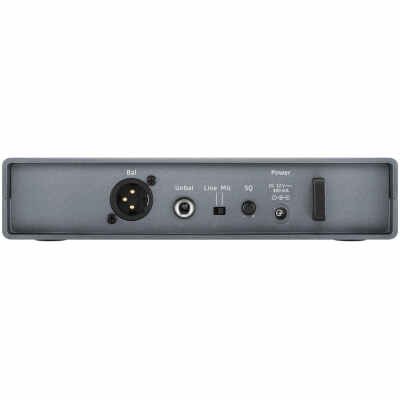

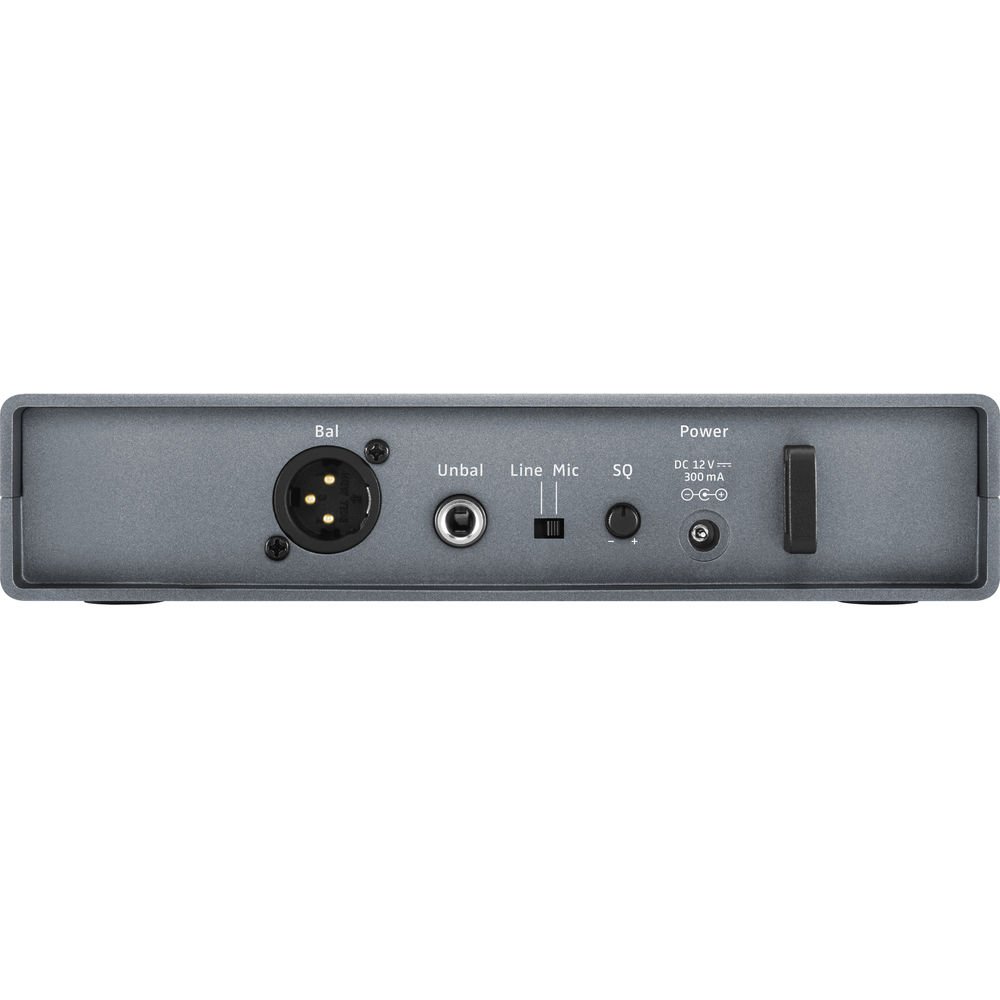

| Audio I/O | 1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4″ TS Unbalanced Mic/Line Output |
| Gain Range | 45 dB (5 dB Steps) |
| Audio Output Level | XLR Output: +12 dB (Balanced) 1/4″ Output: +6 dB (Unbalanced) |
| Frequency Response | 50 Hz to 16 kHz -3 dB |
| Network I/O | None |
| USB/Lightning Connectivity | None |
| RF Principle | Double Superheterodyne |
| Squelch | Adjustable, 3 to 28 dBmV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Display & Indicators | 1 x LCD (Channel, Frequency) |
| Housing | ABS |
| Dimensions | 7.9 x 1.7 x 5″ / 200 x 42 x 127 mm |
| Weight | 12 oz / 340 g |
Transmitter
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Pad | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | 0 to -30 dB (10 dB Steps) |
| Signal Processing | None |
| Frequency Response | 80 Hz to 14 kHz |
| Sync Method | 2.4 GHz QPSK |
| Antenna | Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 10 Hours |
| USB/Lightning I/O | None |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Power) |
| Housing | ABS |
| Dimensions | 10.2 x 2″ / 260 x 50 mm |
| Weight | 8.6 oz / 245 g |

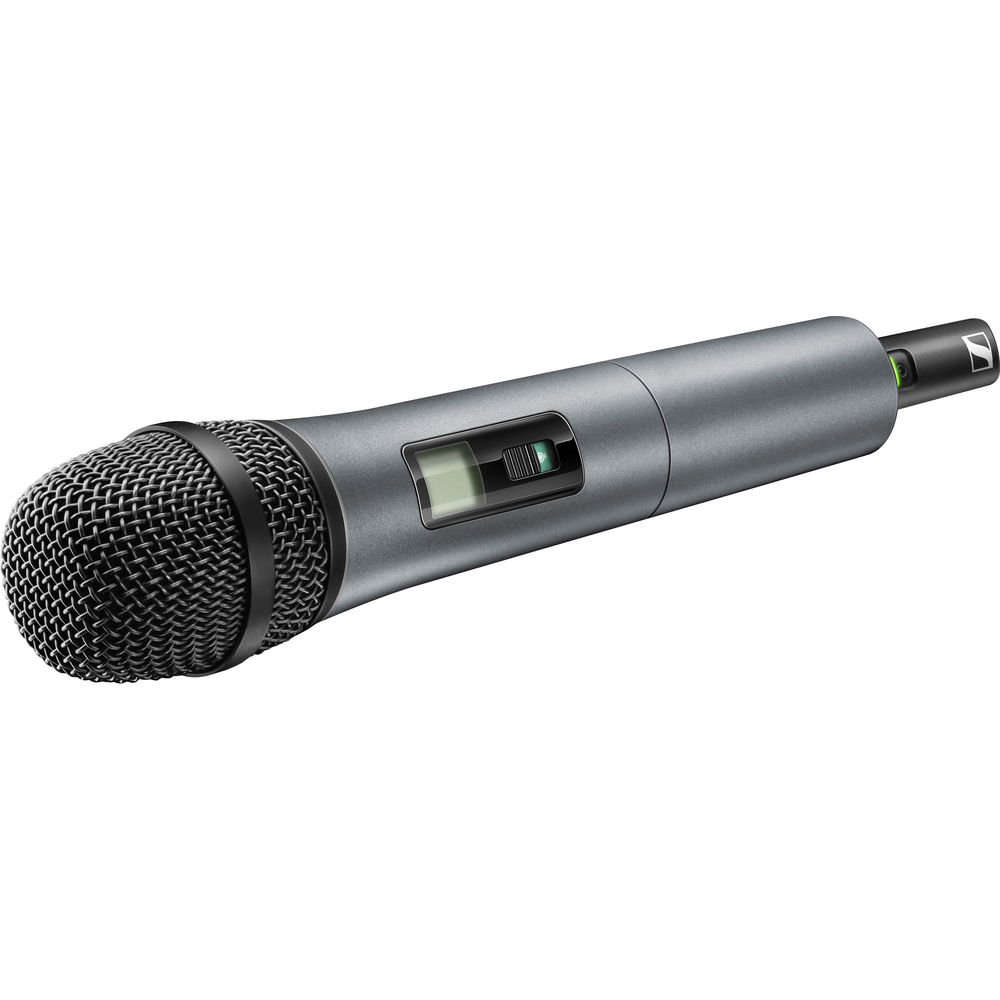

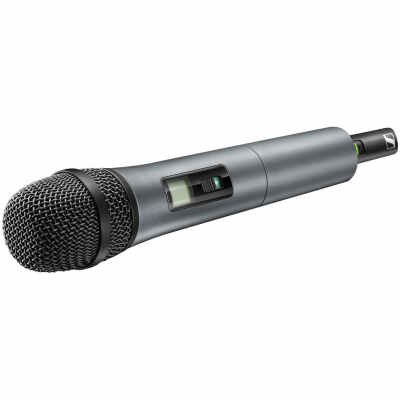

Microphone
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 80 Hz to 14 kHz |
| SNR | 103 dB A-Weighted |
| THD | < 0.9% |
| Sensitivity | 1.5 mV/Pa |
| Length | 10.2″ / 260 mm |
| Diameter | 2.0″ / 50 mm |
| Weight | 8.6 oz / 245 g |
Packaging Info
| Package Weight | 3.11 lb |
| Box Dimensions (LxWxH) | 13.8 x 12.7 x 3.5″ |
