Description

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX 835-S SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver and two handheld transmitter/mics with mute switch and MMD 835 cardioid capsules.



With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 87 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser’s Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.



FEATURES

  • For Two Presenters or Performers
  • 2 Handheld Transmitters, e-Ink Displays
  • 2 MMD 835 Dynamic Cardioid Mic Capsules
  • 2-Channel Diversity Receiver
  • Wide 87 MHz Bandwidth, 3480 Frequencies
  • 134 dB of Dynamic Range
  • AES-256 Encryption, RJ45 Networking
  • Set Up/Operate from Phone via Bluetooth
  • 12-Hour Rechargeable Battery / 8-Hour AA
  • Expandable to 293 Channels/330′ Range



SPECIFICATIONS

Key Specs
Diversity
Intelligent Switching Diversity
Max Operating Range
328.1′ / 100 m (Line of Sight)
Included Transmitters
2x Handheld



System
Diversity
Intelligent Switching Diversity
RF Frequency Band
R1-9: 520 to 607.8 MHz
Number of RF Channel Frequencies
3480
RF Channel Scanning
Auto-Scan
Max Operating Range
328.1′ / 100 m (Line of Sight)
Max Transmitters per Band
293
Dynamic Range
134 dB
Latency
1.9 ms
Encryption
AES 256
Mobile App Compatible
Yes: Android & iOS

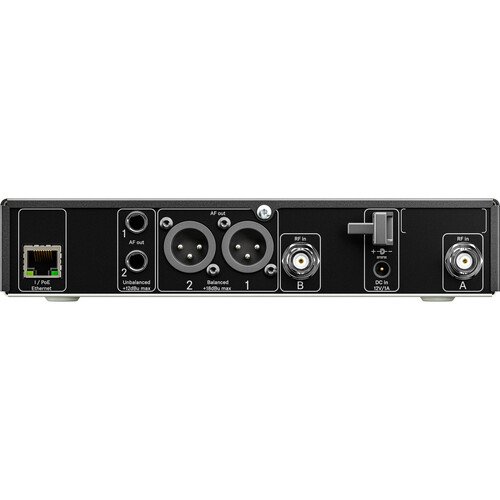

Receiver
Number of Audio Channels
2
Network I/O
1x RJ45
Word Clock I/O
No
USB/Lightning Connectivity
No
Frequency Response
20 Hz to 20 kHz ±3 dB
Power Requirements
AC/DC Power Adapter, PoE



Transmitter
Included Transmitters
2x Handheld
RF Output Power
10 mW (ERP)
10 mW (EIRP)
Muting
Mute Switch
Auto-Level/Gain
No
Frequency Response
20 Hz to 20 kHz -3 dB
Sync Method
Bluetooth



Microphone
Color
Black
Transmitter Battery Life
12 Hours (Sennheiser Battery Pack)
8 Hours (Alkaline)



Charging Case
AC/DC Power Adapter
11 to 13 VDC (Included)



Packaging Info
Package Weight
7.965 lb
Box Dimensions (LxWxH)
18.9 x 14.4 x 2.9″
