Description

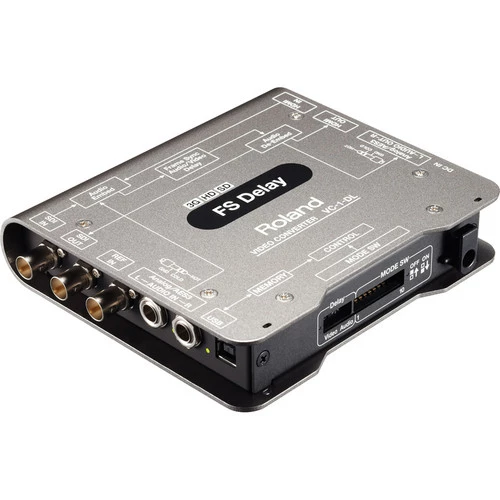

The VC-1-DL Bi-Directional SDI/HDMI Video Converter with Delay and Frame Sync from Roland provides high picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors that are sometimes found with other video converters. The VC-1-DL also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1-DL also supports both level A and B 3G-SDI, thereby enabling you to connect a variety of high quality SDI sources.

The VC-1-DL is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supported, thereby ensuring that high-quality audio signals can be maintained through the signal flow.



Features

Commitment to Picture Quality

The VC-1-DL faithfully converts the original source with no change in color or brightness. It supports super-blacks and super-whites, and converts video from cameras and other source devices with all the originality intact.

Faithful Reproduction of Video Characteristics

The VC-1-DL reproduces the video characteristics of the original source with no interlace artifacts, pixel shifting, or other conversion problems or signal errors. Jitter and return loss are at high levels as well.

Support for 1080p 3G-SDI

Video signals beyond 1080i can be input and output. The VC-1-DL supports both level A and level B 3G-SDI, thereby letting you connect a wide variety of 3G-SDI equipment. The 1080i, 720p, and SD signals are automatically accommodated on connection.

Support for Workflow Combining Audio and Video

Audio embedding and de-embedding features are provided (channel-selectable) in the VC-1-DL. The audio embedding feature lets you place audio signals from a different source into the video output. For example, when converting an SDI signal to HDMI, you can use the audio embedding feature to output high-quality audio from any of the SDI audio channels. Digital (AES/EBU) input and output are also supported, letting you exchange sound between professional audio equipment with no degradation in signal. Analog input and output is supported as well, making it possible to both monitor and input audio to/from a wide variety of equipment such as an audio console.

Support for HDCP HDMI Signals

The VC-1-DL can take HDCP-applied HDMI input signals, apply frame synchronization or delay, and produce HDCP-applied HDMI output. This allows the VC-1-DL to be used in any HDCP-based system with no worries.


Specifications


Input SDI Connector: 1 x BNC type
HDMI Connector: 1 x Type A (19 pins)
Analog Audio Connector: 1/4″ TRS phone type (balanced) x 1 pair (L/R)
Digital Audio Connector: 1/4″ TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector)
Reference Connector: 1 x BNC type
Reference Signal Format: Black Burst, Bi-level, Tri-level
Reference Impedance: 75 Ω
Processing Video delay (0 to 4.5 frames)
Audio delay (0 to 4.5 frames)
Audio embedding
Audio de-embedding
Output SDI Connector: 1 x BNC type
HDMI Connector: 1 x Type A (19 pins)
Analog Audio Connector: 1/4″ TRS phone type (balanced) x 1 pair (L/R)
Digital Audio Connector: 1/4″ TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector)
Input Format SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5)
Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel
Output Format SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5)
SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-D)
HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel
Level Analog Audio Input: 4 dBu
Analog Audio Maximum Input: 24 dBu
Analog Audio Output: 4 dBu
Impedance Analog Audio Input: 110 Ω
Analog Audio Output: 600 Ω
Digital Audio Output: 110 Ω
Signal Format Digital Audio Output: AES3, 16/24 bits, 32/48 kHz, 2 channel
USB 1 x USB Type B (Hi-Speed USB)
Power Supply 9 VDC
Power Consumption 8 W
Operation Temperature 32 to 104?F (0 to 40?C)
Dimensions 5.93 x 5.12 x 1.18″ (15.06 x 13.00 x 2.99 cm)
Weight 1.10 lb (0.50 kg)
