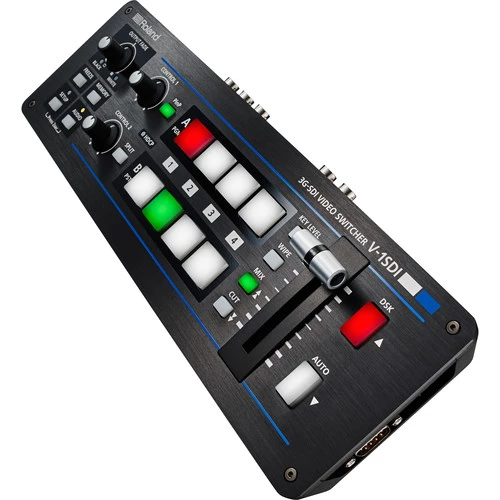

Roland Professional V-1SDI 4-Channles HD SDI/Hdmi Video Switcher, 720P/1080I/1080P Format

Roland Professional V-1SDI 4-Channles HD SDI/Hdmi Video Switcher, 720P/1080I/1080P Format

Name: Roland Professional V-1SDI 4-Channles HD SDI/Hdmi Video Switcher, 720P/1080I/1080P Format
Brand: Roland
SKU: V-1SDI
Price: 8151.43 AED
Availability: InStock

Brand :

Sku: V-1SDI

AED 8,151.43 Exc VAT

Available in stock

Features

Roland's V-1SDI 4-Channel HD Video Switcher supports HD-only video signals over three of its inputs, and can support SD, HD, and computer video formats up to 1920 x 1200 (WUXGA) at 60 Hz on its fourth. It supports progressive and interlaced material, internally converting the interlaced footage to progressive for processing. Featuring a preview, program, and multiview output, you can easily monitor all your inputs at once on the multiview while isolating your preview and program screens.The HDMI inputs and multiview output are HDCP compliant, while the SDI inputs and SDI preview and program outputs support SMPTE 424M (SMPTE 425M-AB), 292M, and 259M-C. You can control the unit via the built-in RS-232 port, or via a PC using the USB connection. Eight memory functions enable you to recall specific setups, which makes it easier to get up and running when the switcher is shared among different productions. Built-in features include image freeze and output fades.

EAN: 761294509357

Compare Wishlist

Category: Audio-video Switchers Brand: Roland Professional

Description

Roland’s V-1SDI 4-Channel HD Video Switcher supports HD-only video signals over three of its inputs, and can support SD, HD, and computer video formats up to 1920 x 1200 (WUXGA) at 60 Hz on its fourth. It supports progressive and interlaced material, internally converting the interlaced footage to progressive for processing. Featuring a preview, program, and multiview output, you can easily monitor all your inputs at once on the multiview while isolating your preview and program screens.

The HDMI inputs and multiview output are HDCP compliant, while the SDI inputs and SDI preview and program outputs support SMPTE 424M (SMPTE 425M-AB), 292M, and 259M-C. You can control the unit via the built-in RS-232 port, or via a PC using the USB connection. Eight memory functions enable you to recall specific setups, which makes it easier to get up and running when the switcher is shared among different productions. Built-in features include image freeze and output fades.

Features

Video Input

The switcher handles four video inputs, up to three SDI and up to two HDMI. Inputs 1 to 3 are SDI, with input 3 shared between SDI and HDMI with support for HD video formats. Input 4 is HDMI-only and, in addition to supporting HD video, also supports SD and computer formats.

Audio Input

The switcher supports analog audio on as well as mic input with or without plug-in power.

Video Effects

Transition: Cut, Mix (Dissolve/Fam/Nam/Mosaic), Wipe (30 types)
Composition: PiP, Split, Quad, DSK (Luminance key, Chroma key)

Audio Effects

EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

Multiviewer

This output can display all active inputs on the same screen via the HDMI output.

Functions

The built-in memory function allows the memorization and convenient recall of panel settings, such as effect assignment to each button. The memory stores up to eight configurations and keeps stored settings, even with the power off
Freeze video input
Fade audio output
Fade video to white or black

HDCP

The V-1SDI HDMI inputs and outputs are HDCP compliant.

Specification

Processing

Video Processing	8-bit 4:2:2 (YPbPr)
Audio Processing	24-bit at 48 kHz

Input Signal Formats

SDI

Inputs 1 to 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C

HDMI

Input 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50HDCP supportedInput 4
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
480p: 59.94
576p: 50
480i: 59.94
576i: 50
WUXGA: 1920 x 1200 @ 60 Hz
UXGA: 1600 x 1200 @ 60 Hz
SXGA+: 1400 x 1050 @ 60 Hz
FWXGA: 1366 x 768 @ 60 Hz
SXGA: 1280 x 1024 @ 60 Hz
WXGA: 1280 x 768 @ 60 Hz
XGA: 1024 x 768 @ 60 Hz
SVGA: 800 x 600 @ 60 Hz
VGA: 640 x 480 @ 60 Hz

HDCP supported

Output Signal Formats

Program & Preview Output	SDI 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
MultiView	HDMI HDCP supported
Input Level	Audio In: -10 dBu (Maximum: +8 dBu) Mic: -41 to -13 dBu (Maximum: -1 dBu)
Output Level	Audio Out: -10 dBu (Maximum: +8 dBu) Phones: 92 mW + 92 mW (32 Ohms)

Connectors

Input	Video 3 x SDI, BNC 2 x HDMI Type-AAudio Analog: RCA phono Mic: Stereo mini jack
Output	Program 1 x SDI, BNCPreview 1 x SDI, BNCMultiview 1 x HDMI Type-A Audio Analog: RCA phono Headphones: Stereo mini jack
Remote	USB Type-B (for remote control from PC) RS-232: DB-9
Audio Impedance	Input Audio: 15 kOhms Mic: 10 kOhmsOutput Audio: 1 kOhms Phones: 10 Ohms

General

Power Supply (AC)	AC adapter
Current Draw	2.1 A
Power Consumption	25 W
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	12.3 x 4.3 x 2.3″ / 31.3 x 10.8 x 5.9 cm
Weight	2.6 lb / 1.2 kg (excluding AC adapter)
