The black Roland AX-Edge is a keytar synthesizer offering customizable looks and expressive playability for keyboardists on stage and in the studio. It features 49 full-sized, velocity-sensitive keys with channel aftertouch, over 500 preset tones, split and layer modes, and versatile controls including a modulation bar, a pressure-sensitive pitch ribbon, and an assignable knob. Dedicated buttons provide immediate access to the arpeggiator, song player, and programs such as leads, bases, brass, and the vocoder, which utilizes a 1/4″ mic input with adjustable gain.
Enhance your sounds with the built-in effects, EQ, and compression, and edit parameters wirelessly via the downloadable AX-Edge Editor iOS/Android app, and hook up an expression pedal (available separately) to the 1/4″ pedal input for hands-free parameter adjustment. Connect the AX-Edge as a traditional controller or sound module using the MIDI I/O or USB Type-B computer port. Alternatively, utilize its Bluetooth MIDI capability to trigger a compatible virtual instrument. 1/4″ main and headphone outputs allow easy routing to headphones and a mixing console or wireless transmitter.
Features
Customizable Looks
Versatile Tones
Convenient Controls
Informative Displays
Specifications
Keyboard | 49 full-sized keys with velocity and channel aftertouch |
Polyphony | Not specified by manufacturer |
Multitimbral | 4 parts plus Vocoder part |
Synthesis Method | Synth-EX |
Presets | User Programs: 320 Preset Tones: >500 |
User Memory | User Tones: 256 |
Effects | Part Multi-Effects: 79 types Program Multi-Effects (IFX): 79 types Chorus: 8 types Reverb: 6 types Part EQ Master EQ Master compressor Vocoder |
Sequencer | None |
Controllers | Ribbon controller Modulation bar Assignable control knob Master volume knob 7 x assignable buttons Pedal Aftertouch |
Expansion Slots | None |
Bluetooth | MIDI: Bluetooth version 4.1 (Bluetooth LE) |
Inputs | 1 x 1/4″ microphone input |
Outputs | 2 x 1/4″ main outputs 1 x 1/4″ stereo headphone output |
MIDI | 1 x MIDI 5-pin input 1 x MIDI 5-pin output |
USB | 1 x USB Type-A memory port 1 x USB Type-B computer port (supports USB MIDI) |
Control Input | 1 x 1/4″ pedal input |
Internal Storage | Not specified by manufacturer |
External Storage | USB flash drive |
Display | Two-line LCD with 16 characters per line Segment LED (3 x 7) |
Current Draw | 1000 mA |
Power Requirements | 9 VDC via AC adapter or eight rechargeable NiMH (AA, HR6) batteries |
Battery Life (approx.) | Up to 4 hours *Carbon-zinc or alkaline batteries cannot be used |

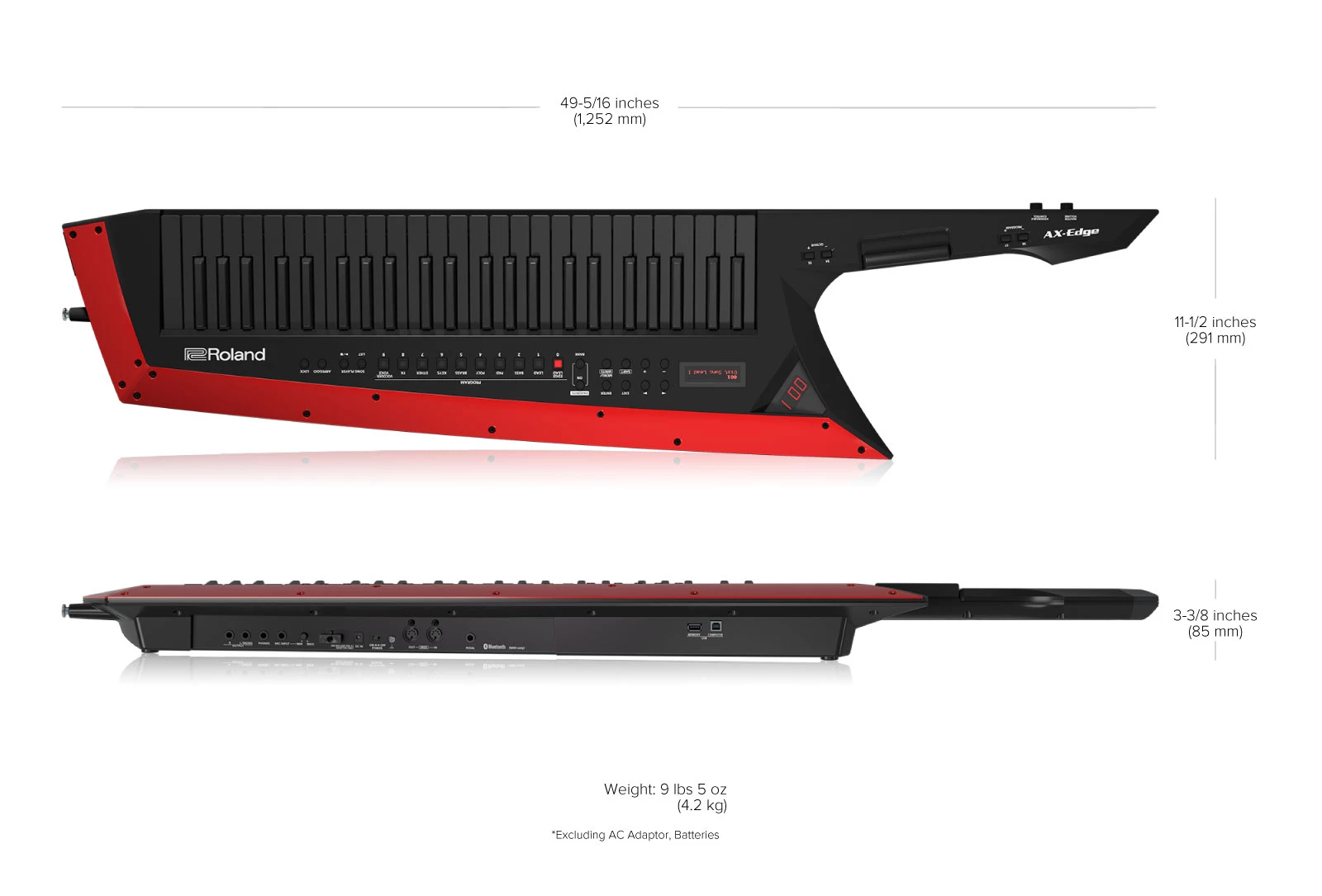

Dimensions (W x D x H) | 49.3 x 11.5 x 3.3″ / 125.2 x 29.1 x 8.5 cm |
Weight | 9.3 lb / 4.2 kg (excluding AC adapter and batteries) |
Specialties | Favorite Song player Arpeggio Vocoder MIDI master keyboard Sound edit |
