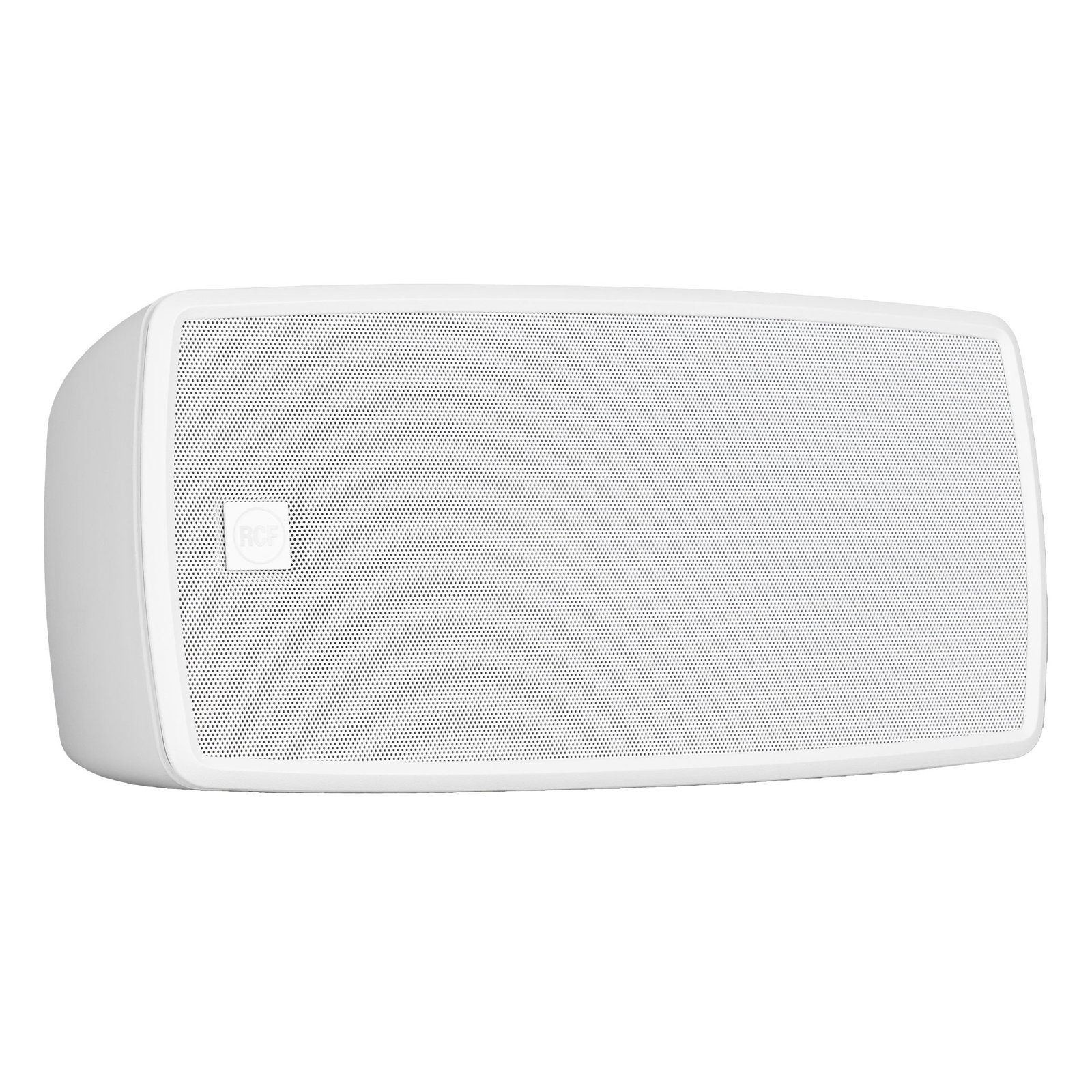

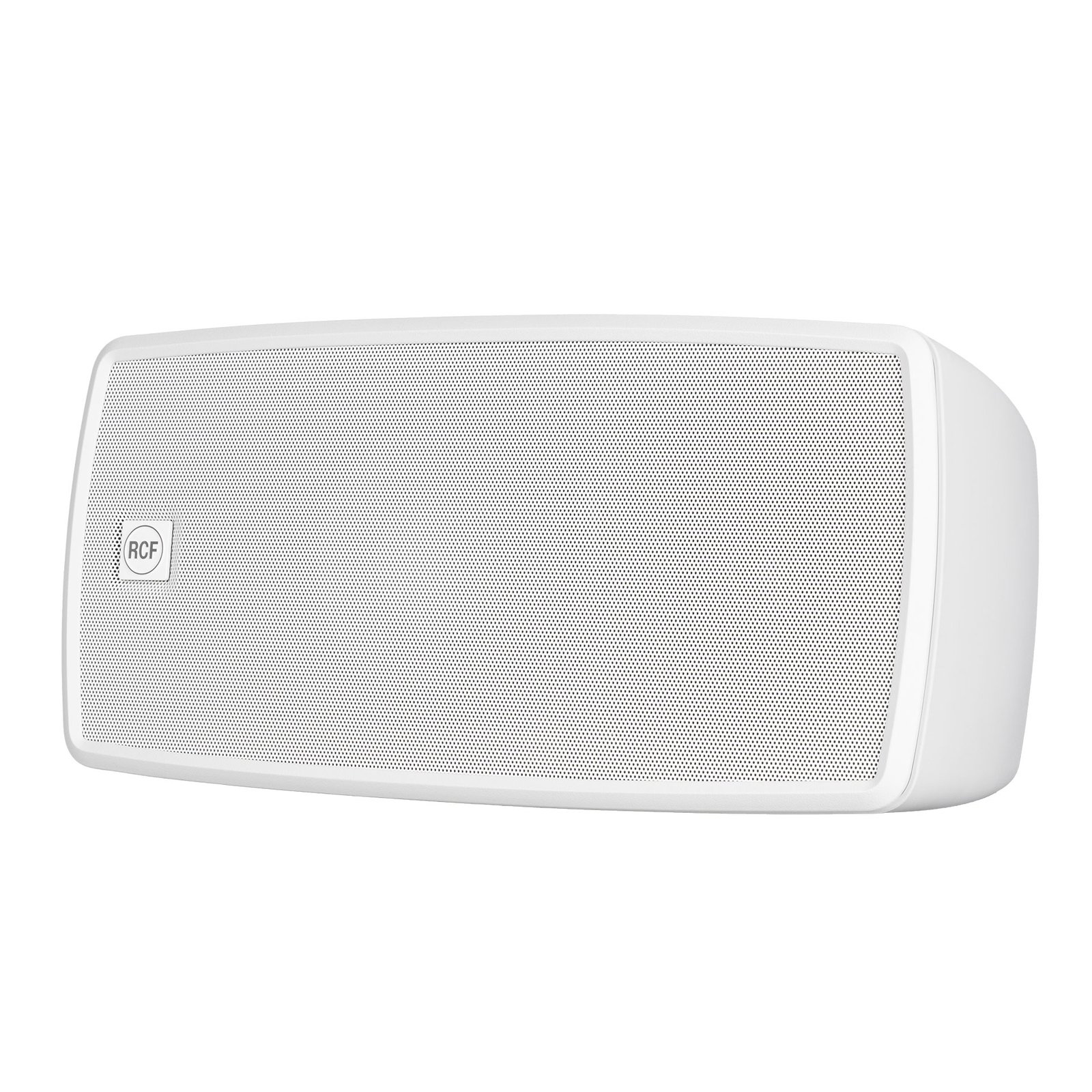

The WMR 60T W is a versatile two-way wall-mount speaker designed for both background and foreground music applications in commercial and hospitality environments. Its elegant white cabinet blends seamlessly with modern interiors. Featuring high-performance transducers and a wide 140° x 100° dispersion, it ensures excellent sound coverage and clarity. The integrated connection board within the wall bracket allows fast, tool-free installation, enhancing setup efficiency while maintaining a clean appearance.
Features
80W RMS power handling
114 dB maximum sound pressure level
70 ÷ 20000 Hz frequency response
140° x 100° wide coverage angle
6.5″ high-power woofer
1″ neodymium dome tweeter
Self-extinguishing ABS plastic cabinet with steel grille
Integrated connection board in wall bracket
4-pole Euroblock input and link output
IP55 protection rating
Specifications
| Frequency Response (-10dB) | 70 Hz ÷ 20000 Hz |
| Max SPL @ 1m | 114 dB |
| Horizontal Coverage Angle | 140° |
| Vertical Coverage Angle | 100° |
| Sensitivity | 89 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 80 W RMS |
| Peak Power Handling | 320 W PEAK |
| Protection | Bulb lamp |
| Crossover Frequency | 2500 Hz |
| Recommended Amplifiers | DMA 504, DMA 162, DMA 82, DMA 162P |
| Tweeter | 1 x 1.0″ neo, 1.0″ v.c |
| Woofer | 1 x 6.5″, 1.2″ v.c |
| Input Connectors | Euroblock |
| Output Connectors | Euroblock |
| Voltage Transformer | 70/100 V |
| Power Selection 1 | 80 W – 125 ohm |
| Power Selection 2 | 40 W – 250 ohm |
| Power Selection 3 | 20 W – 500 ohm |
| Power Selection 4 | 10 W – 1000 ohm |
| Power Selection 5 | 5 W – 2000 ohm |
| IP Protection Grade | IP55 |
| Safety Compliance | CE compliant, UL 1480A |
| Cabinet Material | ABS |
| Grille | Steel |
| Color | White – RAL 9003 |
| Height | 403 mm / 15.87 inches |
| Width | 193 mm / 7.6 inches |
| Depth | 293 mm / 11.54 inches |
| Weight | 6 kg / 13.23 lbs |
| Package Height | 298 mm / 11.73 inches |
| Package Width | 468 mm / 18.43 inches |
| Package Depth | 338 mm / 13.31 inches |
| Package Weight | 7.5 kg / 16.53 lbs |
