Description

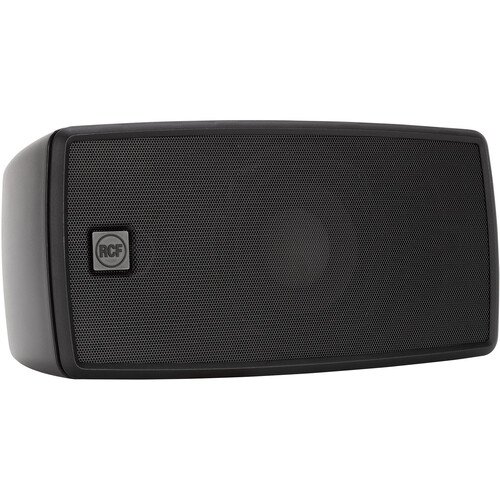

The WMR 50T is a high-performance, two-way wall-mounted speaker engineered for a wide variety of business and hospitality applications. With a 40W RMS power handling and a maximum SPL of 110 dB, it delivers exceptional sound clarity and volume within a compact footprint. Its wide frequency response (80 Hz – 20,000 Hz) and broad conical coverage angle (140° horizontal x 100° vertical) make it suitable for background and foreground music, as well as speech reproduction.

Built with a self-extinguishing ABS plastic cabinet and aluminum front grille, the WMR 50T is IP55 rated, making it suitable for indoor and sheltered outdoor installations. Its sleek design complements modern interiors, while the integrated wall-mount bracket simplifies installation. The connection panel is embedded into the mount for convenient access and a clean finish. It features a Euroblock connector for easy input/output and supports 70V/100V line distribution with multiple power tap settings.

Perfect for corporate spaces, bars, restaurants, malls, and leisure facilities, the WMR 50T offers uncompromising performance and reliability for distributed audio systems.



Features



  • 40W RMS power handling

  • 110 dB max SPL

  • 80 Hz – 20,000 Hz frequency response

  • Wide 140° x 100° constant directivity coverage

  • 5″ high-power woofer and 1″ neodymium dome tweeter

  • ABS self-extinguishing plastic cabinet with steel grille

  • Euroblock connectors for input/output

  • IP55-rated for dust and water resistance

  • 70V/100V line transformer with multiple power taps

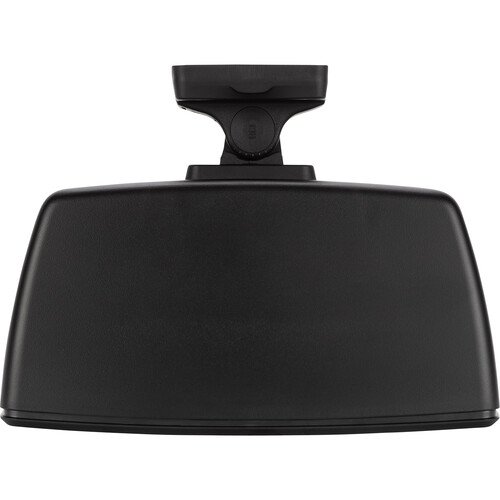

  • Integrated wall-mount bracket for quick installation



Specifications



Frequency Response 80 Hz – 20,000 Hz
Max SPL @ 1m 110 dB
System Sensitivity 88 dB
Horizontal Coverage Angle 140°
Vertical Coverage Angle 100°
Power Handling 40 W RMS / 160 W Peak
Nominal Impedance 8 ohm
Crossover Frequency 2500 Hz
Protections Bulb lamp
Tweeter 1 x 1.0″ neodymium dome, 1.0″ v.c.
Woofer 1 x 5.0″, 1.0″ v.c.
Input Connectors Euroblock
Output Connectors Euroblock
Constant Voltage Options 70/100 V (2.5 W to 40 W taps)
IP Protection Grade IP55
Safety Compliance CE compliant, UL 1480A
Cabinet Material ABS (self-extinguishing)
Grille Steel
Mounting Hardware Included wall-mount bracket
Colors Black (RAL 9005), White (RAL 9003)
Height 349 mm / 13.74 inches
Width 170 mm / 6.69 inches
Depth 253 mm / 9.96 inches
Weight 4.2 kg / 9.26 lbs
Package Height 278 mm / 10.94 inches
Package Width 418 mm / 16.46 inches
Package Depth 308 mm / 12.13 inches
Package Weight 5.3 kg / 11.68 lbs
Part Numbers 13100051 (Black), 13100074 (White)
EAN Codes 8024530017460 (Black), 8024530020033 (White)
