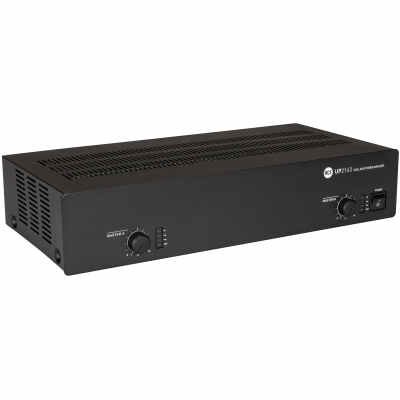

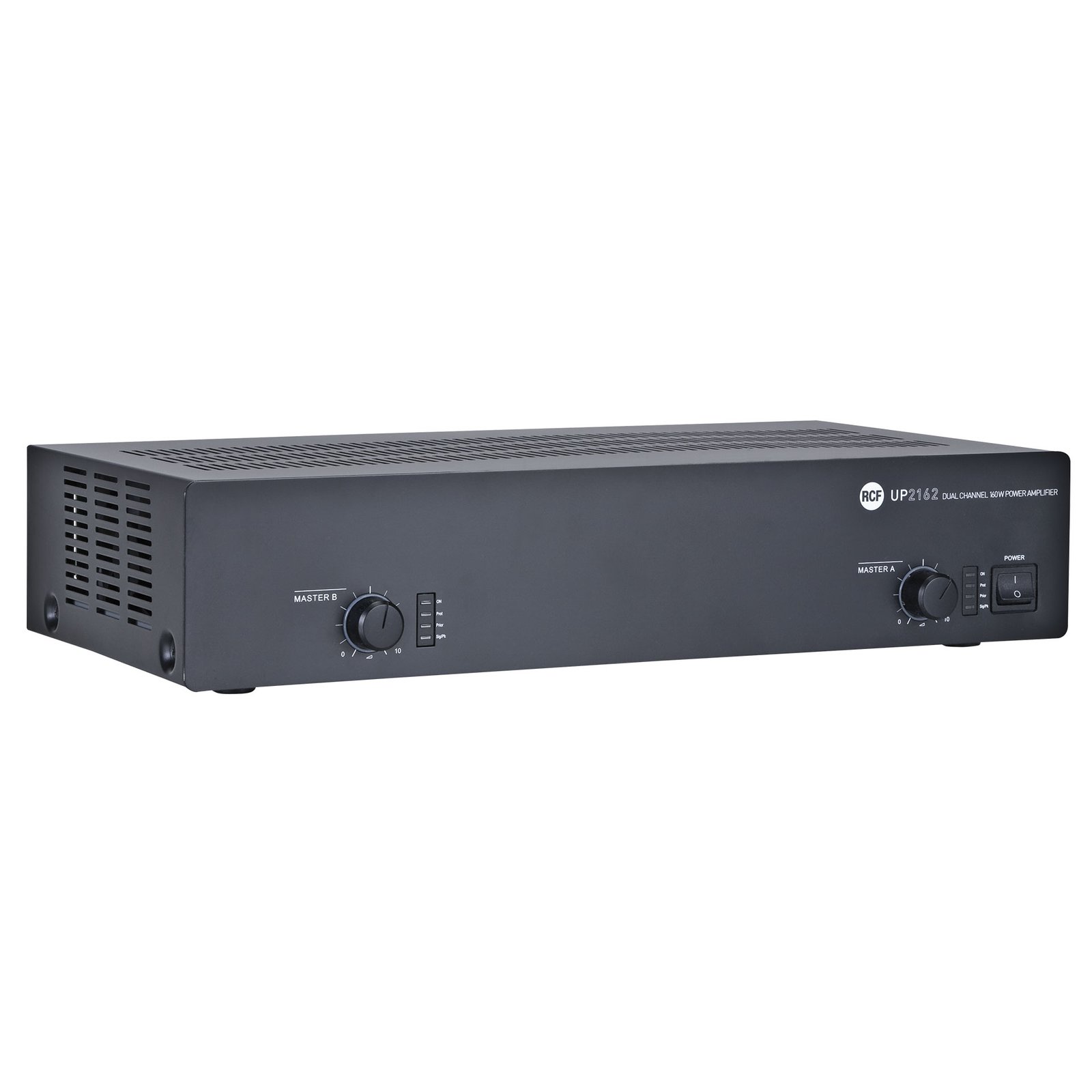

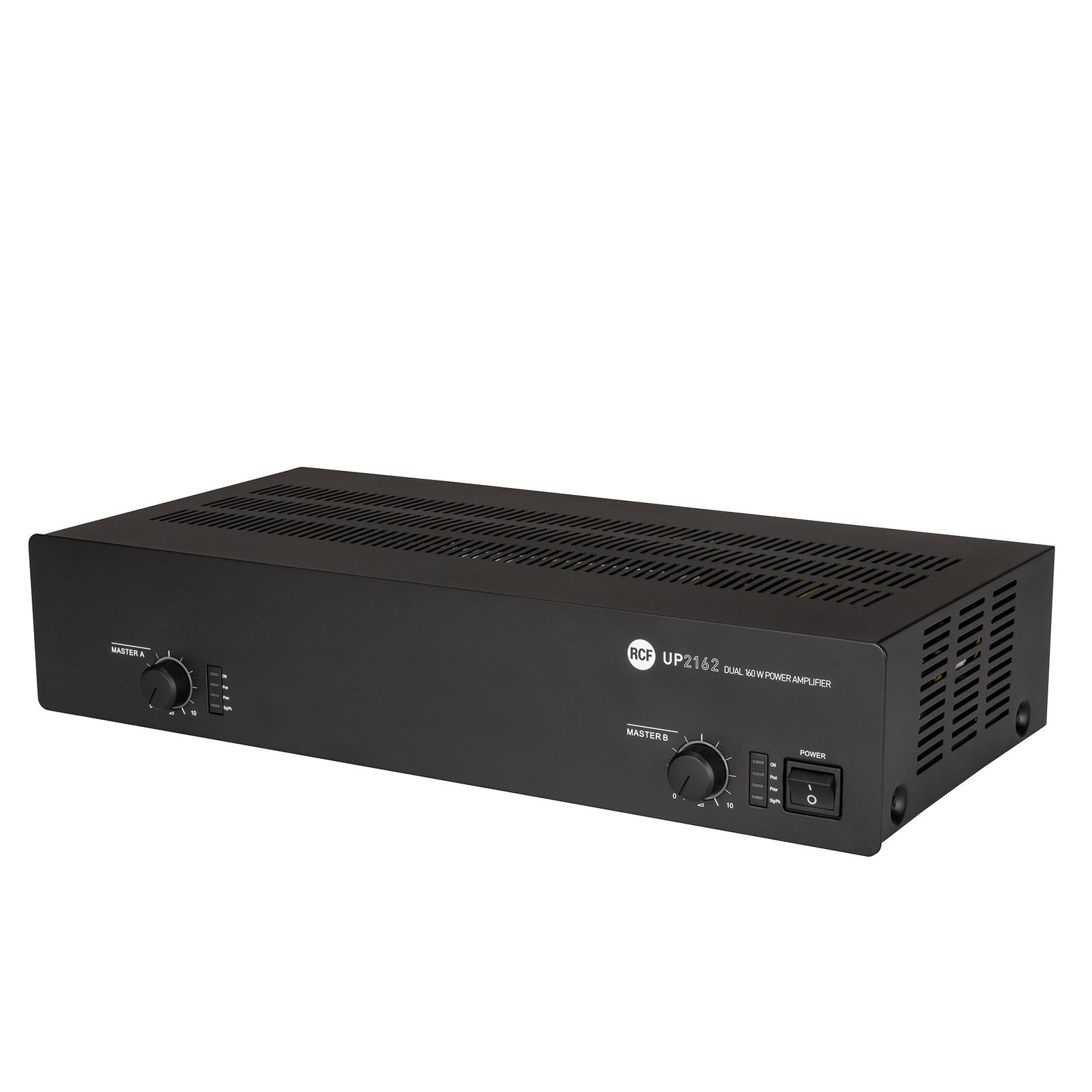

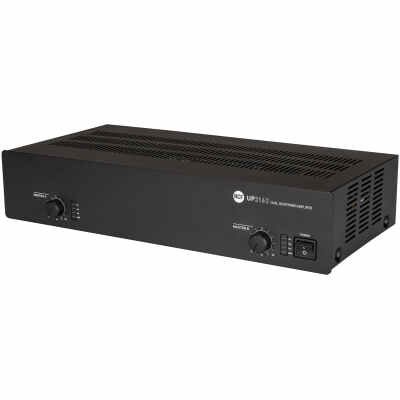

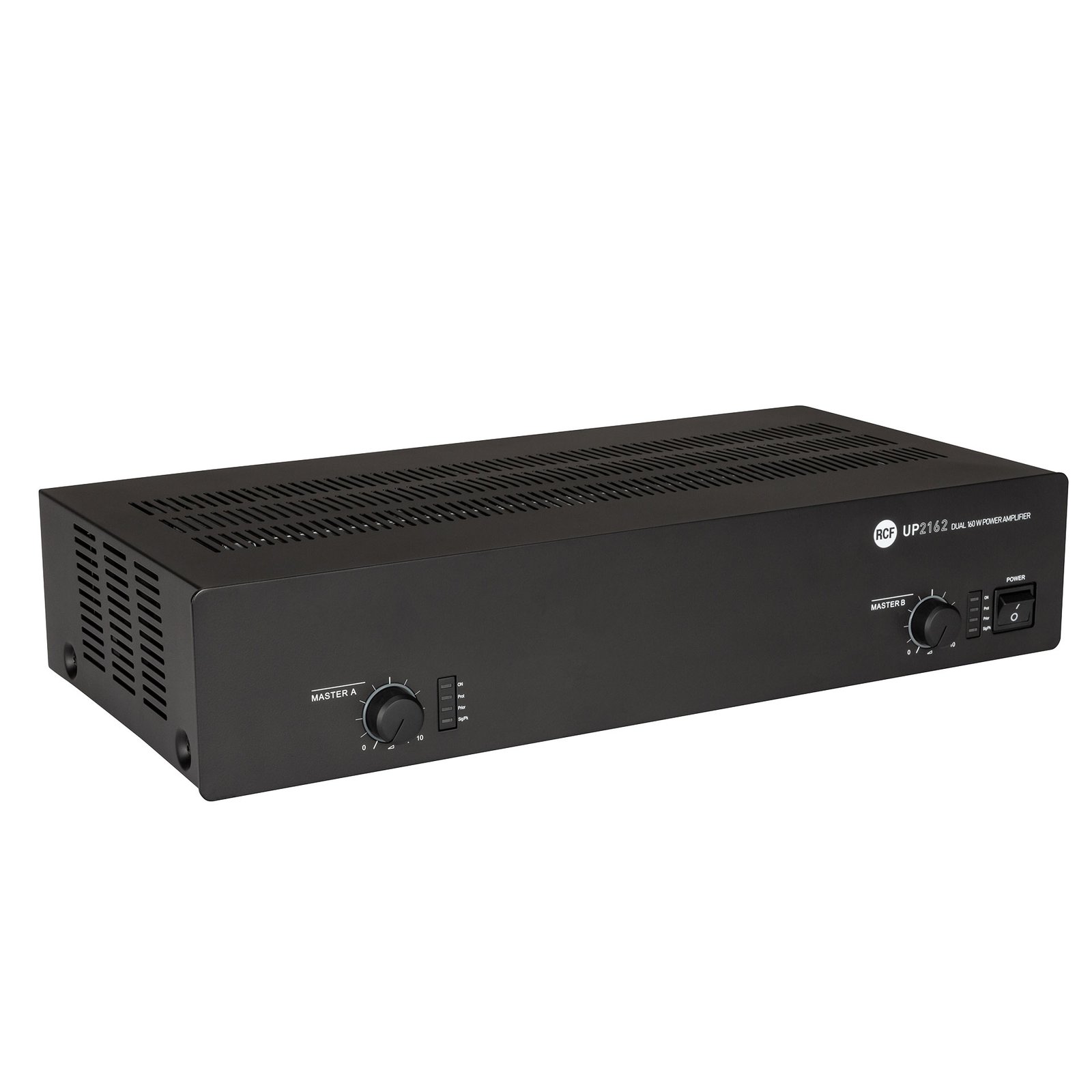

RCF UP 2162 Power Amplifier (2 Channel, 2 x 160W)

The UP 2162 is a compact, full-featured dual-channel Class D power amplifier engineered for high-quality speech and music distribution in commercial audio systems. Each of its two independent amplifiers delivers 160 W @ 4 ohms and is equipped with two line-level audio inputs. One input per channel supports priority function via a contact closure, ideal for emergency or paging systems. Both inputs accept removable Euroblock connectors for secure installation. AUX input features adjustable treble, bass, and gain controls for fine-tuning audio performance. Output supports both low-impedance (minimum 4 ohm) and high-voltage constant voltage lines (70V/100V), making it suitable for a variety of speaker setups. LED indicators on the front panel provide real-time status monitoring for power, signal/peak levels, protection, and priority activation. With convection cooling and multiple safety protections (short circuit, thermal, DC), the UP 2162 offers reliable, efficient operation. It mounts easily in a standard 19″, 2U rack space and is CE compliant, making it an ideal solution for professional audio installations.

Features

• Dual independent Class D amplifiers, each 160 W @ 4 ohm

• 2 line-level inputs per channel with priority override via contact closure

• AUX input with gain, bass, and treble controls

• Outputs support 4 ohm and 70V/100V speaker lines

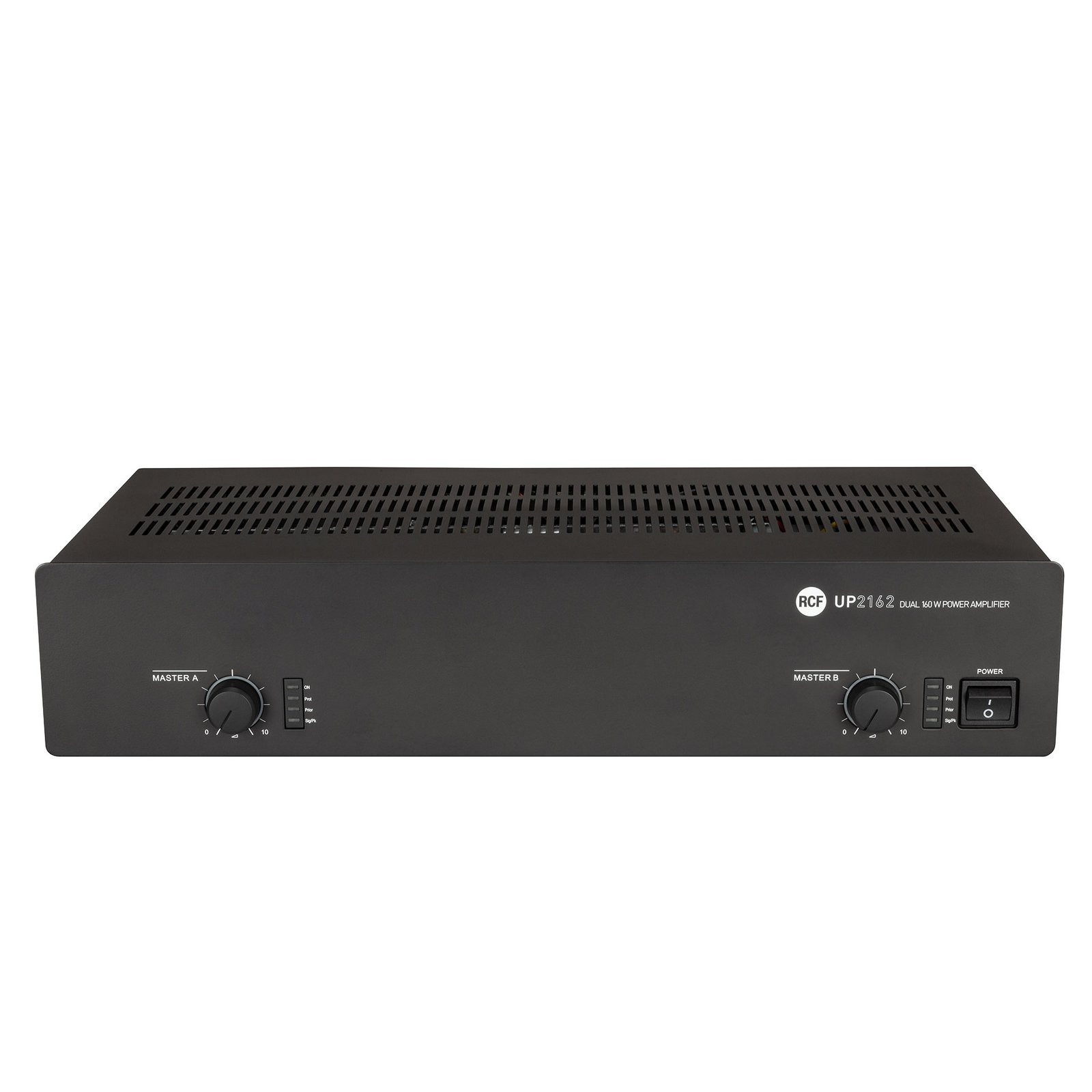

• Front panel LEDs for ON, protection, signal/peak, and priority status

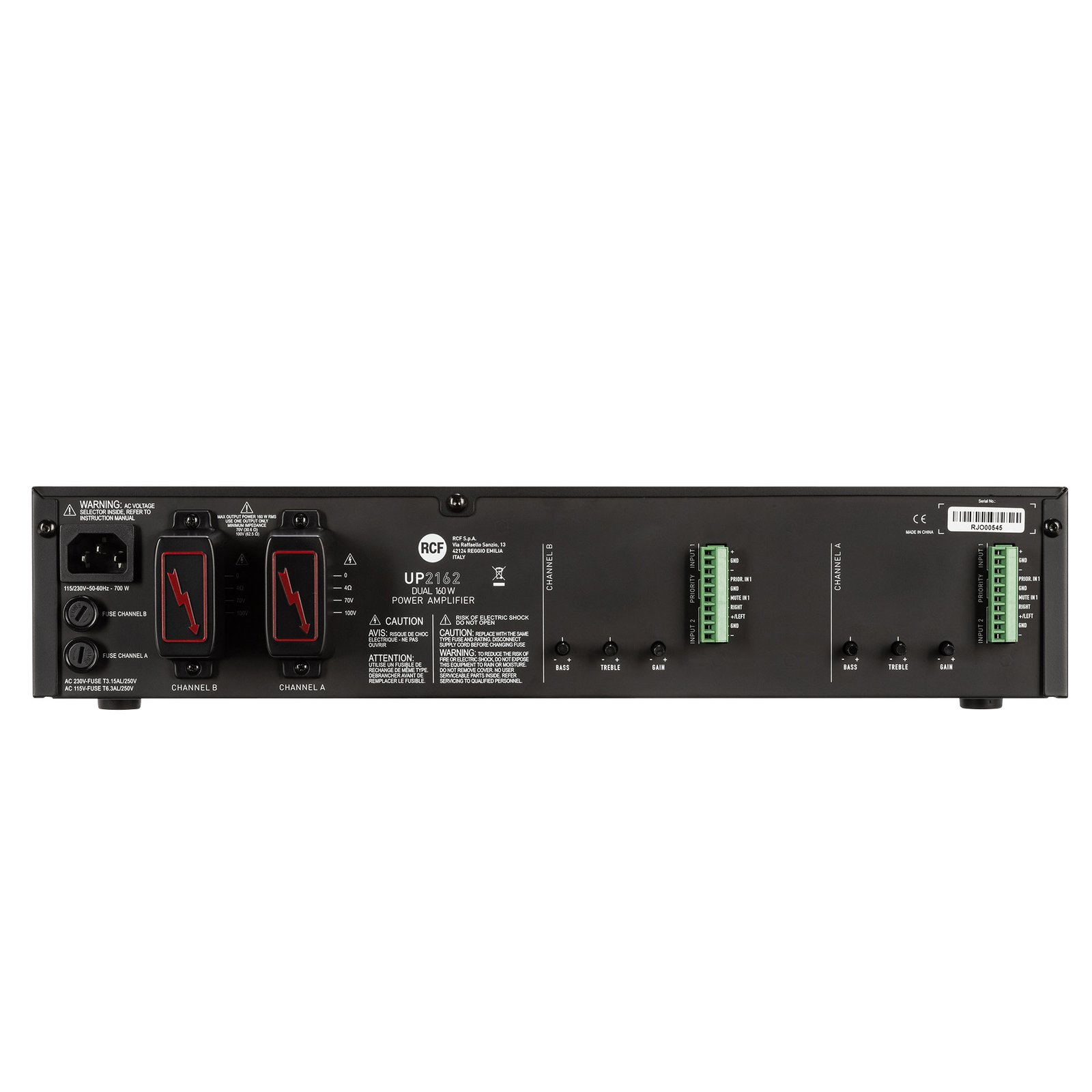

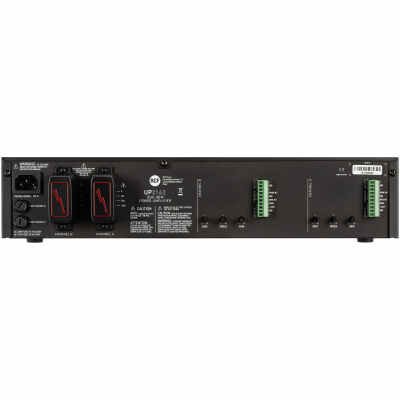

• Removable Euroblock connectors for inputs and outputs

• Lightweight with high-efficiency switching power supply

• Rack-mountable 2U metal chassis

• CE compliant with short circuit, thermal, and DC protections

Specifications
