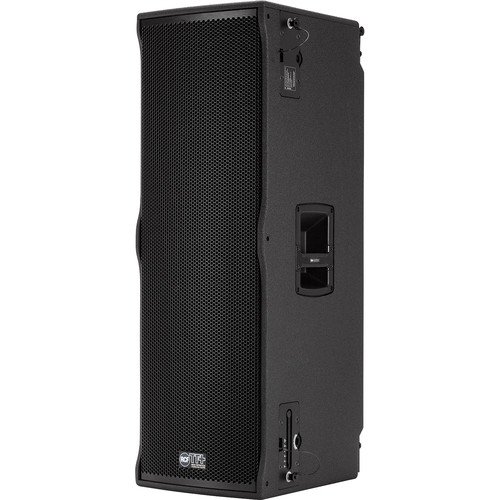

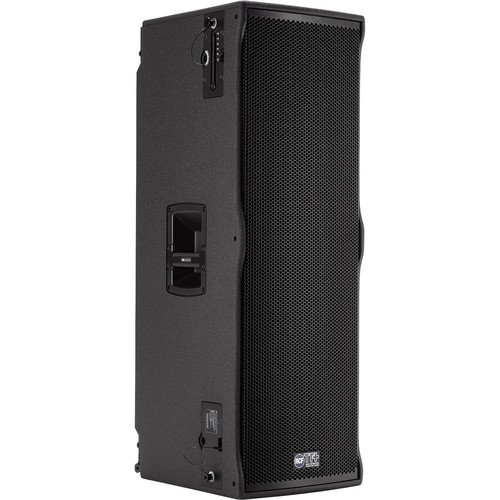

RCF TTL 6-A Active 2200W 3-Way Line Array Module with 4 Channels of Class-D Amplification

The TTL6-A is a state-of-the-art active three-way line array system engineered for optimal performance in both touring and fixed sound reinforcement applications. With its integrated Class-D amplifiers and powerful DSP engine, it provides exceptional audio fidelity, maximum SPL of 139 dB, and precise directivity control.

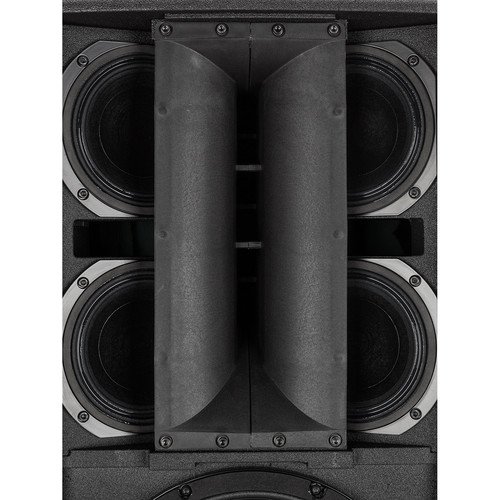

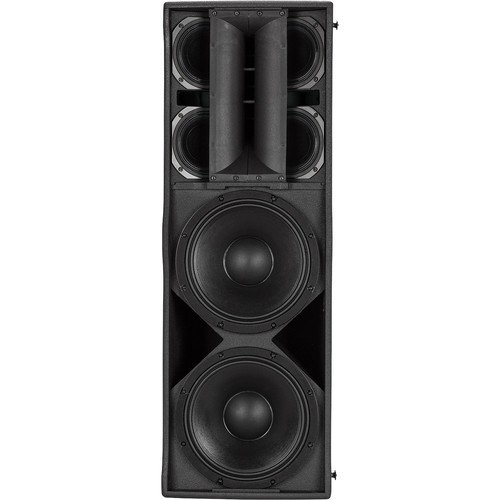

The system houses two 12” neodymium woofers, four 6” neodymium midrange drivers, and a 1.4” compression driver with a 3” voice coil. The advanced waveguide design ensures vertically asymmetrical directivity (90° x 30°) for uniform sound coverage and reduced acoustic reflections. With onboard RDNet control, each component is monitored and adjusted in real-time for peak system performance.

TTL6-A eliminates the need for external amplifiers and processor racks, simplifying setup, reducing truck space, and optimizing signal routing. It integrates seamlessly in stack, flown, or portable setups and offers configuration presets to suit various venue types and audience distances.

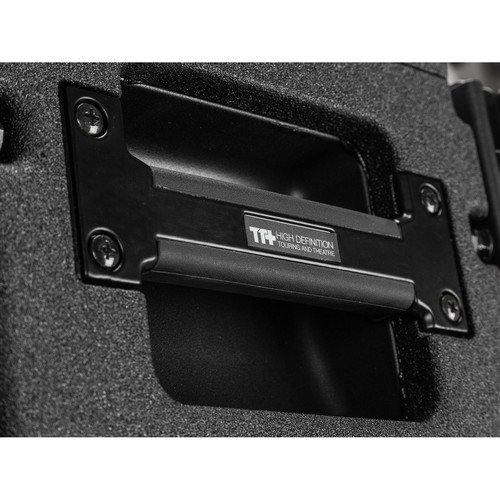

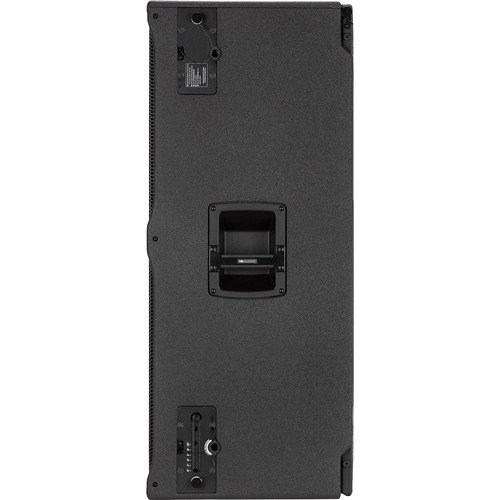

The system’s acoustic precision is enhanced by FiRPHASE filtering, which delivers linear phase response with zero phase distortion and minimal latency. Housed in a robust Baltic birch enclosure with a steel grille and ergonomic handles, the TTL6-A is tour-ready and installation-friendly.

Features

• Active 3-way line array with integrated Class-D amplifiers (2200 W RMS)

• RDNet remote monitoring and control

• Vertically asymmetrical waveguide for accurate coverage (90° x 30°)

• FiRPHASE filtering for linear phase and pristine audio clarity

• 1.4” compression driver with 3” voice coil and waveguide

• 4 x 6” midrange and 2 x 12” neodymium woofers

• High SPL (139 dB) with low distortion and thermal efficiency

• Onboard presets for close, far, linear, and dual-unit operation

• Convection cooling, steel grille, and rugged Baltic birch cabinet

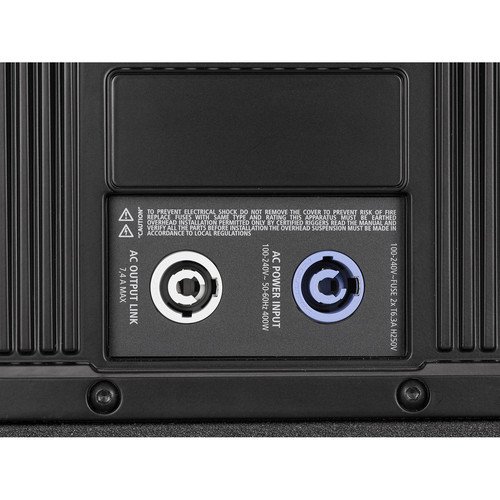

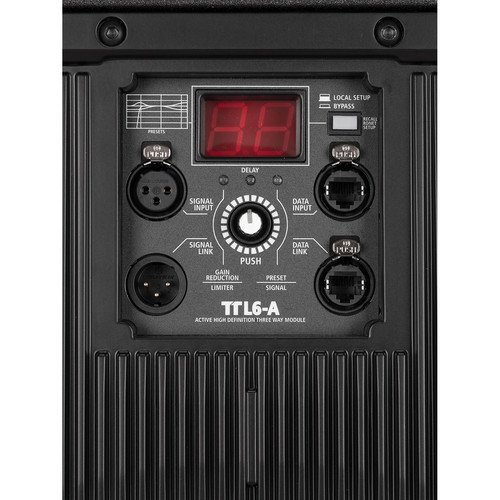

• PowerCON IN/OUT and XLR + RDNet Ethercon connectivity
