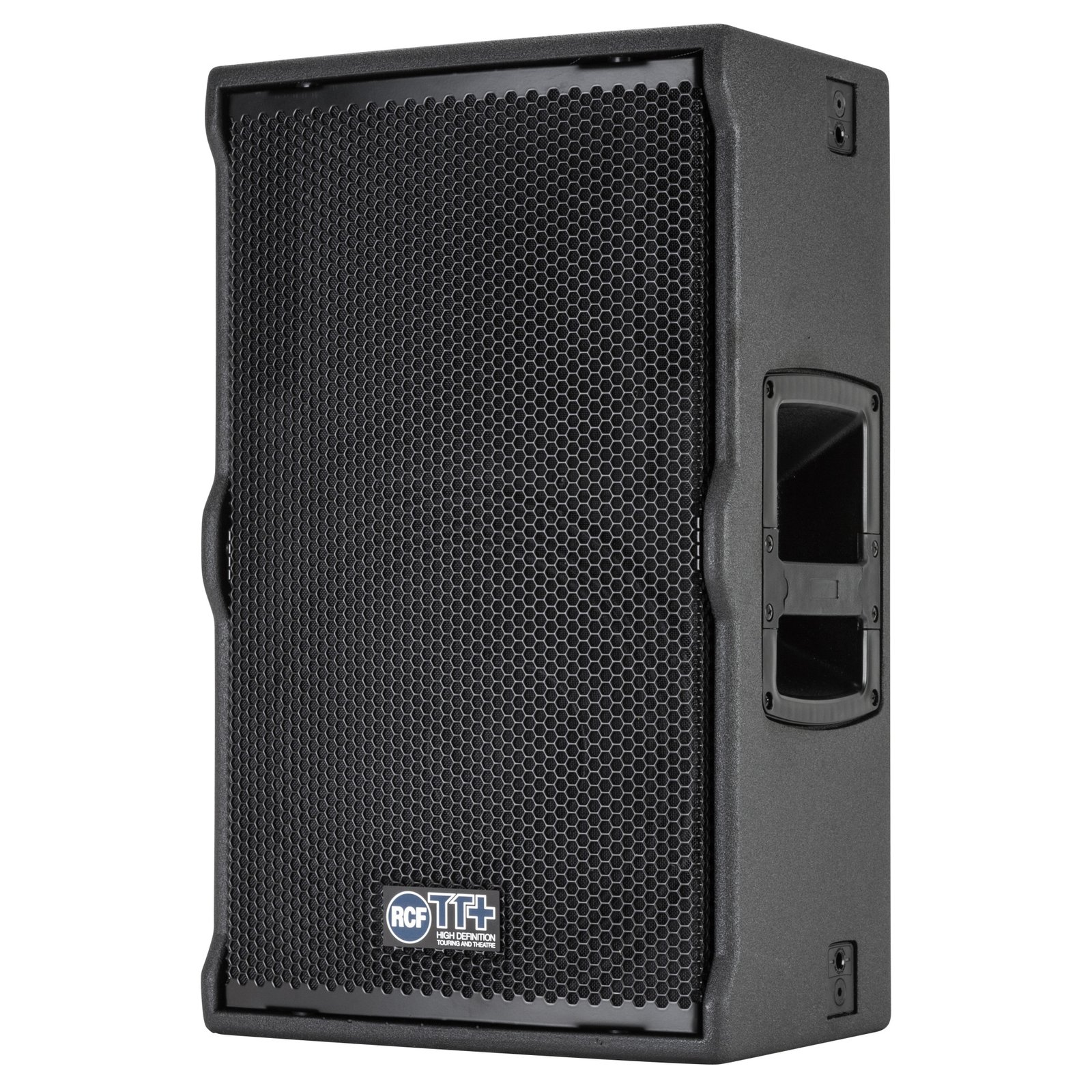

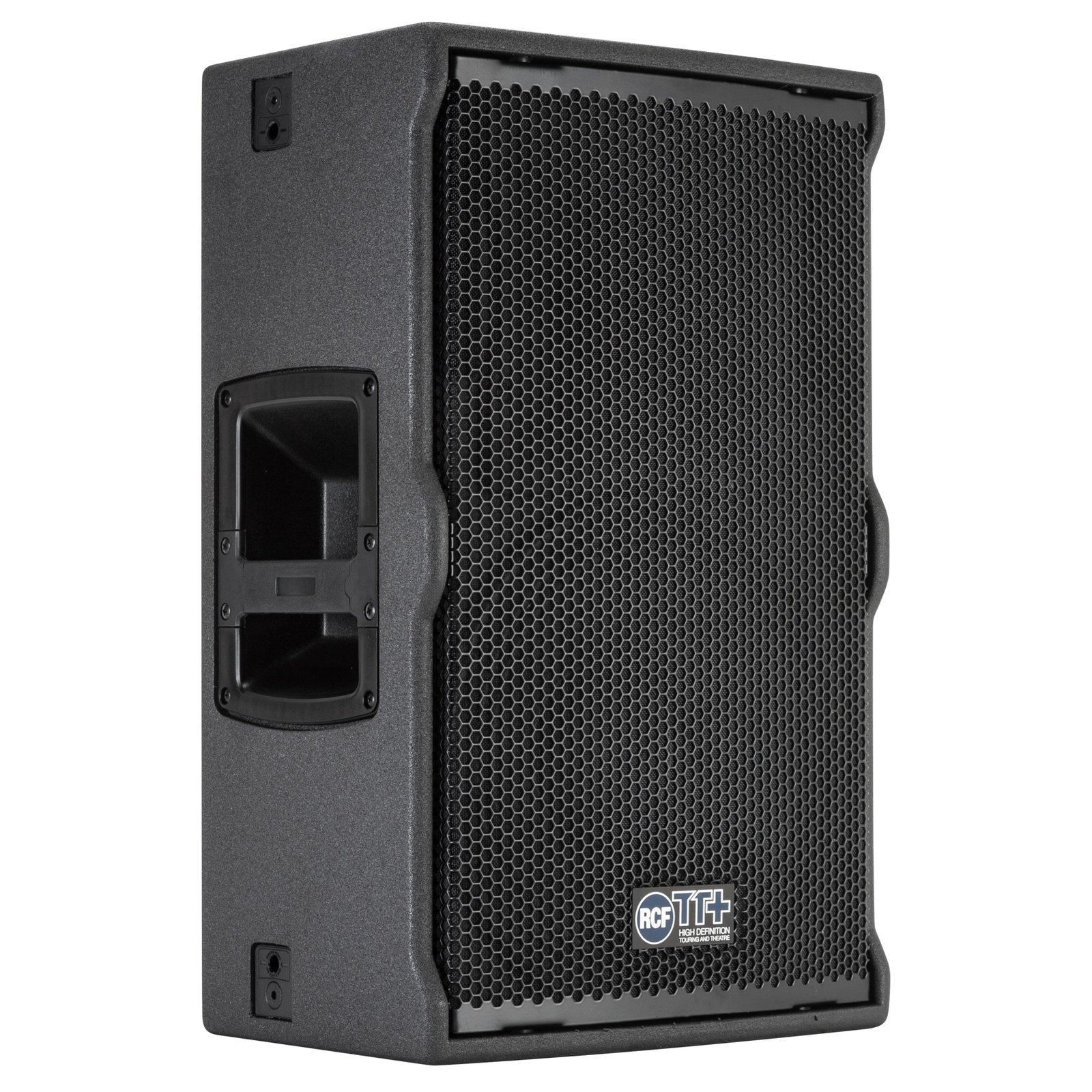

RCF TT 22-A II High-definition Active Two-way Speaker

The RCF TT 22-A II is an advanced active two-way loudspeaker system engineered for clarity, power, and precision in demanding live sound environments. Housed in a rugged Baltic birch plywood cabinet, it features a 12″ neodymium woofer with a 3.5″ voice coil and a 1.5″ compression driver with a 3.0″ voice coil. The 1100W RMS Class D amplifier delivers 800W to the LF section and 300W to the HF, allowing for a maximum SPL of 131 dB and a smooth frequency response from 50 Hz to 20,000 Hz.
The speaker’s constant directivity horn (90° x 60°) ensures even sound dispersion, while onboard DSP and RDNet enable detailed configuration, system tuning, and real-time monitoring. The TT 22-A II’s multifunctional design makes it ideal for front-of-house, stage monitoring, and installations. It includes multiple mounting options, fly tracks, and quick-lock mechanisms for ease of use on tour or in fixed installations.

Features

• 1100W RMS Class-D Amplifier (2200W Peak)

• 12″ neodymium woofer with 3.5″ voice coil

• 1.5″ neodymium compression driver with 3.0″ voice coil

• 90° x 60° rotatable constant directivity horn

• Onboard 32-bit DSP with 8 selectable presets

• Integrated RDNet for remote control and monitoring

• Max SPL of 131 dB with extended frequency range

• Multifunctional cabinet with fly tracks and pole mount

• Durable Baltic birch plywood construction with black polyurethane finish

• Silent convection cooling and Powercon connectivity

Specifications
