The HDL 15-AS is a compact and powerful flown subwoofer designed to work seamlessly with the HDL 10-A array module. It features a bass-reflex design that provides deep, linear bass response, while its vented 3.5″ voice coil woofer reduces power compression for consistent performance. The subwoofer includes versatile and robust hardware built for touring and installation, housed in a sturdy Baltic birch plywood enclosure. The integrated DSP-controlled input section allows for selectable presets, optimizing sound quality and system integration.
Features
-
2000 watts peak power, 1000 watts RMS
-
Maximum SPL of 133 dB
-
Frequency response from 40 Hz to 140 Hz
-
1 × 15″ woofer with 3.5″ voice coil
-
DSP controlled input section with selectable presets
-
Compatible with HDL 10-A module
-
Robust, tour-safe hardware
-
Sturdy Baltic birch plywood enclosure
-
Designed to complement the HDL 10-A enclosure
Specifications
| Frequency response | 40 Hz ÷ 140 Hz |
| Maximum SPL @ 1m | 133 dB |
| Woofer | 1 × 15″, 3.5″ voice coil |
| Input signal | Balanced/unbalanced |
| Input connectors | XLR |
| Output connectors | XLR |
| Input sensitivity | -2 dBu / +4 dBu |
| High-pass frequencies | 30 Hz, 45 Hz |
| Low-pass frequencies | 90 Hz, 140 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |

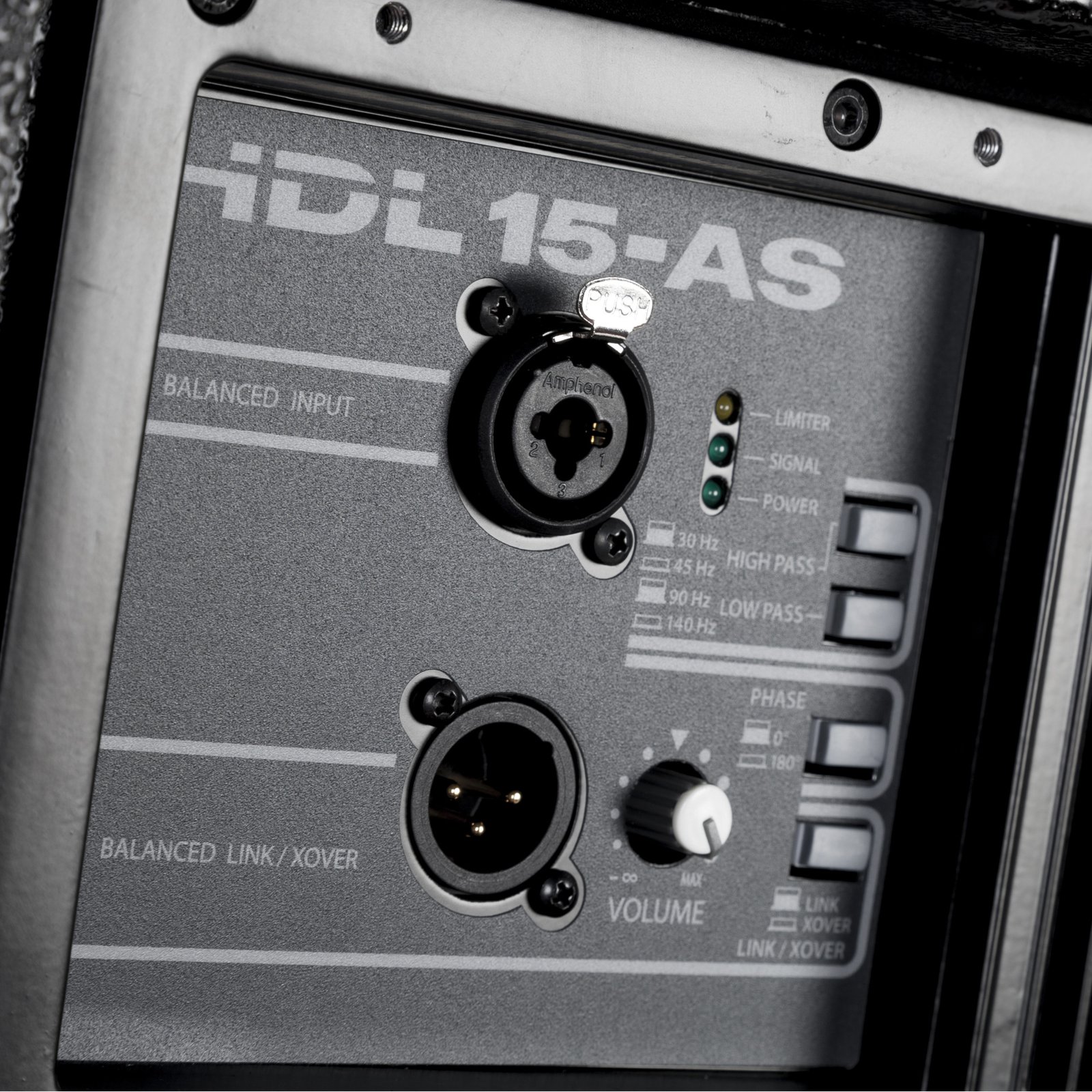

| Controls | Volume, EQ shape, crossover |
| Total power | 2000 W Peak, 1000 W RMS |
| Cooling system | Convection / Forced |
| Power connections | Powercon IN/OUT |
| Safety compliance | CE compliant |
| Cabinet material | Baltic birch plywood |
| Rigging | Flyware, M20 insert |
| Handles | 2 side handles |
| Grid | Steel |
| Color | Black |
| Height | 458 mm / 18.03 inches |
| Width | 555 mm / 21.85 inches |
| Depth | 569 mm / 22.4 inches |
| Weight | 39 kg / 85.98 lbs |
| Package height | 610 mm / 24.02 inches |
| Package width | 660 mm / 25.98 inches |
| Package depth | 675 mm / 26.57 inches |
| Package weight | 44 kg / 97 lbs |
