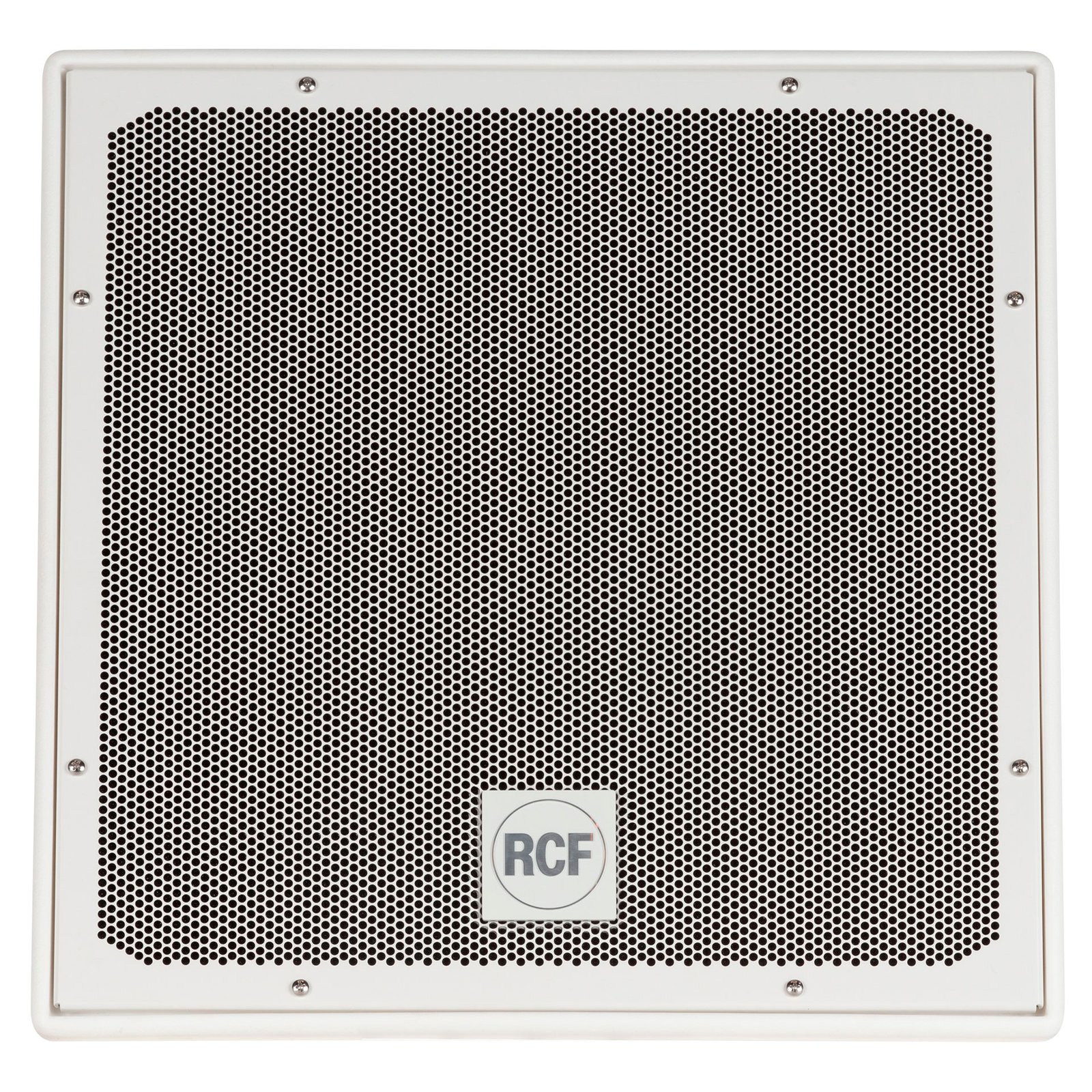

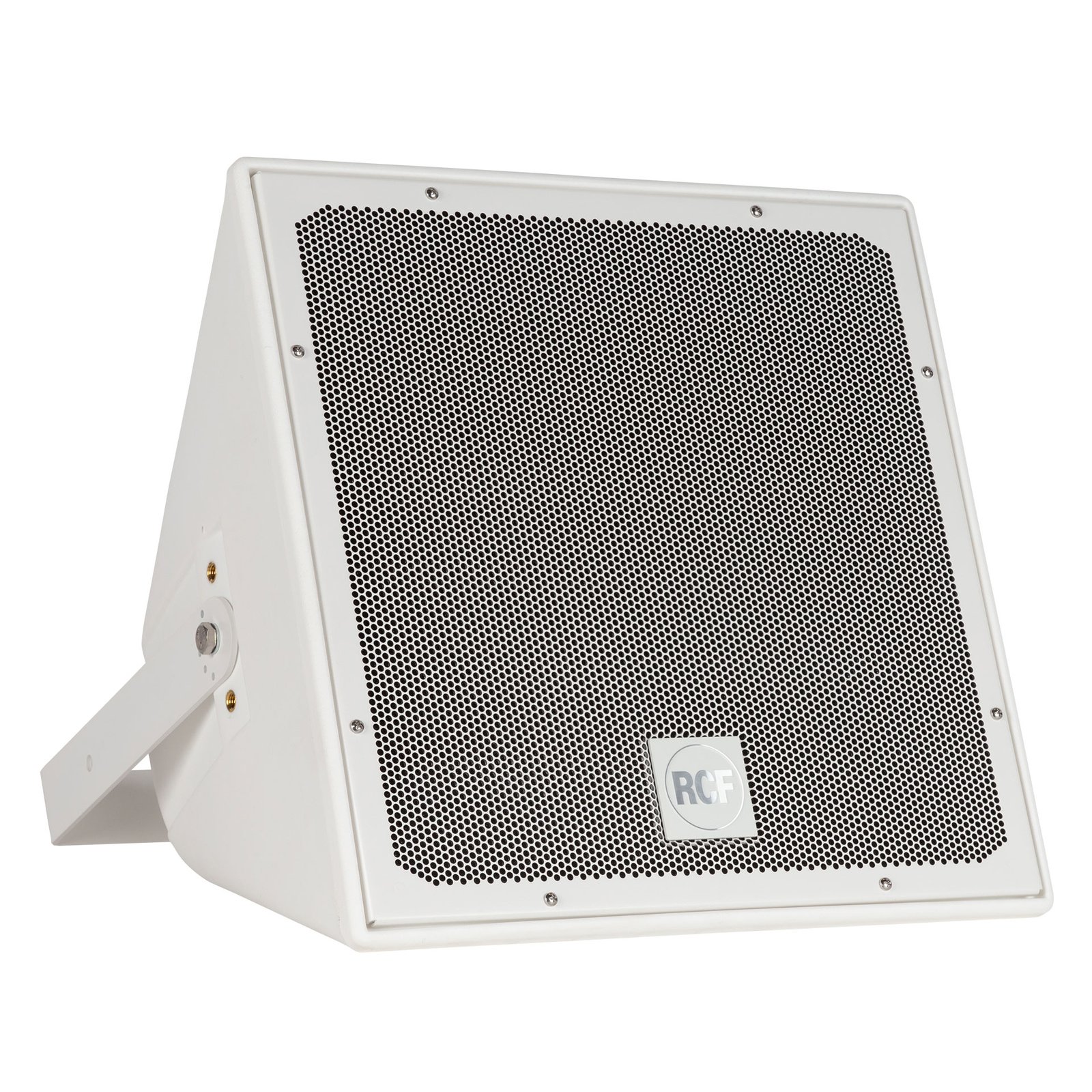

The P 5228-L white version is a full-range, weather-resistant two-way loudspeaker designed for professional sound reinforcement in demanding environments. It features two 8″ neodymium woofers with 2.5″ voice coils and two high-efficiency neodymium compression drivers with 1.75″ voice coils, each mounted on a CMD constant directivity horn. This configuration delivers a tight 90° horizontal and highly controlled 20° vertical dispersion, ideal for applications requiring directional coverage. The system supports an RMS power of 500 W, peaking at 2000 W, and produces a maximum SPL of 131 dB. The internal LICC crossover and AMCDP (Active Mosfet Compression Driver Protection) ensure reliable operation under high loads. The cabinet, made of roto-molded, UV-resistant polyethylene, meets IP55 standards for outdoor durability. Its white finish (RAL 9003), aluminum grille with water-repellent cloth, and corrosion-resistant 316L stainless steel bracket provide aesthetic and structural integrity in installations. With multiple M8 inserts and an Amphenol IP67-rated connector, this speaker offers secure, weatherproof connectivity and mounting flexibility.
Features
500 W RMS, 2000 W peak power handling
131 dB maximum SPL output
80 Hz – 20,000 Hz frequency response
Dual 8″ neodymium woofers with 2.5″ voice coils
Dual 1″ compression drivers with 1.75″ voice coils
90° x 20° constant directivity for precision coverage
IP55 weather-resistant cabinet with UV protection
White powder-coated aluminum grille with water-repellent backing
316L stainless steel U-bracket included
Amphenol IP67-rated 4-pole input connector
LICC crossover and AMCDP driver protection
Suitable for array configurations or standalone mounting
Specifications
| Frequency Response | 80 Hz – 20,000 Hz |
| Max SPL @ 1m | 131 dB |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 20° |
| Directivity Index Q | 11 |
| System Sensitivity | 98 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 500 W |
| Peak Power Handling | 2000 W PEAK |
| Protection | Dynamic active Mosfet |
| Crossover Frequency | 1300 Hz |
| Compression Drivers | 2 x 1.0″, 1.75″ v.c. neodymium |
| Woofers | 2 x 8″, 2.5″ v.c. neodymium |
| Input Connectors | Amphenol eco/mat IP67 (4-pole) |
| IP Protection Grade | IP 55 |
| Safety Certification | CE compliant |
| Cabinet Material | Roto-molded PE (UV resistant) |
| Mounting Hardware | 4 x M8 brass inserts, 316L U-bracket |
| Grille | White aluminum with water-repellent cloth backing |
| Color | White (RAL 9003) |
| Height | 268 mm / 10.55 inches |
| Width | 566 mm / 22.28 inches |
| Depth |
