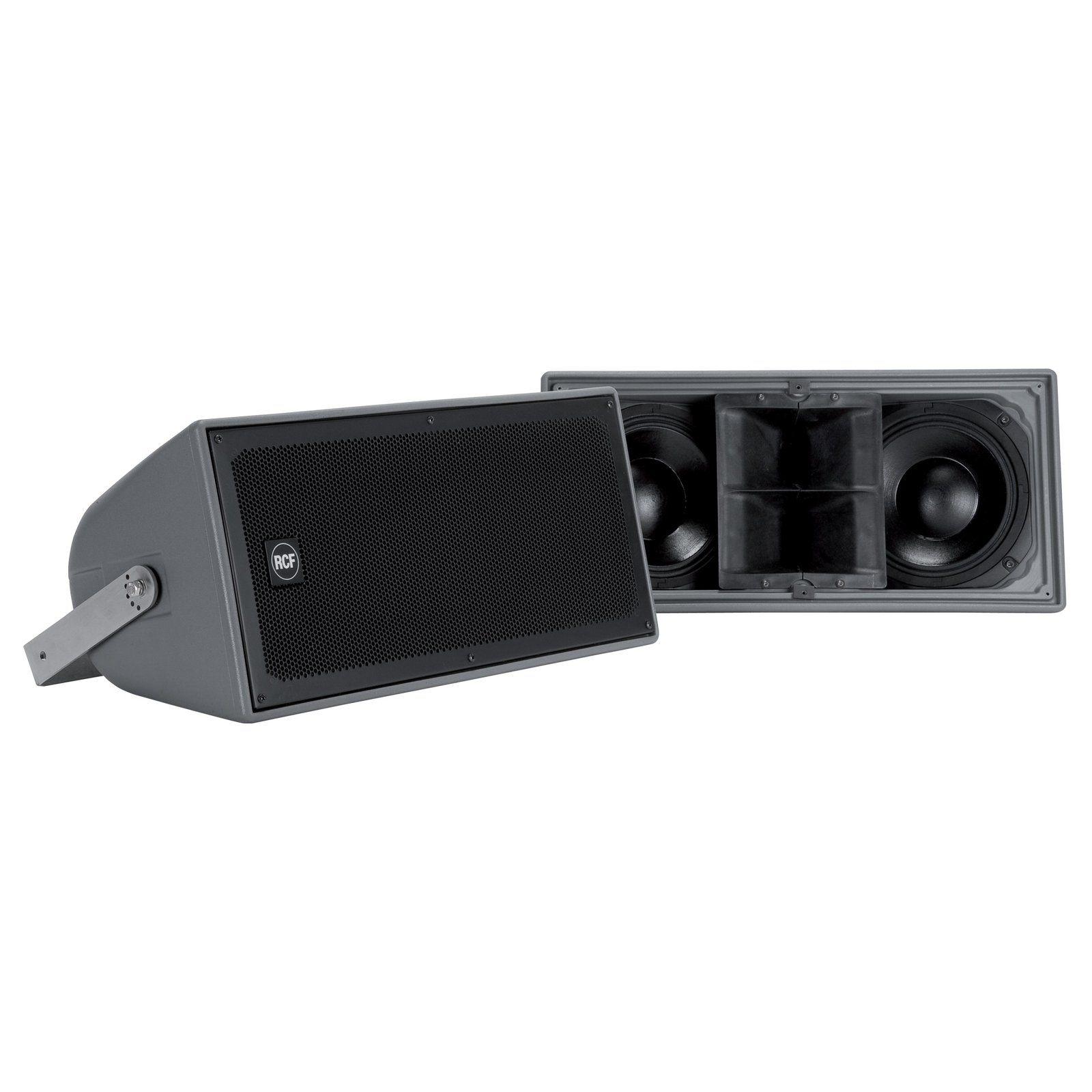

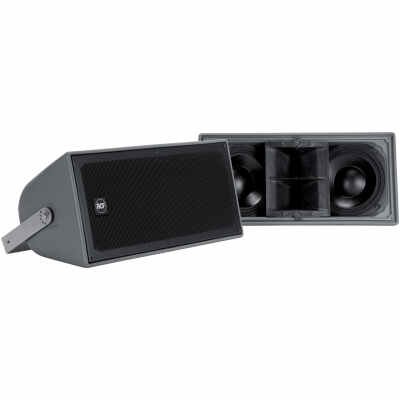

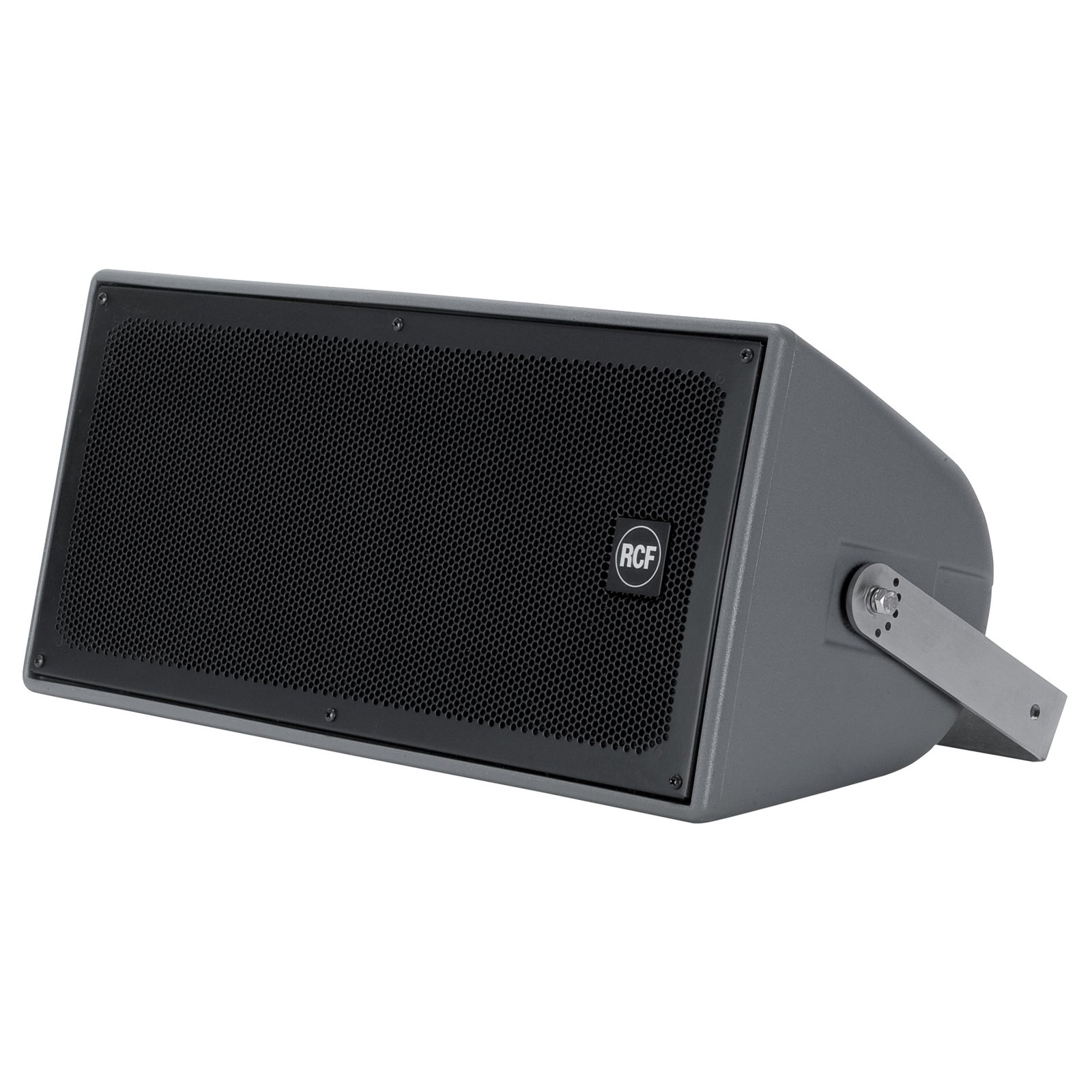

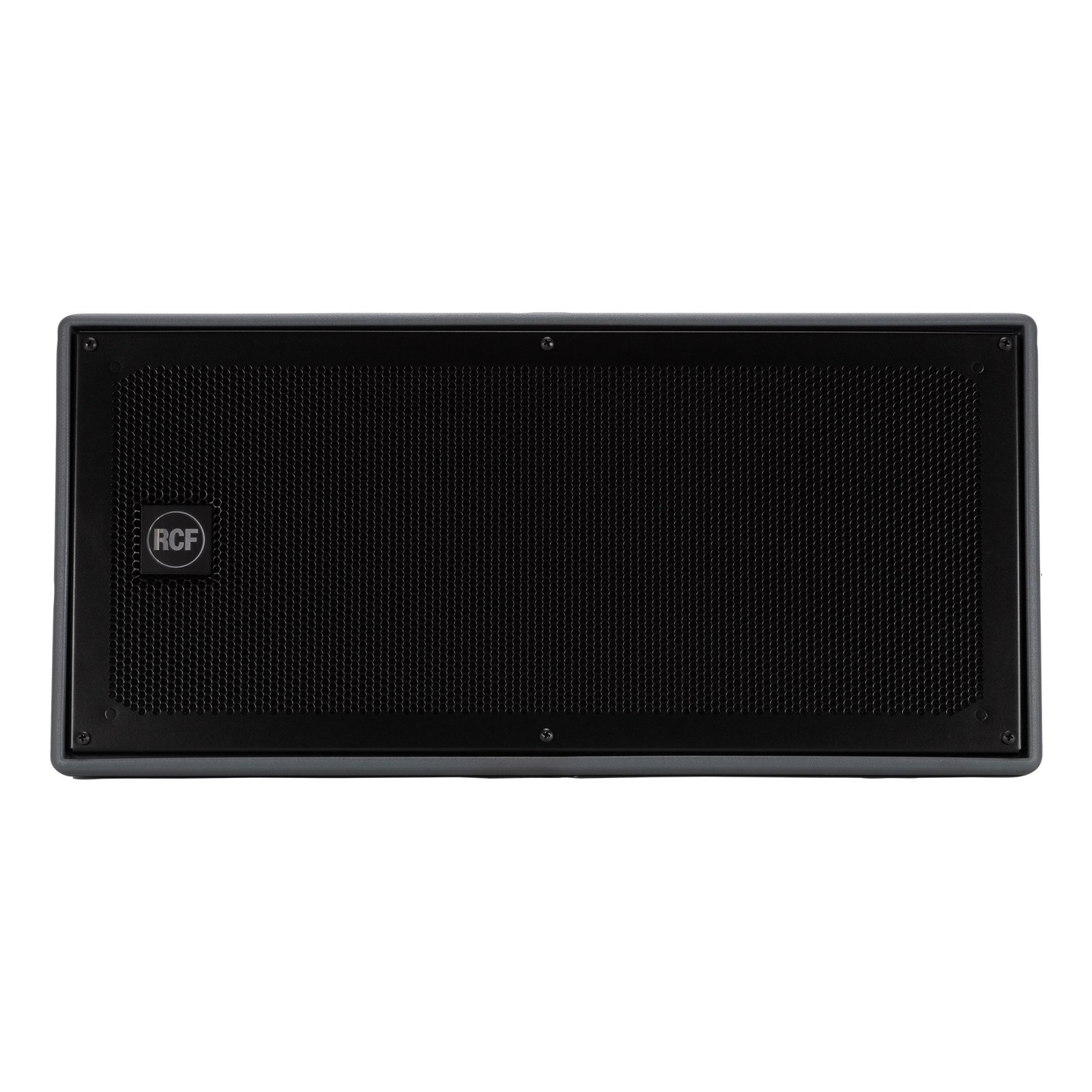

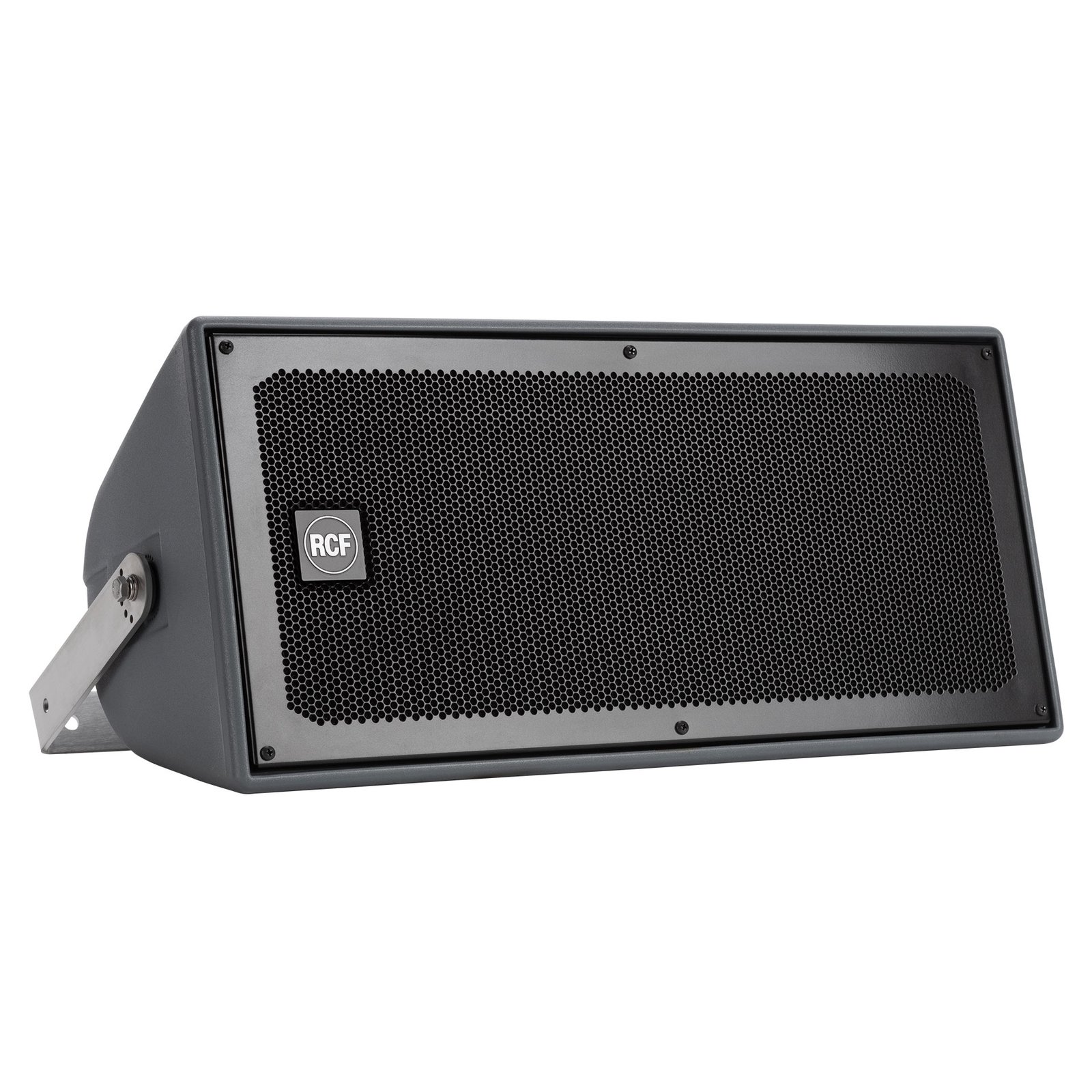

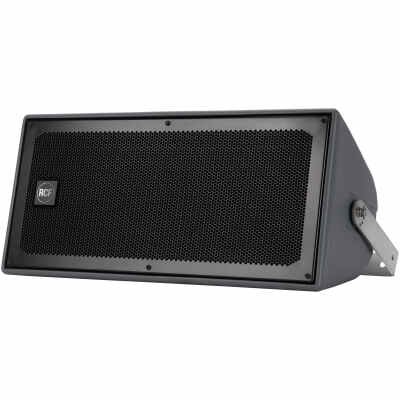

The P 5228-L white version is a full-range, weatherproof loudspeaker engineered for professional installations that demand consistent audio clarity and directional control. Its low-frequency section features two 8″ neodymium woofers with 2.5″ voice coils, ensuring rich and balanced bass response. The high-frequency section integrates two CMD horns, each paired with a 1″ neodymium compression driver with a 1.75″ voice coil, delivering focused 20° vertical coverage and 90° horizontal dispersion. Together, they offer a smooth, even sound across a broad frequency range of 80 Hz to 20,000 Hz, reaching up to 131 dB SPL. The cabinet is molded from UV-stabilized polyethylene, rated IP55 for outdoor use, and includes four M8 brass inserts and a corrosion-resistant stainless steel U-bracket for flexible mounting. Internally, the speaker is protected by a LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The grille is made from powder-coated aluminum with water-repellent backing and features a rotatable logo plate. Its crisp white finish (RAL 9003) makes it ideal for installations requiring a clean, low-visibility appearance without sacrificing performance.
Features
500 W RMS power, 2000 W peak
Up to 131 dB maximum sound pressure level
80 Hz to 20,000 Hz wide frequency range

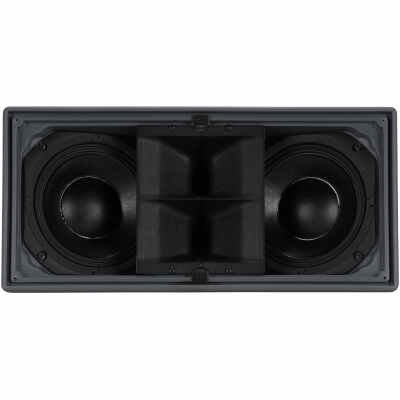

Two 8″ neodymium woofers with 2.5″ voice coils
Dual 1″ neodymium compression drivers with 1.75″ voice coils
Controlled 90° horizontal and 20° vertical dispersion
IP55-rated weatherproof cabinet with UV protection
Durable white aluminum grille with water-repellent backing

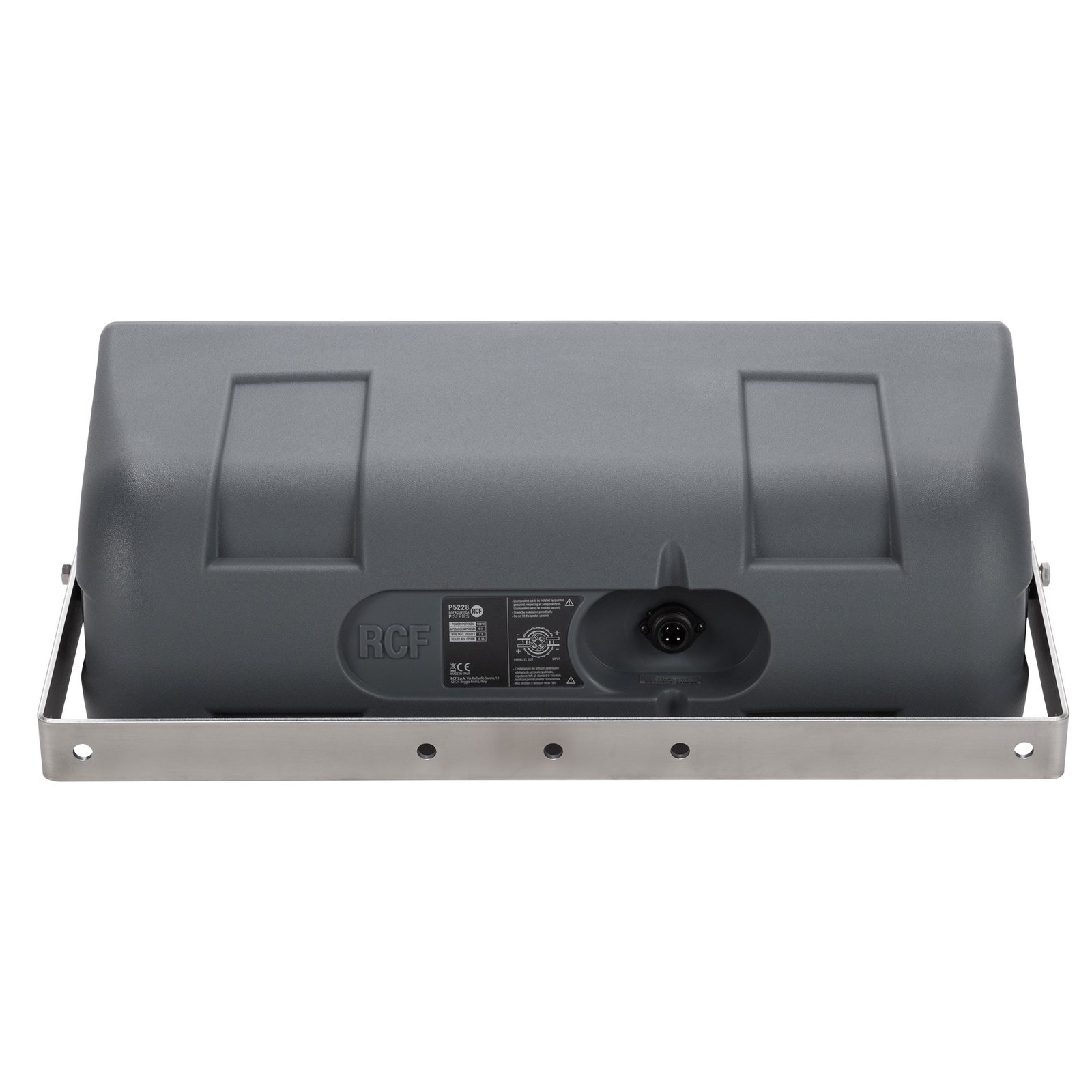

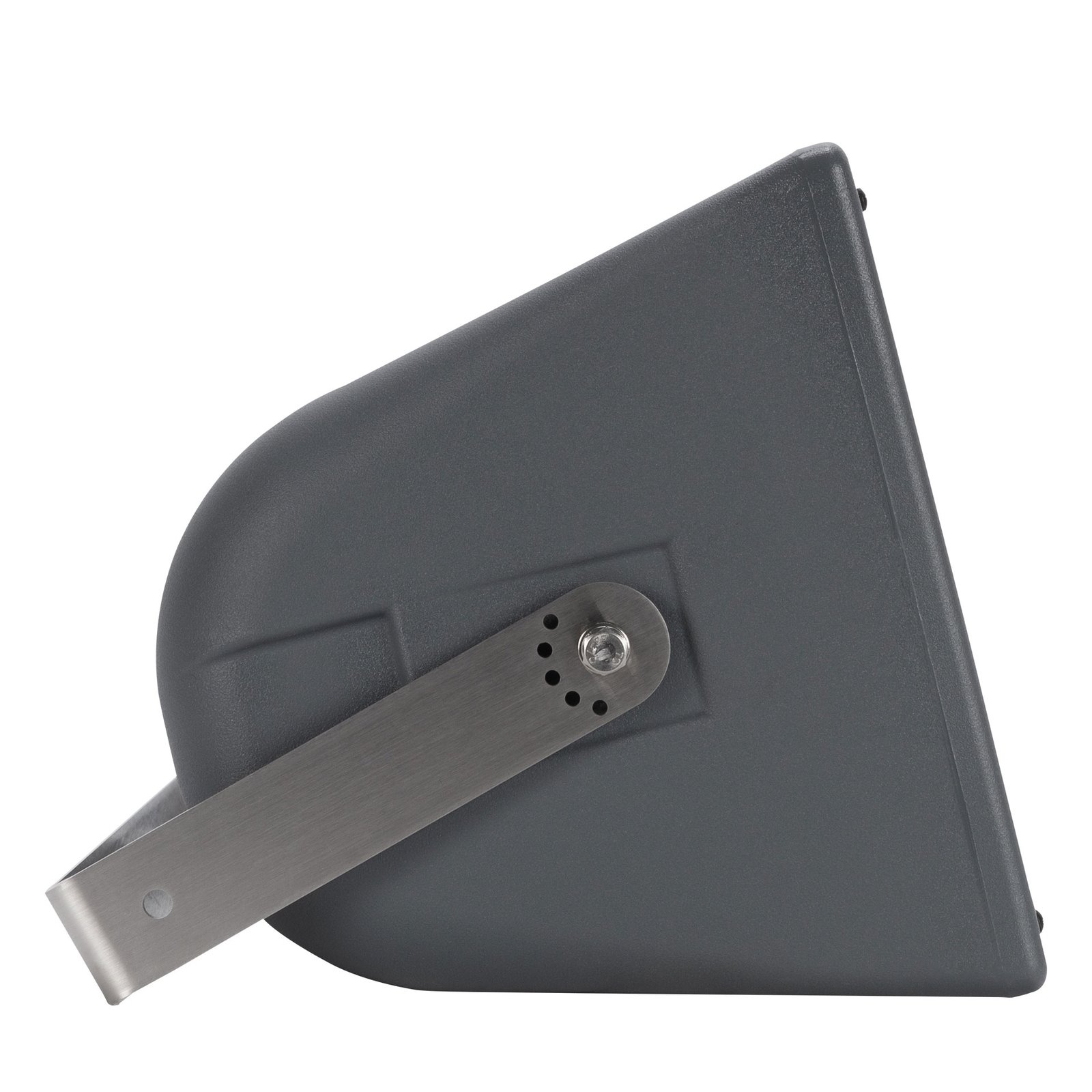

AISI 316L stainless steel mounting bracket

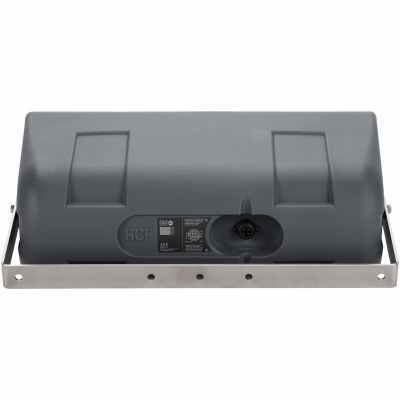

Watertight Amphenol IP67 4-pole input connector
Advanced LICC crossover and Active Mosfet protection circuitry
CE certified for safe installation compliance
Specifications
| Frequency Response | 80 Hz – 20,000 Hz |
| Max SPL @ 1m | 131 dB |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 20° |
| Directivity Index Q | 11 |
| System Sensitivity | 98 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 500 W |
| Peak Power Handling | 2000 W PEAK |
| Protection | Dynamic active Mosfet |
| Crossover Frequency | 1300 Hz |
| Compression Drivers | 2 x 1.0″, 1.75″ v.c neodymium |
| Woofers | 2 x 8″, 2.5″ v.c neodymium |
| Input Connectors | Amphenol eco/mat IP67 |
| IP Protection Grade | IP 55 |
| Safety Certification | CE compliant |
| Cabinet Material | PE Low Density |
| Mounting Hardware | 4 x M8 inserts + U-bracket |
| Grille | White powder-coated aluminum with waterproof cloth backing |
| Color | White (RAL 9003) |
| Height | 268 mm / 10.55 inches |
| Width | 566 mm / 22.28 inches |
