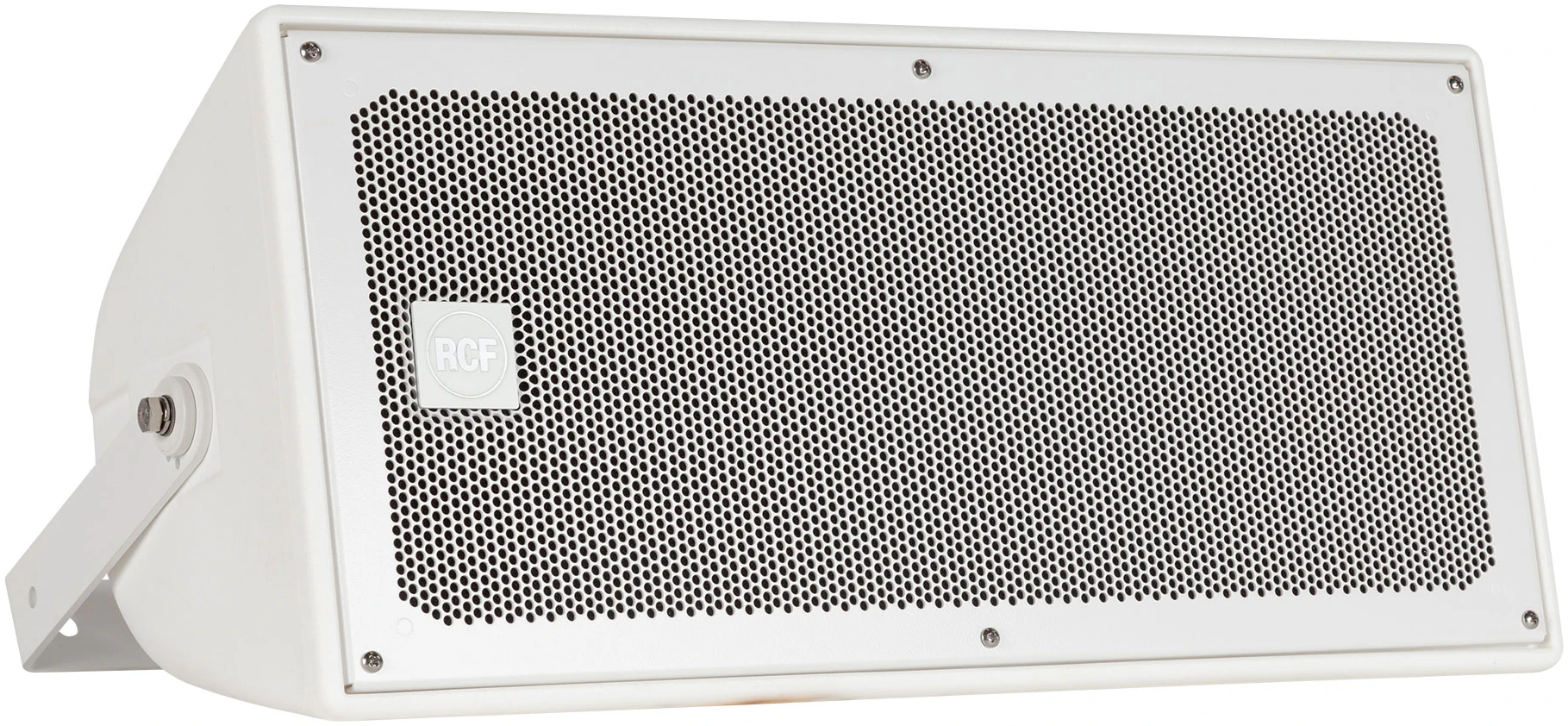

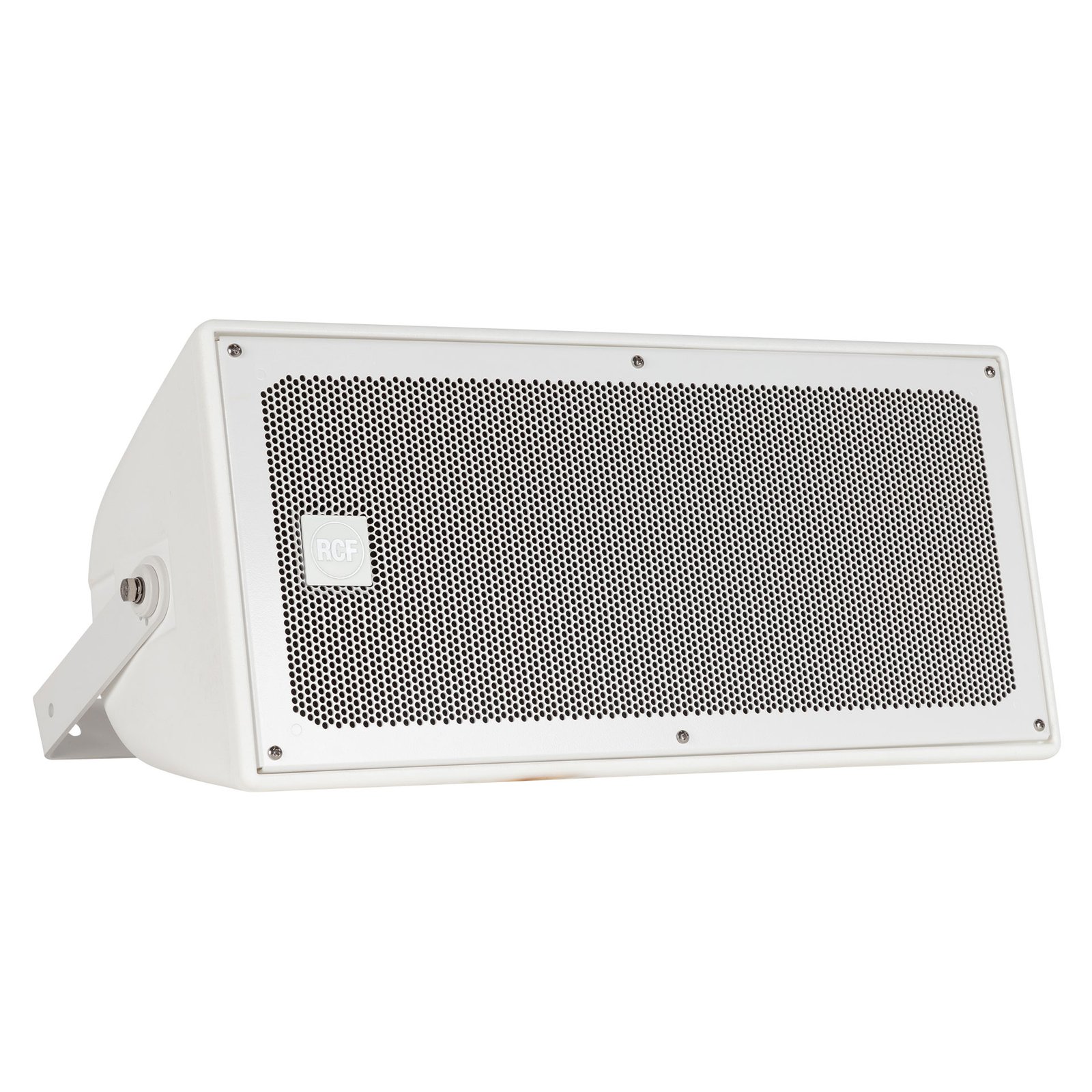

Designed for versatility and durability, the P 4228 white version is a full-range, weatherproof two-way loudspeaker suitable for standalone use or array setups. Its low-frequency section consists of two 8″ neodymium woofers with 2.5″ voice coils, arranged symmetrically to provide controlled horizontal dispersion. The high-frequency unit includes a 1.4″ neodymium compression driver paired with a 2.5″ diaphragm, mounted on a constant directivity CMD horn, delivering smooth and focused sound across a 110° horizontal and 60° vertical coverage area. This speaker operates across an 80 Hz to 20 kHz frequency range and can reach up to 129 dB SPL. The internal electronics feature LICC crossover and Active Mosfet Compression Driver Protection (AMCDP) to ensure optimal sound quality and reliability. The cabinet is roto-molded in a UV-protected material rated IP55 for resistance to weather elements. It includes four M8 brass inserts, a corrosion-resistant stainless steel U-bracket, and water-tight Amphenol IP67 4-pole connectors. The front grille is powder-coated aluminum with water-repellent backing, and the logo plate is rotatable. This white finish (RAL 9003) version offers the same robust features and quality performance in a sleek, light-colored design.
Features
400 W RMS power handling, 1600 W peak power
Maximum SPL of 129 dB
Frequency response from 80 Hz to 20,000 Hz
Dual 8″ neodymium woofers with 2.5″ voice coils
2.5″ voice coil neodymium compression driver with 1.4″ diaphragm
110° horizontal by 60° vertical constant directivity
Weatherproof IP55 rated cabinet with UV protection

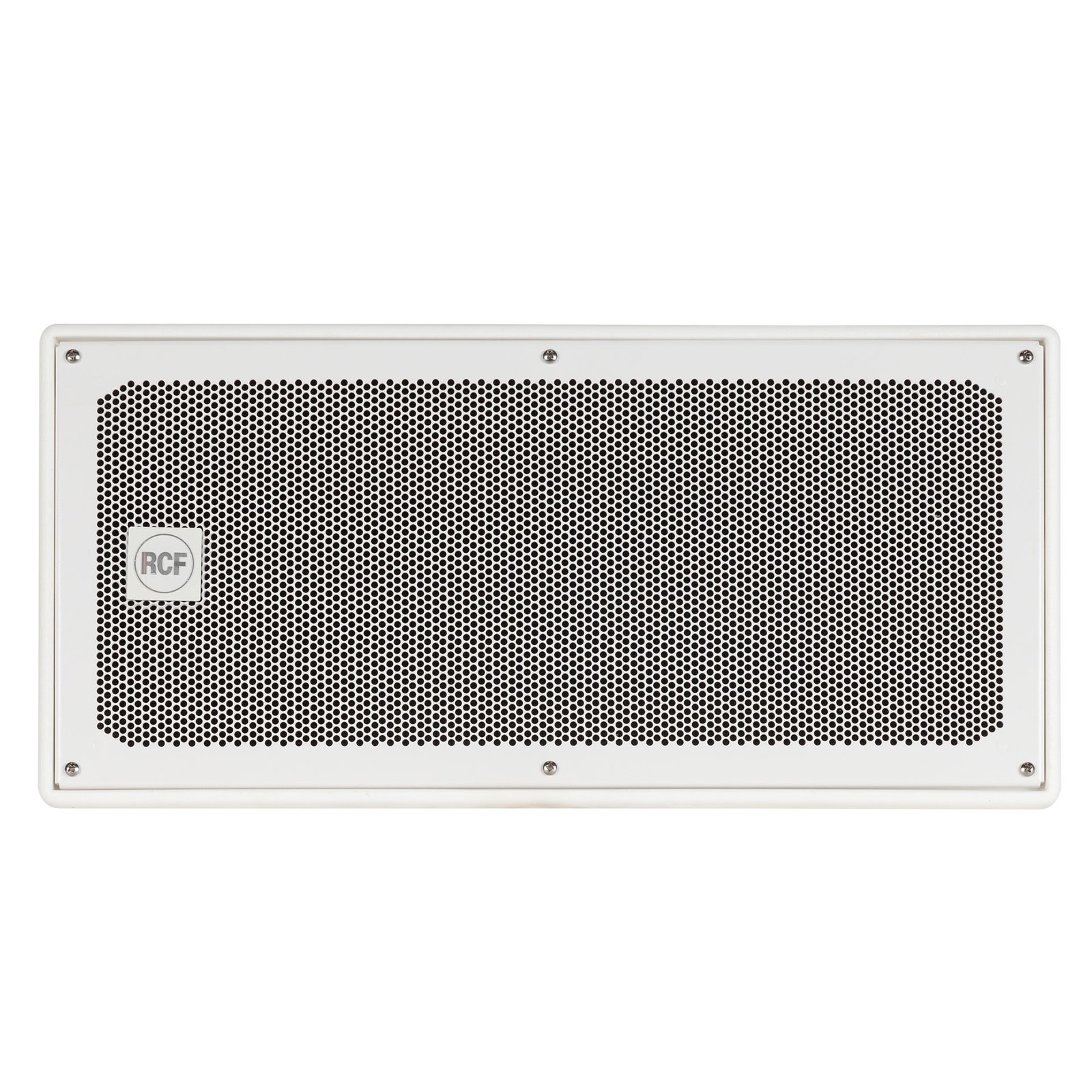

Durable white powder-coated aluminum grille with water-repellent backing

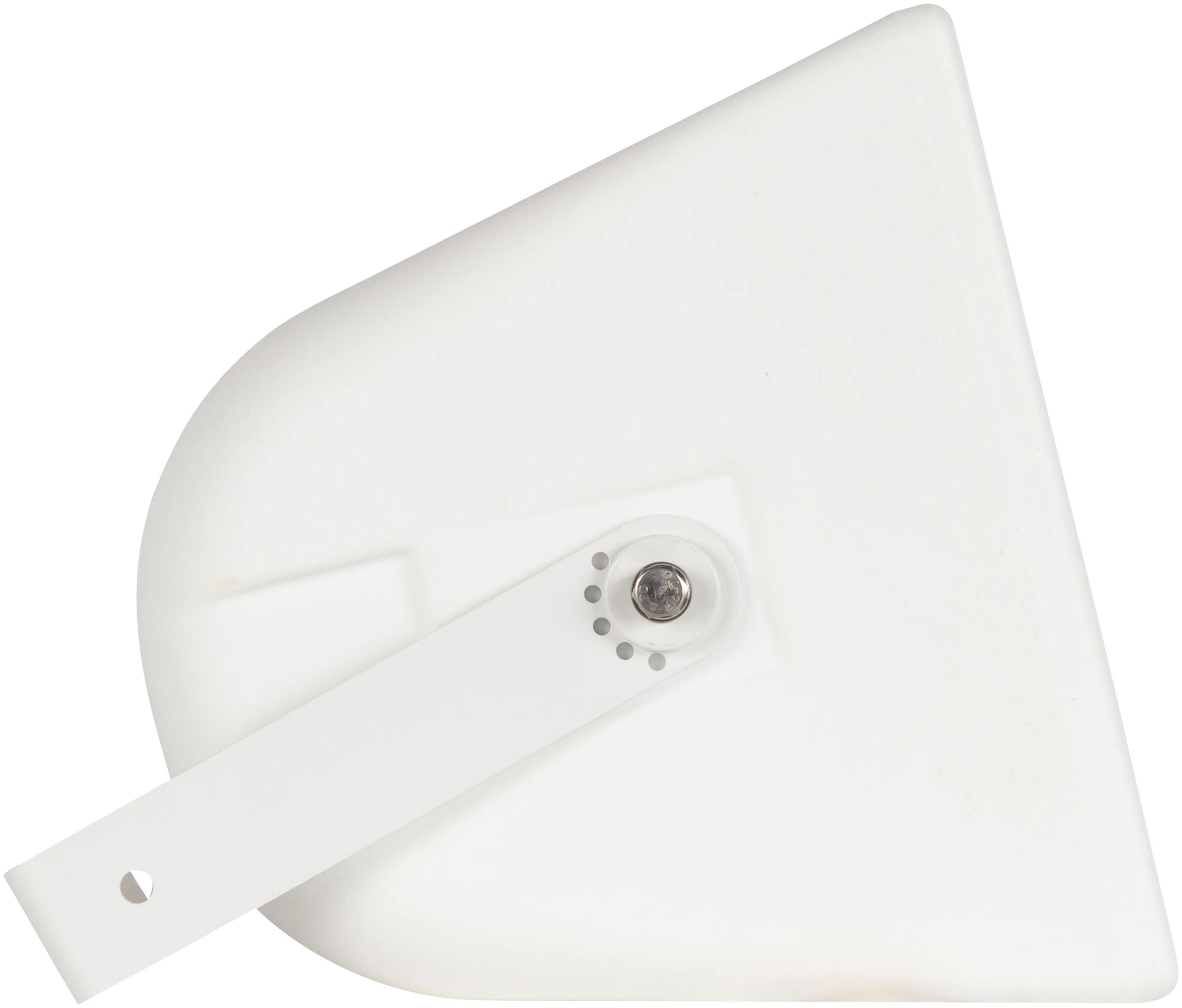

AISI 316L stainless steel U-bracket for secure and corrosion-resistant mounting

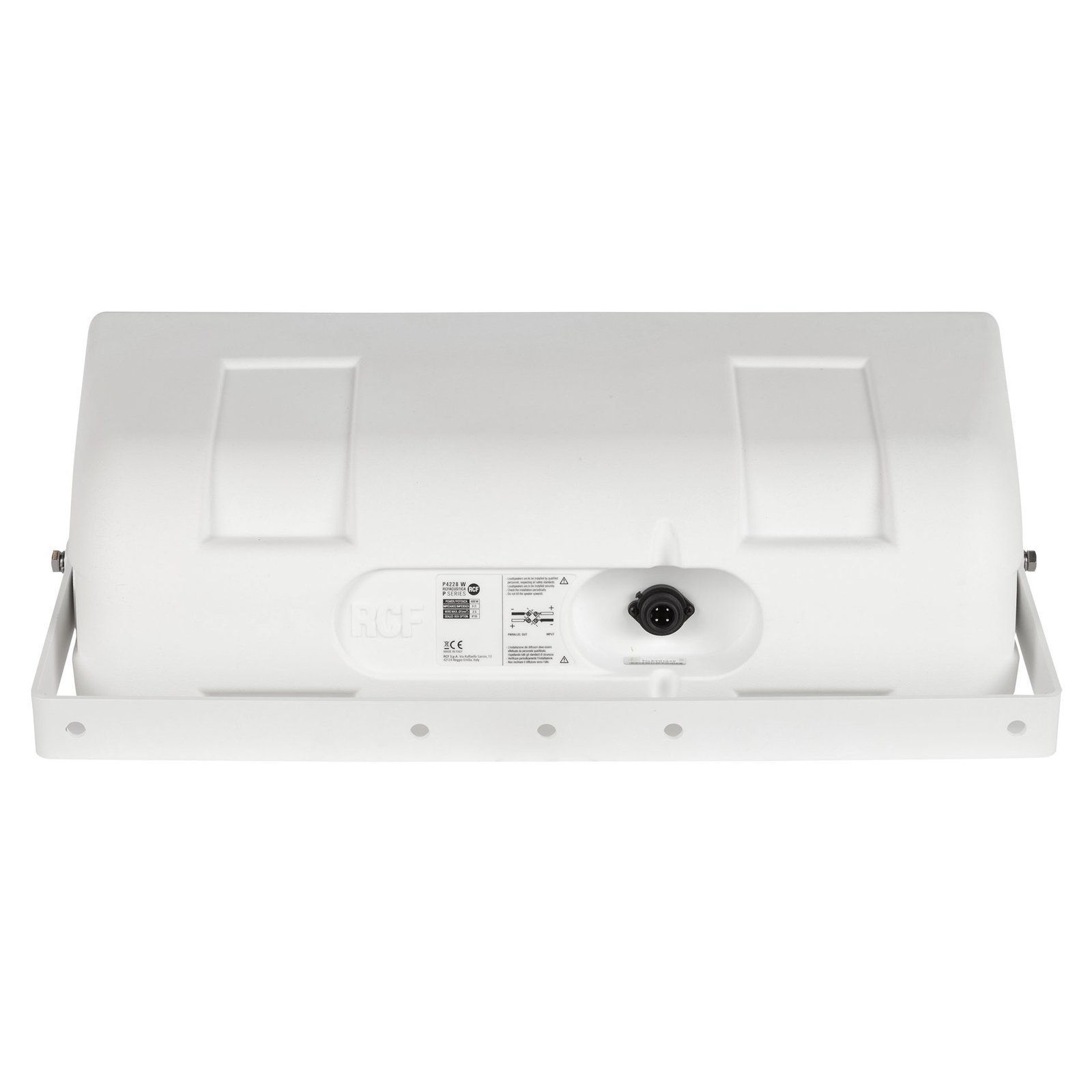

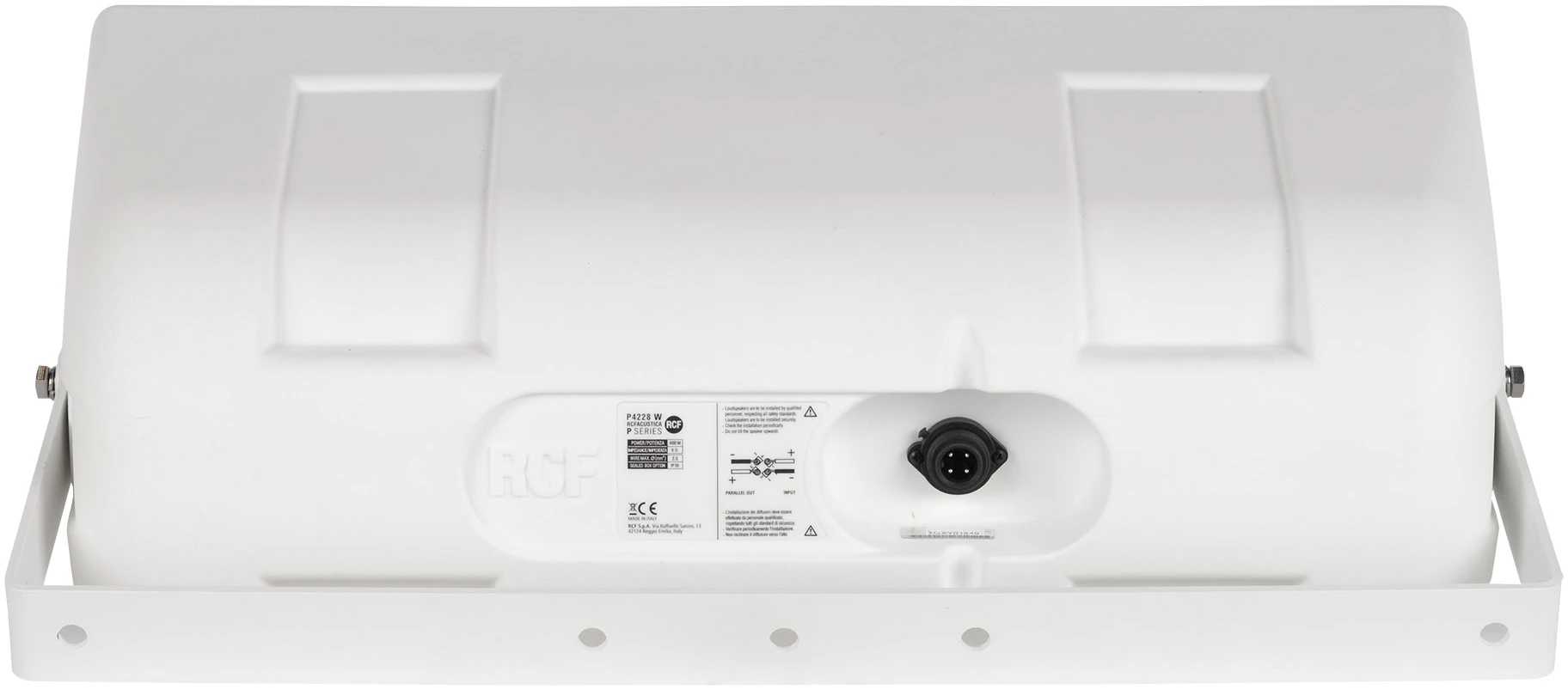

Watertight Amphenol IP67 4-pole input connector
LICC crossover and Active Mosfet Compression Driver Protection for sound quality and safety
CE certified for safety compliance
Specifications
| Frequency Response | 80 Hz – 20,000 Hz |
| Max SPL @ 1m | 129 dB |
| Horizontal Coverage Angle | 110° |
| Vertical Coverage Angle | 60° |
| Directivity Index Q | 9 |
| System Sensitivity | 97 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 400 W |
| Peak Power Handling | 1600 W PEAK |
| Protection | Dynamic active Mosfet |
| Crossover Frequency | 1100 Hz |
| Compression Driver | 1 x 1.4″ neo, 2.5″ v.c |
| Woofer | 2 x 8″, 2.5″ v.c |
| Input Connectors | Amphenol eco/mat IP 67 |
| IP Protection Grade | IP 55 |
| Safety Certification | CE compliant |
| Cabinet Material | PE Low Density |
| Hardware | 4 x M8 inserts, U-bracket, and spacers |
| Grille | White powder-coated aluminum with waterproof coating |
| Color Options | White (RAL 9003) |
| Height | 268 mm / 10.55 inches |
| Width |
