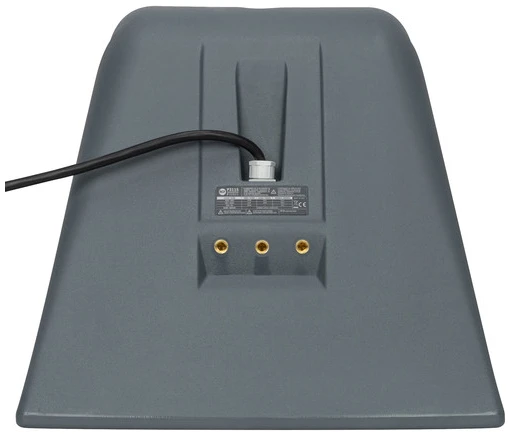

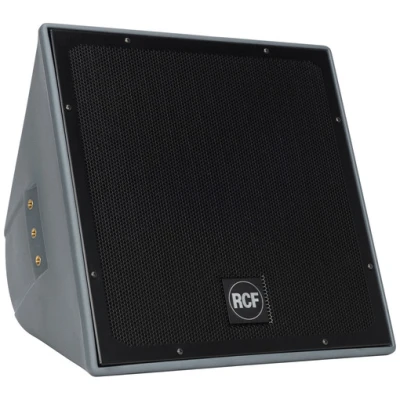

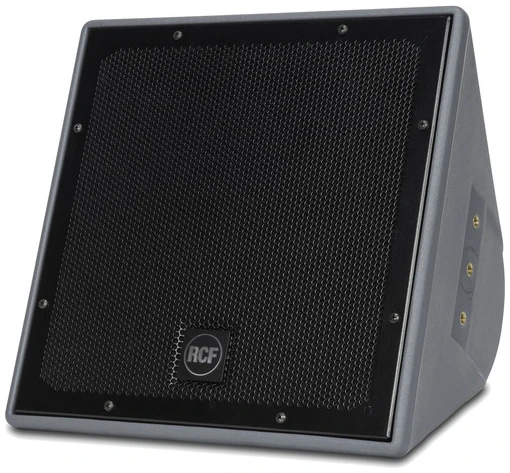

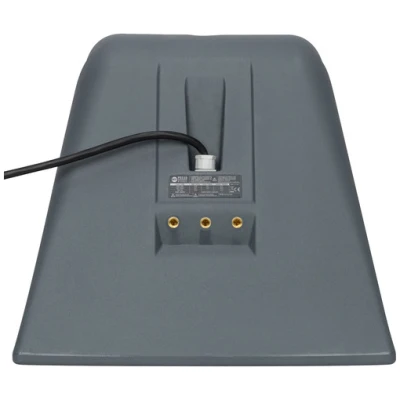

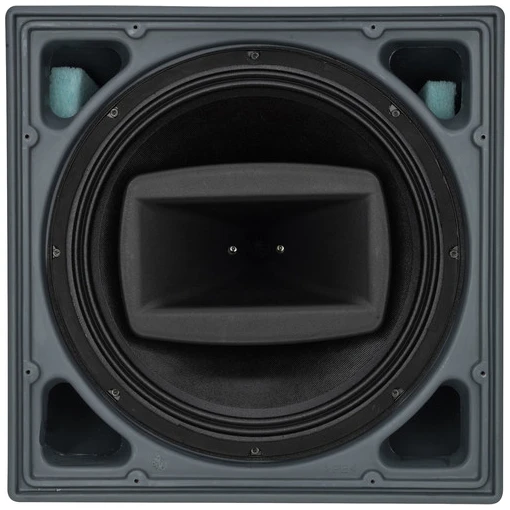

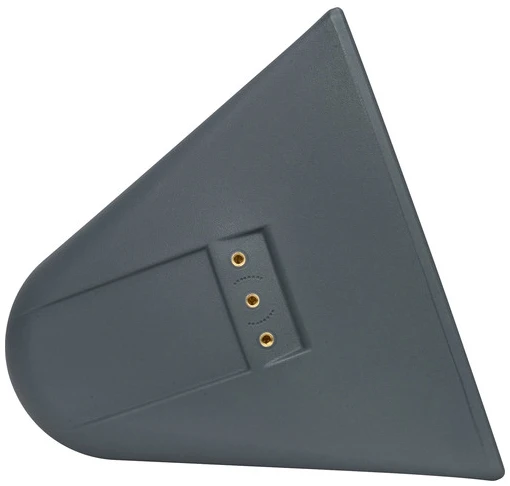

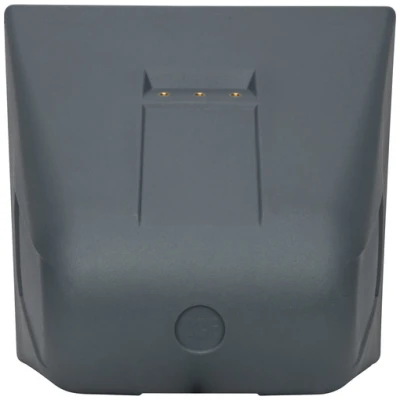

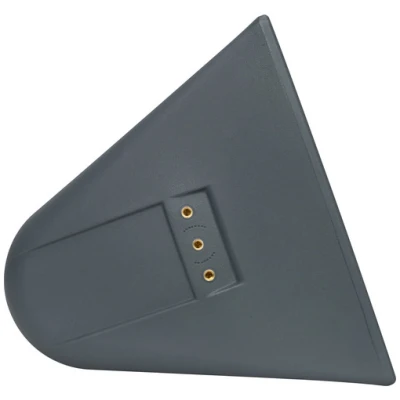

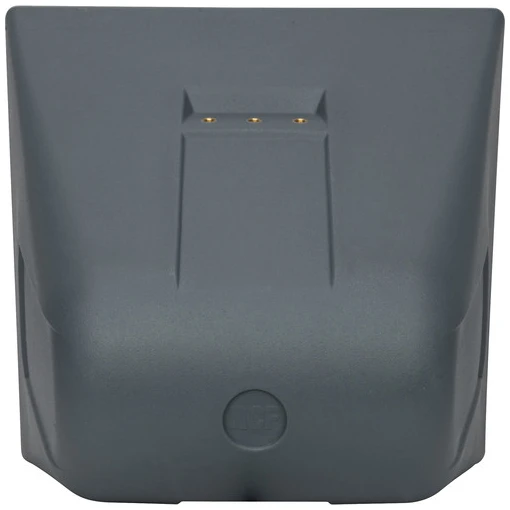

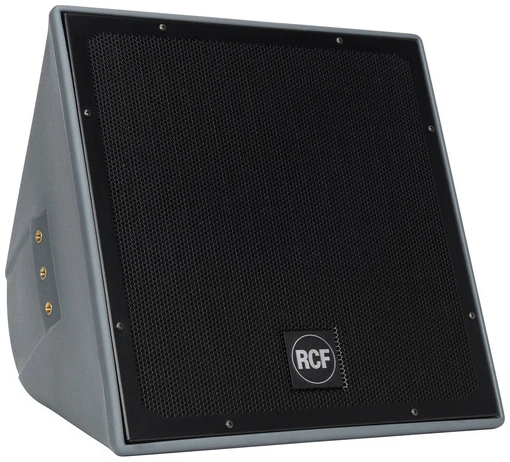

The P 3115T is a high-powered, weatherproof coaxial two-way loudspeaker designed for professional audio applications in both indoor and outdoor environments. It combines a 15″ neodymium woofer with a 2.5″ voice coil and a 1.75″ neodymium compression driver, centrally mounted on a constant directivity CMD horn to deliver wide and consistent coverage at 90° x 60°. The system offers a high SPL of 129 dB and operates over a wide frequency range from 75 Hz to 20,000 Hz. The integrated LICC crossover and Active Mosfet Compression Driver Protection (AMCDP) ensure reliable performance and component protection. A built-in 100V line transformer allows for distributed audio applications, with selectable power taps. The UV-resistant roto-molded PE cabinet meets IP55 standards for environmental durability and includes 12 M10 brass inserts and a corrosion-resistant AISI 316L stainless steel U-bracket with spacers for flexible installation. An aluminum grille with water-repellent backing and a rotatable logo plate completes the rugged design.
Features
300 W RMS, 1200 W peak power handling
129 dB maximum SPL
75 Hz – 20,000 Hz frequency response
15″ neodymium woofer with 2.5″ voice coil
1.75″ v.c. neodymium compression driver
90° x 60° CMD constant directivity horn
Weatherproof IP55 cabinet with UV protection
Built-in 100V line transformer with selectable power taps

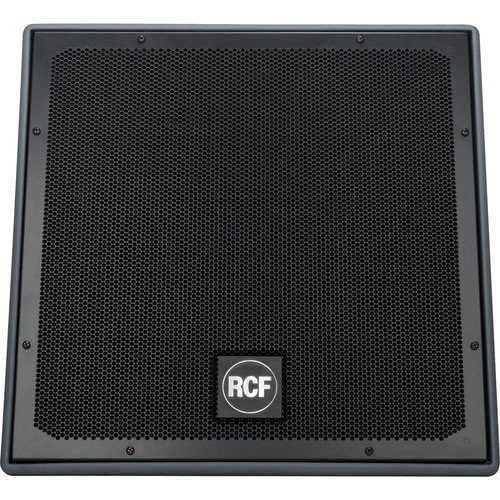

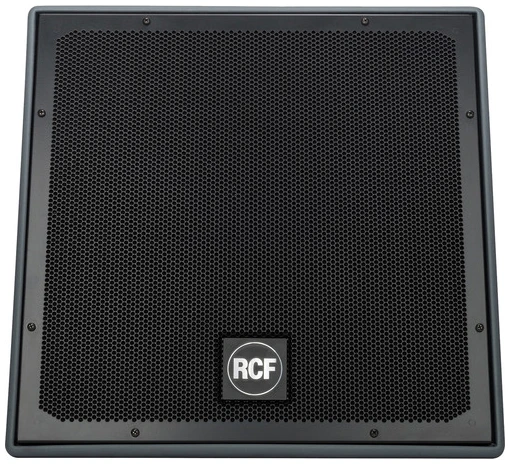

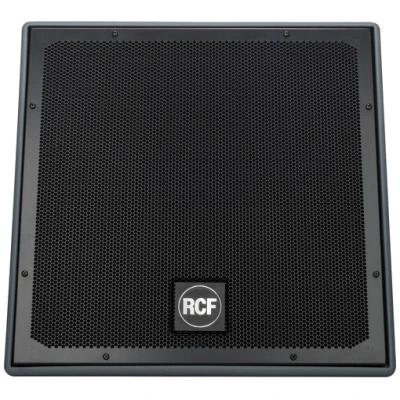

Powder-coated aluminum grille with water-repellent backing
AISI 316L stainless steel U-bracket and spacers
LICC crossover and AMCDP protection
CE compliant
Specifications
| Frequency Response | 75 Hz ÷ 20,000 Hz |
| Max SPL @ 1m | 129 dB |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 60° |
| Directivity Index Q | 13 |
| System Sensitivity | 98 dB |
| Amplification | Full Range |
| Nominal Impedance | 16 ohm |
| Power Handling | 300 W |
| Peak Power Handling | 1200 W PEAK |
| Protection | Dynamic active Mosfet |
| Crossover Frequency | 1300 Hz |
| Compression Driver | 1.0″, 1.5″ v.c |
| Woofer | Coaxial 15″, 2.5″ v.c |
| Input Connectors | Neoprene Cable |
| Constant Voltage Transformer | 100 V |
| Power Tap 1 | 120 W – 83 ohm |
| Power Tap 2 | 60 W – 167 ohm |
| Power Tap 3 | 30 W – 333 ohm |
| IP P
