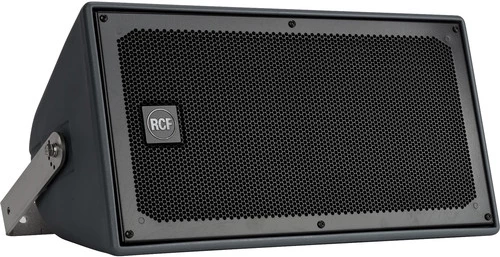

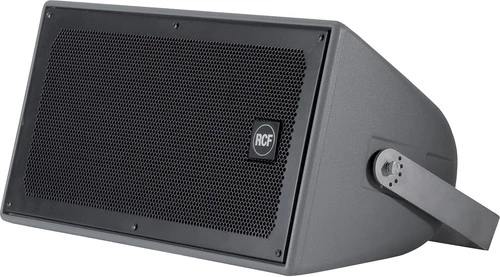

The P 3108 is a high-performance, weatherproof two-way loudspeaker engineered for demanding audio applications in both indoor and outdoor environments. It features an 8″ neodymium woofer with a 2.5″ voice coil and a 1.5″ neodymium compression driver mounted on a constant directivity CMD horn, delivering wide and even sound dispersion at 90° x 60°. With 300 W RMS and 125 dB max SPL, it ensures powerful and clear audio reproduction across its broad frequency range of 80 Hz to 20,000 Hz. The rugged, single-piece PE low-density cabinet is UV-resistant and meets IP55 standards for protection against dust and water. Internally, it incorporates a LICC crossover and Active Mosfet Compression Driver Protection (AMCDP) for enhanced reliability. The speaker includes an AISI 316L stainless steel U-bracket for mounting and features an Amphenol IP67-rated 4-pole connector for secure and weatherproof cable connections. A powder-coated aluminum grille with water-repellent fabric and rotatable logo adds further resilience and flexibility in installation.
Features
300 W RMS, 1200 W peak power handling
125 dB maximum SPL
80 Hz – 20,000 Hz frequency response

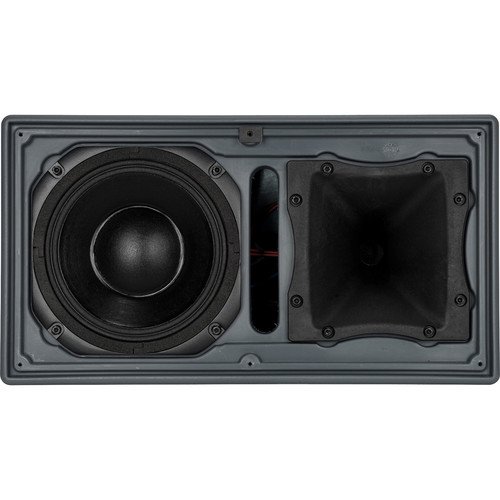

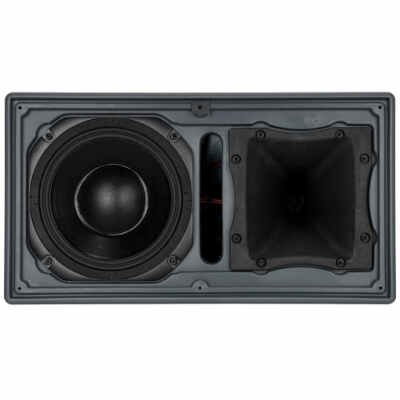

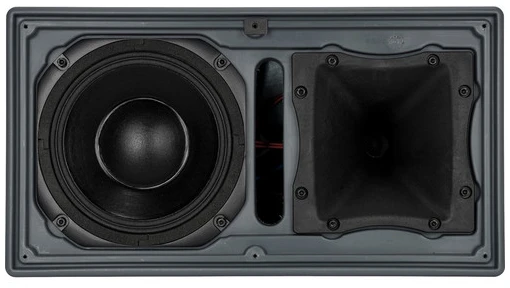

8″ neodymium woofer with 2.5″ voice coil
1″ compression driver with 1.5″ voice coil
90° x 60° CMD constant directivity horn
IP55 weatherproof cabinet with UV protection
Powder-coated aluminum grille with water-repellent backing

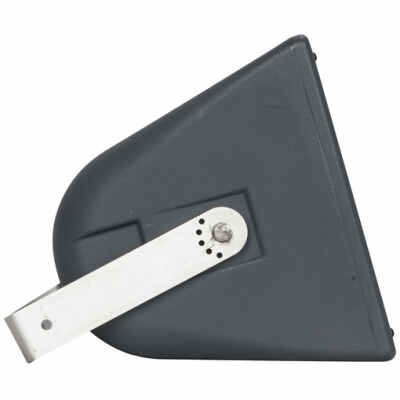

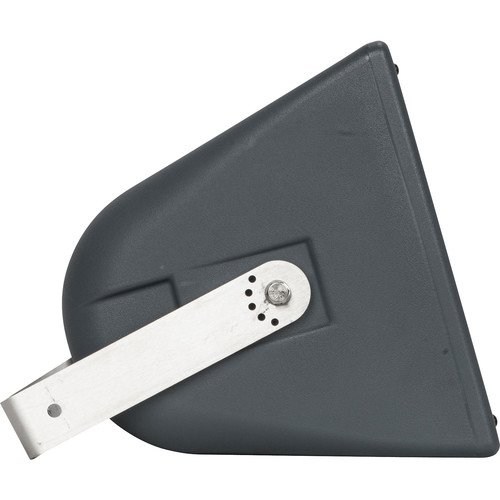

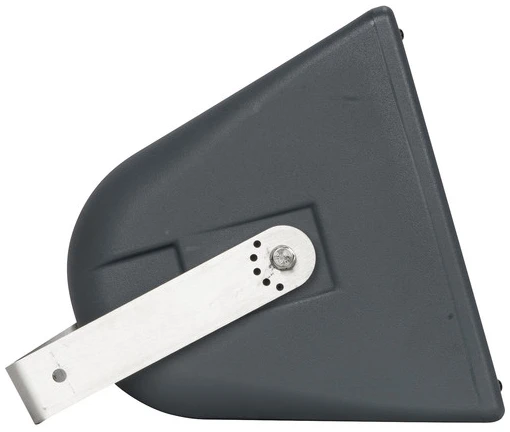

AISI 316L stainless steel U-bracket with spacers

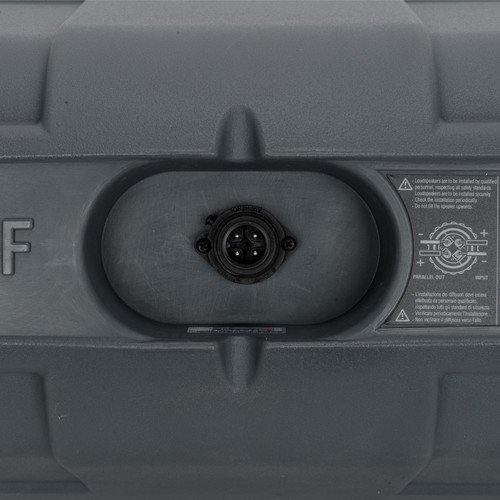

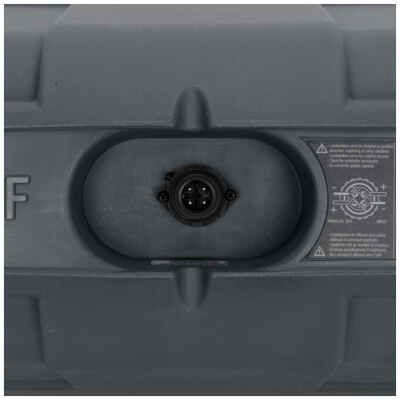

Amphenol IP67-rated 4-pole input connector
LICC crossover and AMCDP circuit
CE compliant
Specifications
| Frequency Response | 80 Hz ÷ 20,000 Hz |
| Max SPL @ 1m | 125 dB |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 60° |
| Directivity Index Q | 11 |
| System Sensitivity | 94 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 300 W |
| Peak Power Handling | 1200 W PEAK |
| Protection | Dynamic active Mosfet |
| Crossover Frequency | 1800 Hz |
| Compression Driver | 1 x 1.0″, 1.5″ v.c |
| Woofer | 1 x 8″, 2.5″ v.c |
| Input Connectors | Amphenol eco/mat IP67 |
| IP Rating | IP 55 |
| Safety Compliance | CE compliant |
| Cabinet Material | Rotomolded PE, UV-resistant |
| Hardware | 4 x M8 inserts, AISI 316L U-bracket with 2 spacers |
| Grille | Powder-coated aluminum with waterproof backing |
| Color | Grey |
| Height | 266 mm / 10.47 inches |
| Width | 493 mm / 19.41 inches |
| Depth | 250 mm / 9.84 inches |
