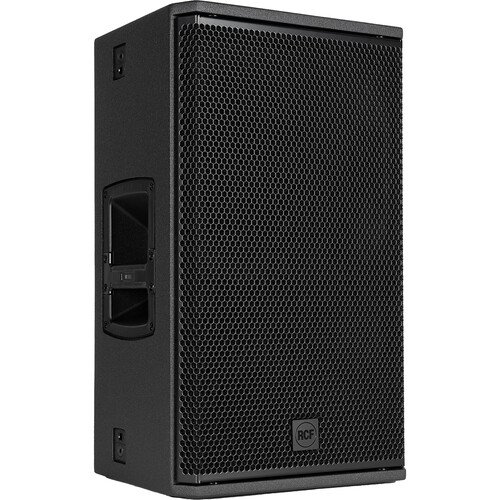

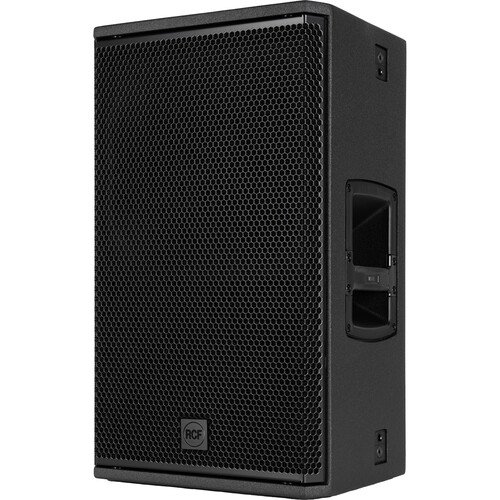

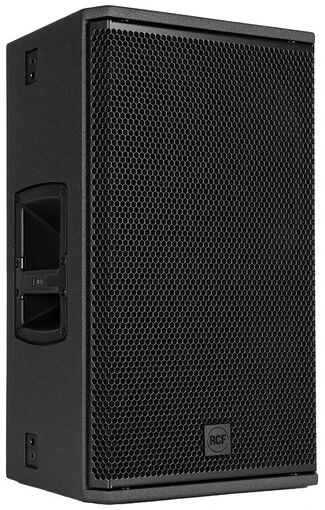

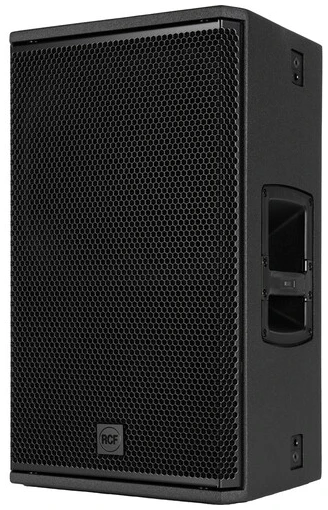

NX 932-A is built to provide exceptional audio quality for sound providers, DJs, and small bands. It features a 3″ titanium/neodymium compression driver and a 12″ woofer, powered by a 2100W Class-D amplifier. The speaker delivers precise 100° x 70° coverage with up to 132 dB SPL output. Incorporating RCF’s proprietary FiRPHASE technology and the advanced Bass Motion Control system, it offers outstanding clarity and tight low-end performance. Its solid plywood cabinet is lightweight yet robust, designed for versatility with multiple rigging points and quick lock compatibility. Whether used as a FOH speaker, stage monitor, or satellite, the NX 932-A guarantees reliable, high-quality audio in any environment.
Features
Up to 132 dB Sound Pressure Level
2100W Class-D Bi-Amplification
45–20000 Hz linear frequency response

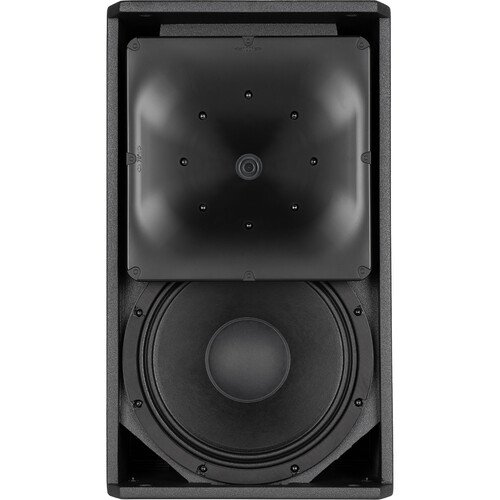

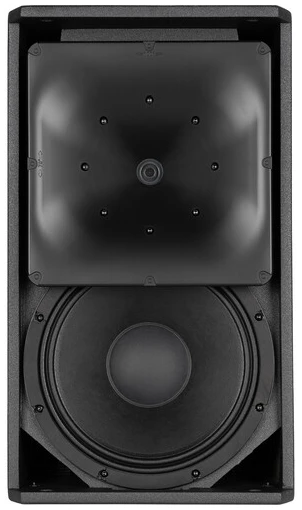

3″ Titanium/Neodymium Compression Driver
12″ Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management

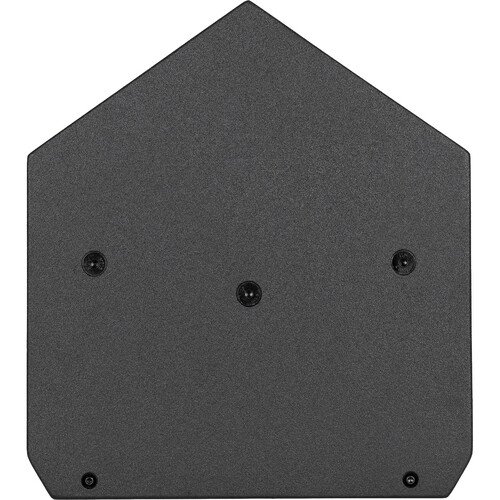

Six M10 and four Quick Lock rigging points
Specifications
| Frequency Response | 45 Hz ÷ 20000 Hz |
| Max SPL @ 1m | 132 dB |
| Horizontal Coverage | 100° |
| Vertical Coverage | 70° |
| Compression Driver | 1 x 1.4”, 3.0” v.c titanium/neodymium |
| Woofer | 1 x 12”, 2.5” v.c |
| Input Signal | Balanced / Unbalanced |

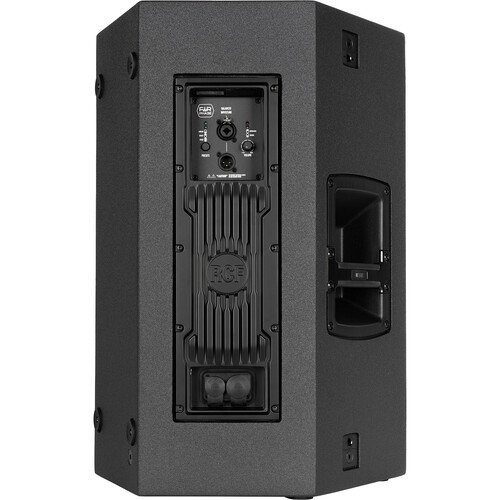

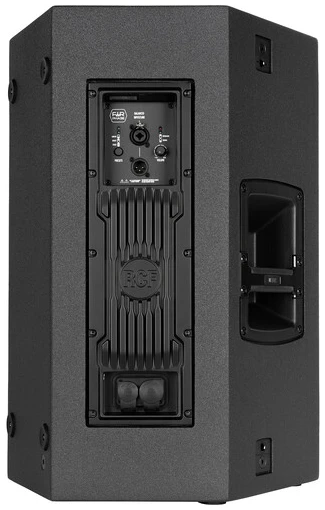

| Input Connectors | Combo XLR/Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
| Crossover Frequency | 700 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Linear, Boost, Stage, Volume |
| Total Power | 2100 W Peak |
| High Frequencies | 700 W Peak |
| Low Frequencies | 1400 W Peak |
| Cooling | Convection |
| Power Connections | Powercon TRUE1 TOP IN/OUT |
| Cabinet Material | Plywood |

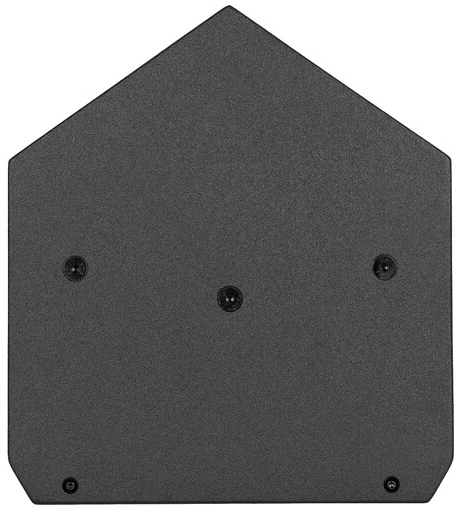

| Hardware | M10 points, quick lock pin seats |

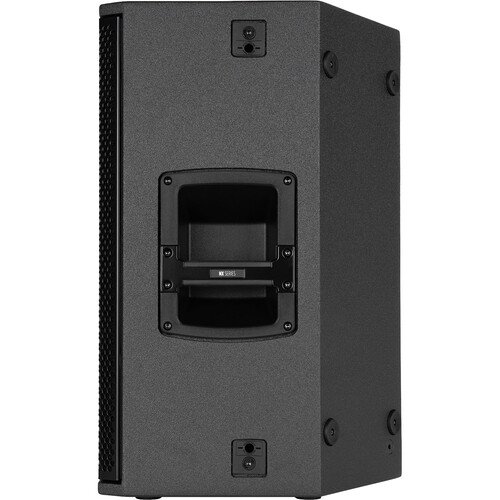

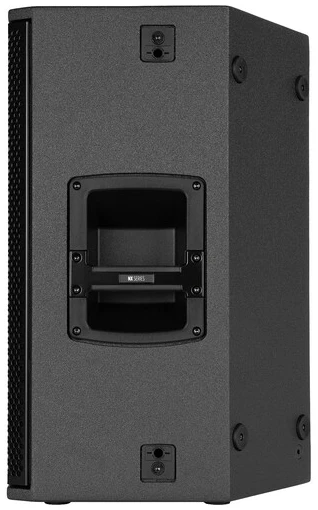

| Handles | 1 x Side |

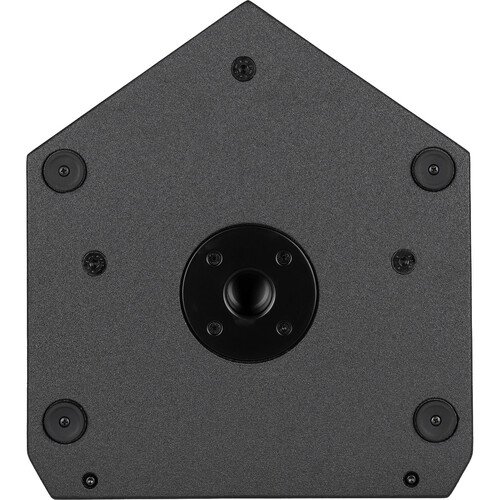

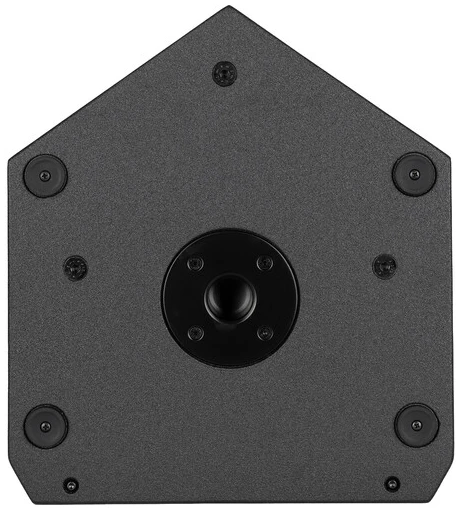

| Pole Mount | 35 mm insert |

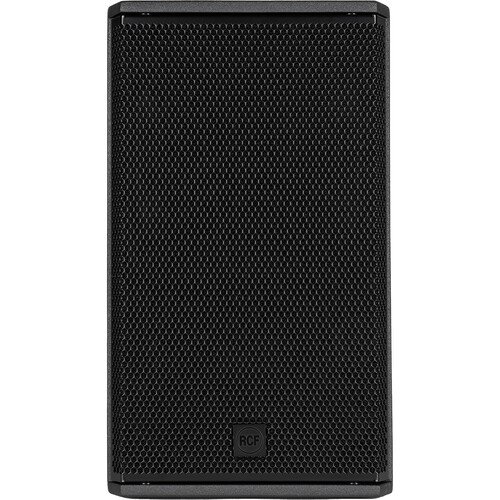

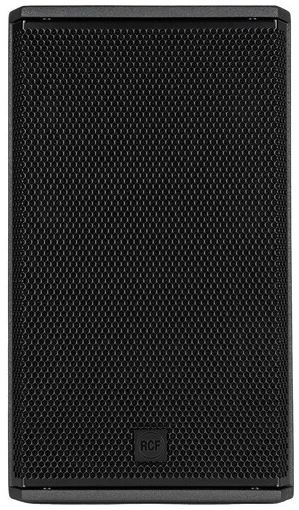

| Grille | Steel |
| Color | Black, White |
| Height | 620 mm / 24.41 inches |
| Width | 362 mm / 14.25 inches |
| Depth | 405 mm / 15.94 inches |
| Weight | 22.9 kg / 50.49 lbs |
| Package Height | 666 mm / 26.22 inches |
| Package Width | 461 mm / 18.15 inches |
| Package Depth | 416 mm / 16.38 inches |
| Package Weight | 26 kg / 57.32 lbs |
| Safety Compliance | CE Compliant |
