Description

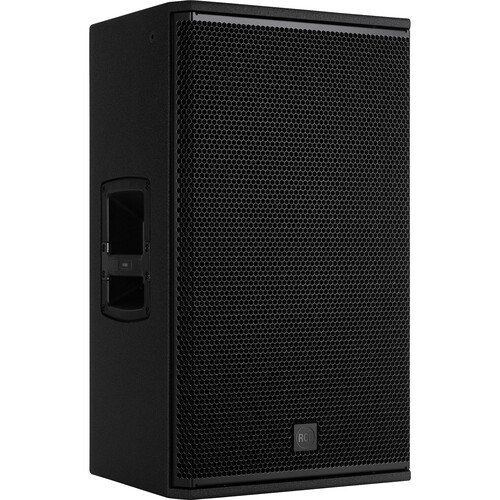

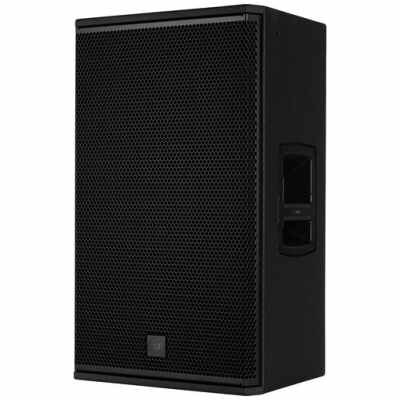

The NX 915-A active speaker is designed from the ground up to meet the demands of live performers, DJs, and audio professionals. It integrates a powerful 2100W two-channel Class-D amplifier with a 1.75″ compression driver and a 15″ woofer to deliver up to 131 dB of crystal-clear, distortion-free sound. Its wide 100° x 60° coverage makes it suitable for standalone use, FOH systems, monitoring, or flown configurations. Incorporating RCF’s proprietary FiRPHASE technology and innovative Bass Motion Control, it provides exceptional phase coherence and deep, punchy bass without compromising woofer stability. With a rugged all-wood cabinet and versatile mounting options, the NX 915-A is road-ready and installation-friendly, making it ideal for dynamic professional use.



Features



  • Up to 131 dB Sound Pressure Level

  • 2100W Class-D Bi-Amplification

  • 45-20000 Hz linear frequency response

  • 1.75″ Compression Driver

  • 15″ Woofer

  • FiRPHASE zero degrees phase technology

  • Bass Motion Control woofer excursion management

  • Constant directivity waveguide (100° x 60°)

  • Rugged plywood cabinet with multiple rigging options

  • Lightweight, fanless design with aluminum heat sink

  • Advanced DSP with soft limiter and input protection

  • Multiple input/output connections (XLR, Jack)



Specifications



Frequency Response 45 Hz – 20000 Hz
Max SPL @ 1m 131 dB
Horizontal Coverage 100°
Vertical Coverage 60°
Compression Driver 1 x 1.0″, 1.75″ v.c
Woofer 1 x 15″, 2.5″ v.c
Input Signal Balanced / Unbalanced
Input Connectors XLR, Jack
Output Connectors XLR
Input Sensitivity -2 dBu / +4 dBu
Crossover Frequency 1600 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Linear, Boost, Stage, Volume
Total Power 2100 W Peak
High Frequency Power 700 W Peak
Low Frequency Power 1400 W Peak
Cooling Method Convection
Power Connection VDE
Cabinet Material Plywood
Hardware M10 x 6 mounting points
Handles One on each side
Pole Mount 35 mm insert
Grille Steel
Color Black
Height 705 mm / 27.76 inches
Width 420 mm / 16.54 inches
Depth 451 mm / 17.76 inches
Weight 24.1 kg / 53.13 lbs
Package Height 751 mm / 29.57 inches
Package Width 506 mm / 19.92 inches
Package Depth 474 mm / 18.66 inches
Package Weight 26.6 kg / 58.64 lbs
Part Number (220-240V) 13000674 / EAN 8024530018979
Part Number (115V) 13000690 / EAN 8024530019051
Safety Certification CE Compliant, EN62368-1
