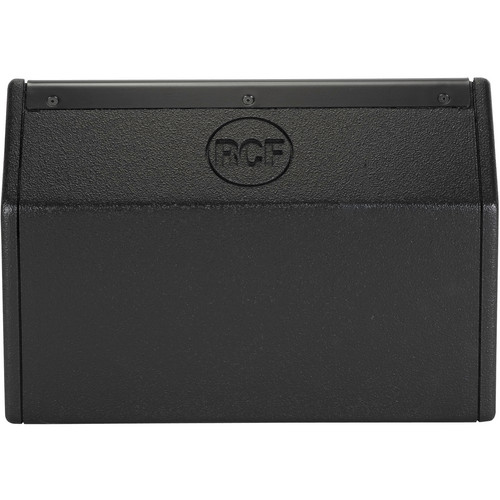

RCF NX 10-SMA Active Coaxial Stage Monitor

The NX 10-SMA is a compact and versatile coaxial active stage monitor, featuring an 800W peak digital bi-amplification system with a newly designed 10″ neodymium woofer and a high-frequency driver with a 1.7″ Kapton dome. With a max SPL of 127 dB and a 60° x 60° dispersion pattern, it delivers excellent clarity and projection in live sound environments. DSP processing includes boost EQ, soft limiter, and protection circuits, along with selectable EQ modes for floor and free field use. Housed in a rugged Baltic birch plywood cabinet with a steel grille and ergonomic handle, this speaker is ideal for both stage monitoring and portable PA use.

Features

• Digital bi-amplification of 800 Watts Peak, 400 Watts RMS

• Max SPL level of 127 dB

• 60° x 60° constant directivity horn

• High-power 10″ woofer with neodymium magnet and 2.5″ voice coil

• High-frequency driver with neodymium magnet, 1.7″ Kapton dome, and 1″ throat

• DSP processing with boost equalizer, soft limiter, and protection

• Input on XLR/jack, output on XLR

• Baltic birch plywood cabinet with durable paint finish

• Ergonomic side handle for easy transport

• 35 mm pole mount for use as a portable PA system

• EQ modes: Floor and Free Field

Specifications
