The MXR 4500/4 is a powerful master unit within the DXT 4000 Voice Alarm system, built for rack-mounted applications in small to medium-scale environments requiring EN 54-16 compliance. With 500 W total output and Class D+ amplification technology, it can manage up to 4 independent zones, ensuring clear and effective emergency communication. The unit includes an onboard DSP platform for precise environmental equalization and audio optimization, improving both speech intelligibility and music performance. Emergency messages can be stored and monitored via SD card, while a spare amplifier switching function provides added reliability. Integrated audio sources are accessible from the front panel, and up to 8 units can be linked in a MASTER-SLAVE setup via the built-in IE 3008 board. Compatible with microphone consoles such as BM 3804, BM 3804FM, ME 3801, and BE 3806 button extensions, the MXR 4500/4 is designed to deliver flexible and dependable voice alarm functionality. Its 4U rack-mountable design, EN 54-4 certified internal power supply, and 48 V DC backup capability make it an ideal choice for critical safety applications.
Features
-
500 W total output power
-
Supports up to 4 independent zones
-
Advanced on-board DSP platform
-
Certified EN 54-16 and EN 54-4
-
Emergency messages on monitored SD card
-
Spare power amplifier switching function
-

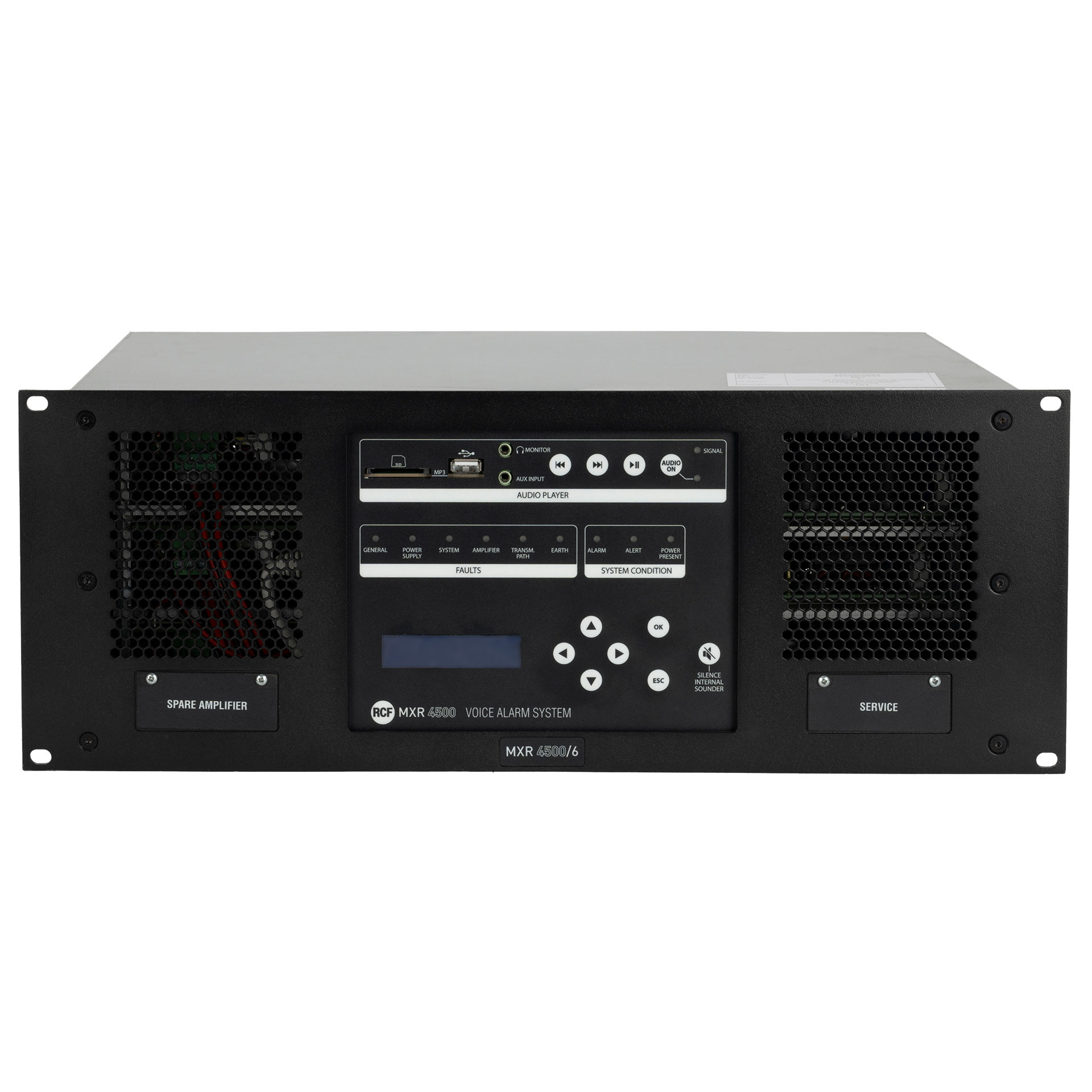

Integrated audio source on front panel
-
Rack mount installation (4U)
-
Expandable up to 8 units in MASTER-SLAVE configuration
Specifications
Number of zones managed | 4 |
Built-in power amplifier | Yes |
Spare amplifier switch | Yes |
Max number of consoles | 4 |
Console buses | 1 |
Emergency audio channels | 1 |
Max connectable units | 8 |
Communication bus | Serial |
Connection cables | J-Type fire-rated |
Emergency messages | Yes (on SD card) |
Amplifier class | D+ |
Number of channels | 4 |
Output power @ 100 V | 500 W RMS |
A/B speaker line | Yes |
Frequency response | 80 Hz ÷ 16 kHz |
Signal/noise ratio | >98 dB |
THD @ 1 kHz | <0.3 % |
Total inputs | 3 (Balanced Mono) |
Line inputs/connectors | 2 / Euroblock, JACK |
VOX | Yes |
Paging inputs/connectors | 1 / Euroblock |
Paging command | Serial |
Paging emergency | Yes |
GPI (monitored/photo) | 6 / 6 / 6 |
Signal outputs/connectors | 1 / JACK |
Power outputs/connectors | 4 / Euroblock |
GPO | 6 |
DSP | Yes |
Tone controls | Yes |
High-pass filter | 20 Hz ÷ 500 Hz |
Configuration | DIP switch, Front panel |
Chime tone | Yes |
Cooling | Convection |
Protections | Short circuit, Thermal, DC, Fuses, VHF |
USB/SD audio source | Yes / Yes |
Operating voltage | 220-240/115 V~ 50/60Hz |
Voltage selection | Internal |
DC power/input | Yes / 48 V |
Power consumption (max) | 700 W |
Safety agency | CE compliant |
EN54-16 certified | Yes |
EN54-4 certified | Yes |
CPR number | 0068-CPR-230/2025 |
Material | Metal |
Color | Black – RAL 9005 |
Rack mounting | 19″, 4U |
Height | 178 mm / 7.01 inches |
Width | 482 mm / 18.98 inches |
Depth | 426 mm / 16.77 inches |
Weight | 12.75 kg / 28.11 lbs |
Package height | 262 mm / 10.31 inches |
Package width | 523 mm / 20.59 inches |
Package depth | 523 mm / 20.59 inches |
Package weight | 16.55 kg / 36.49 lbs |
