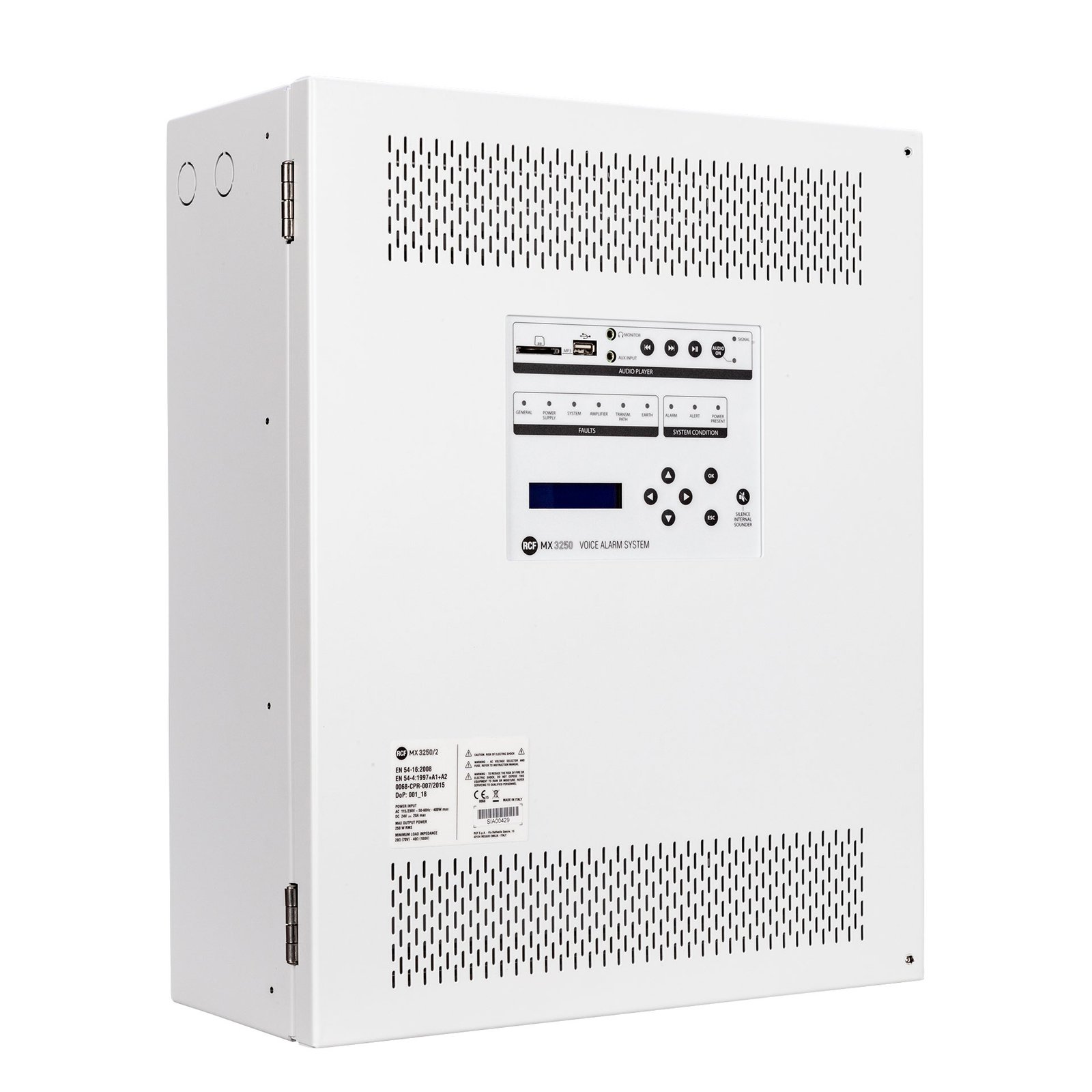

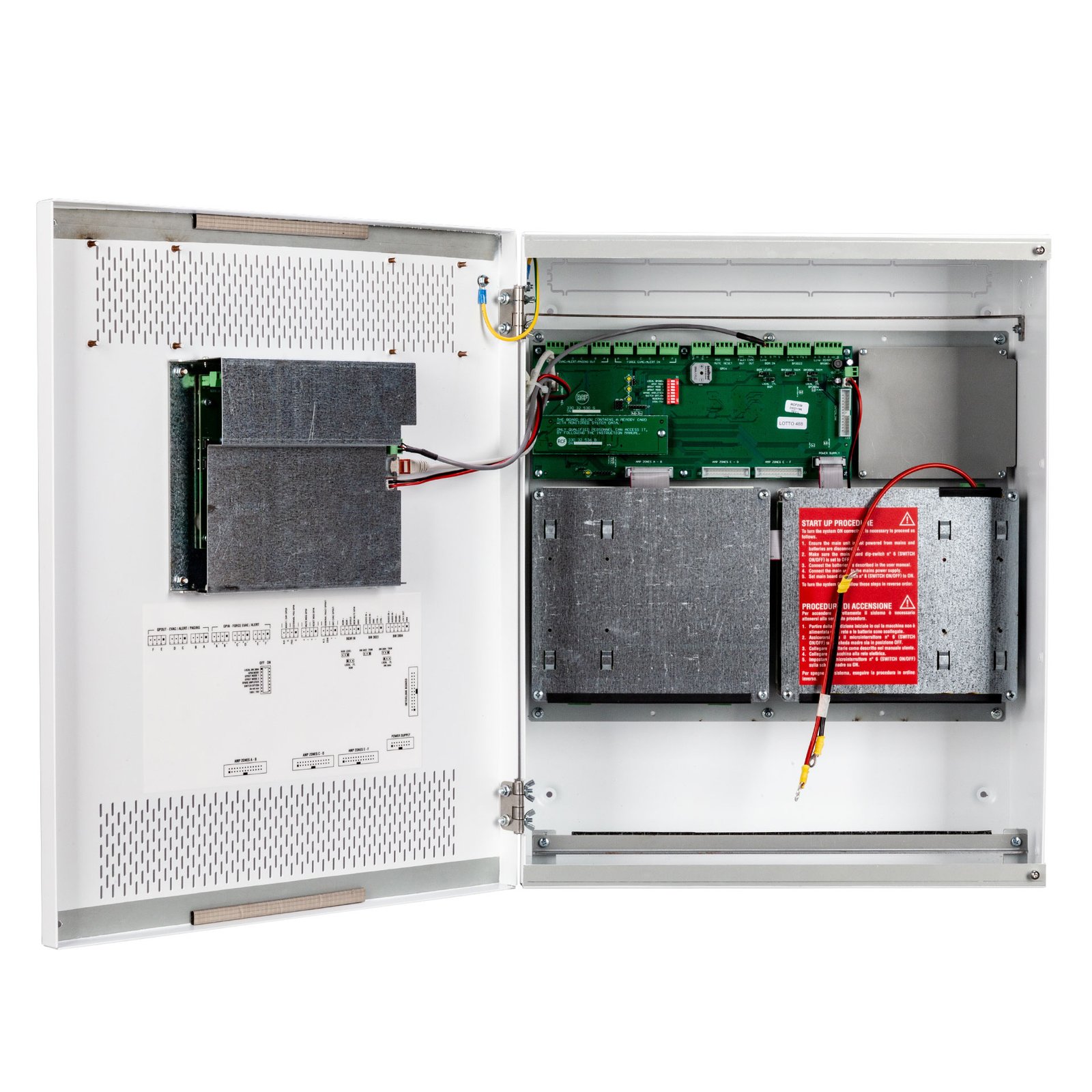

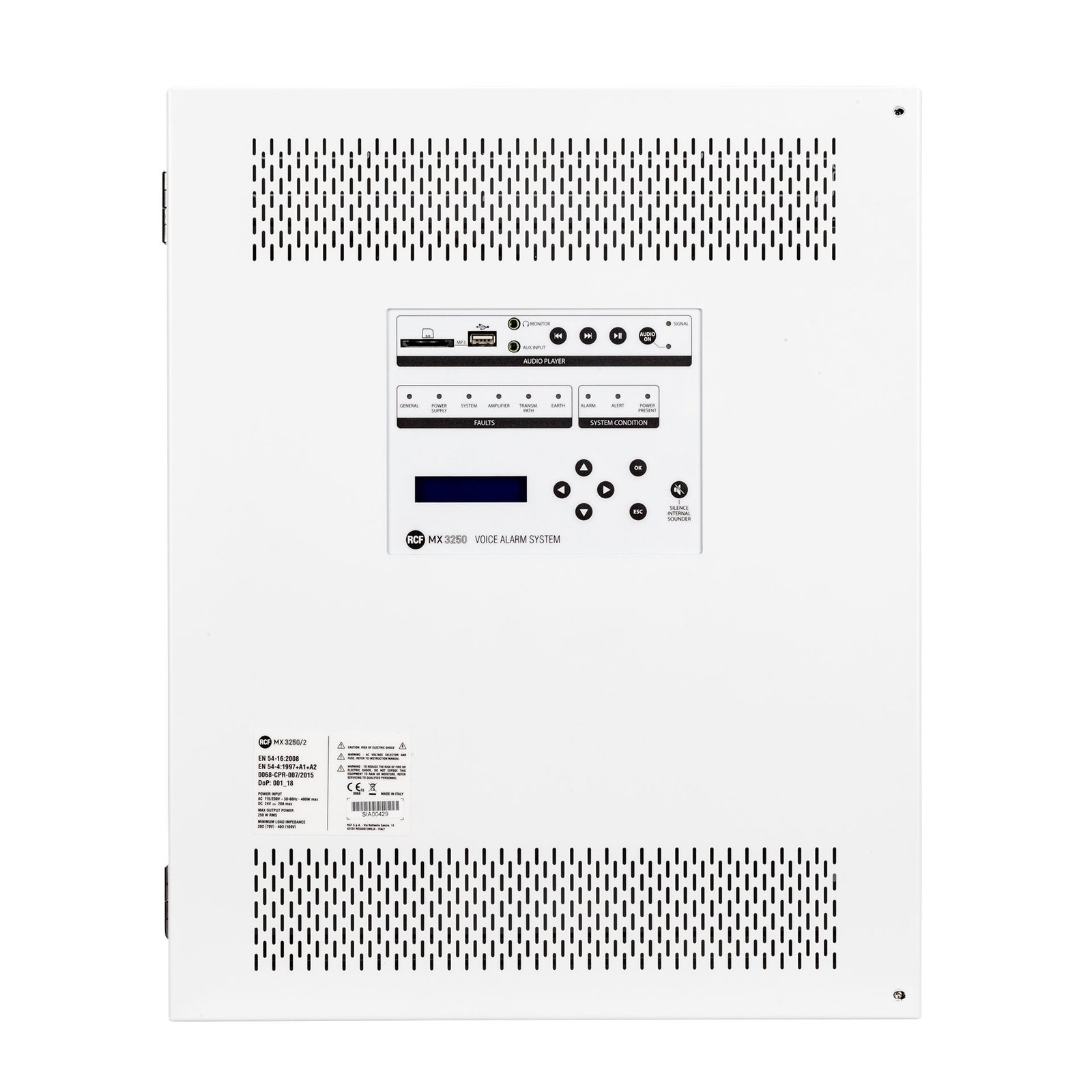

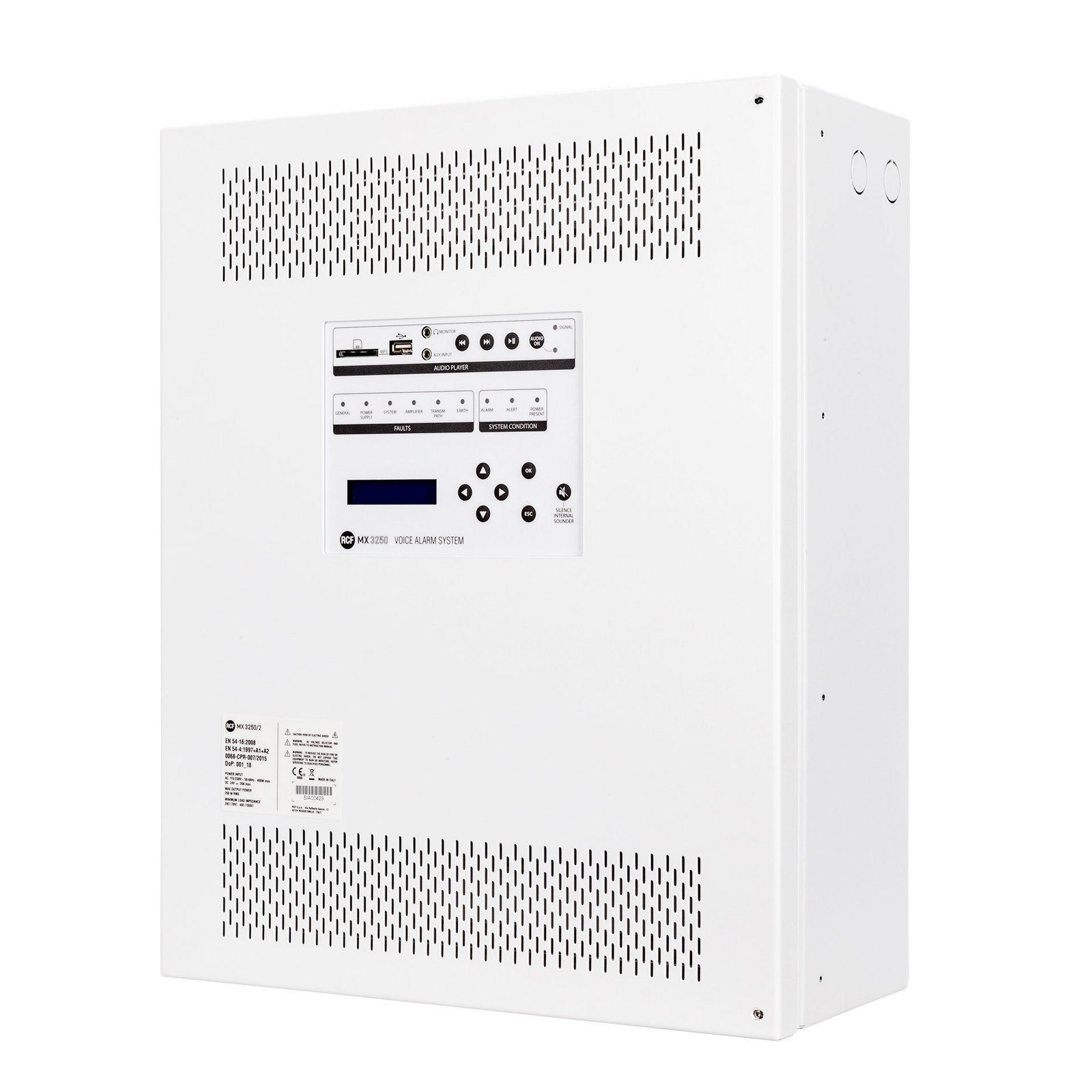

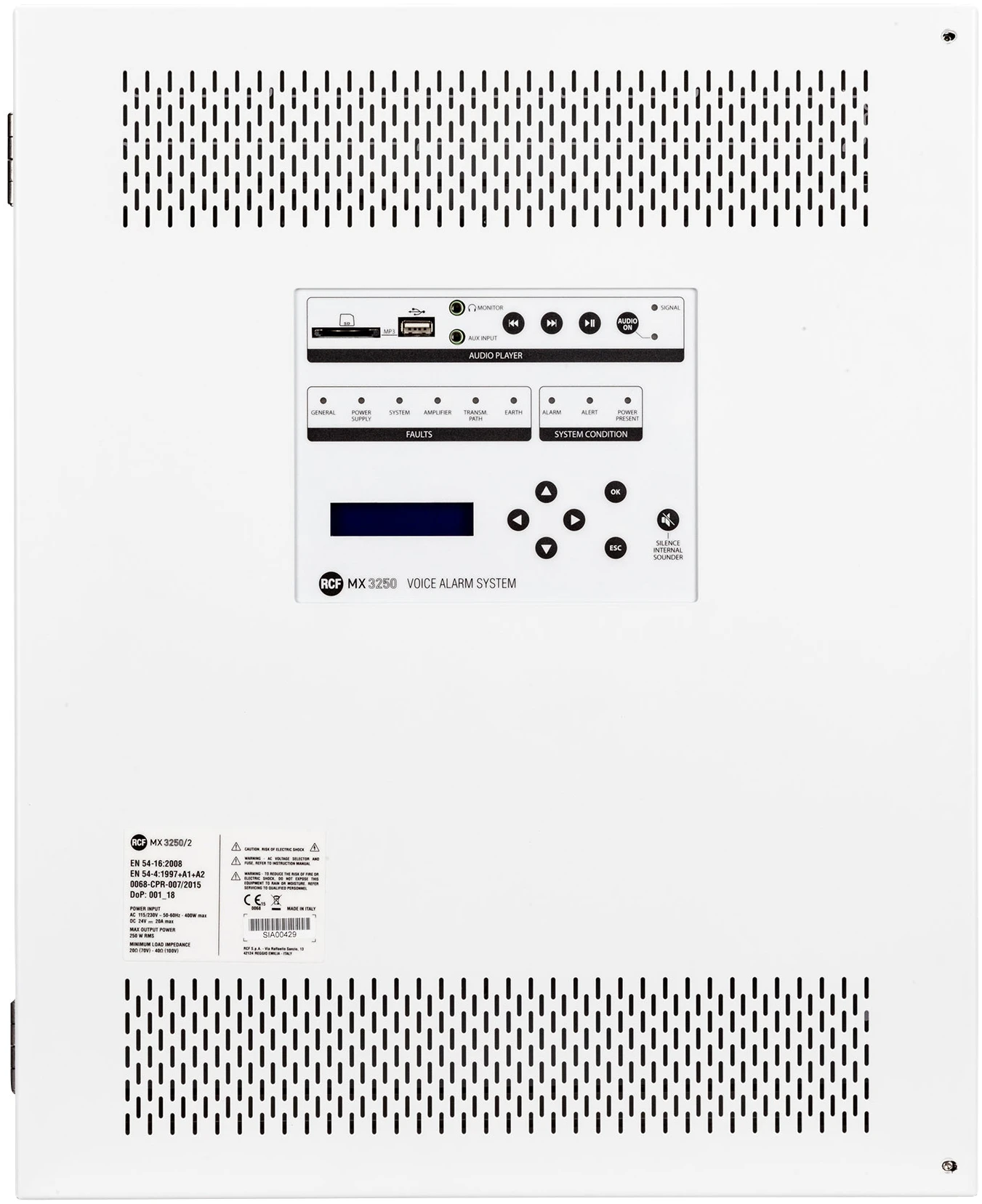

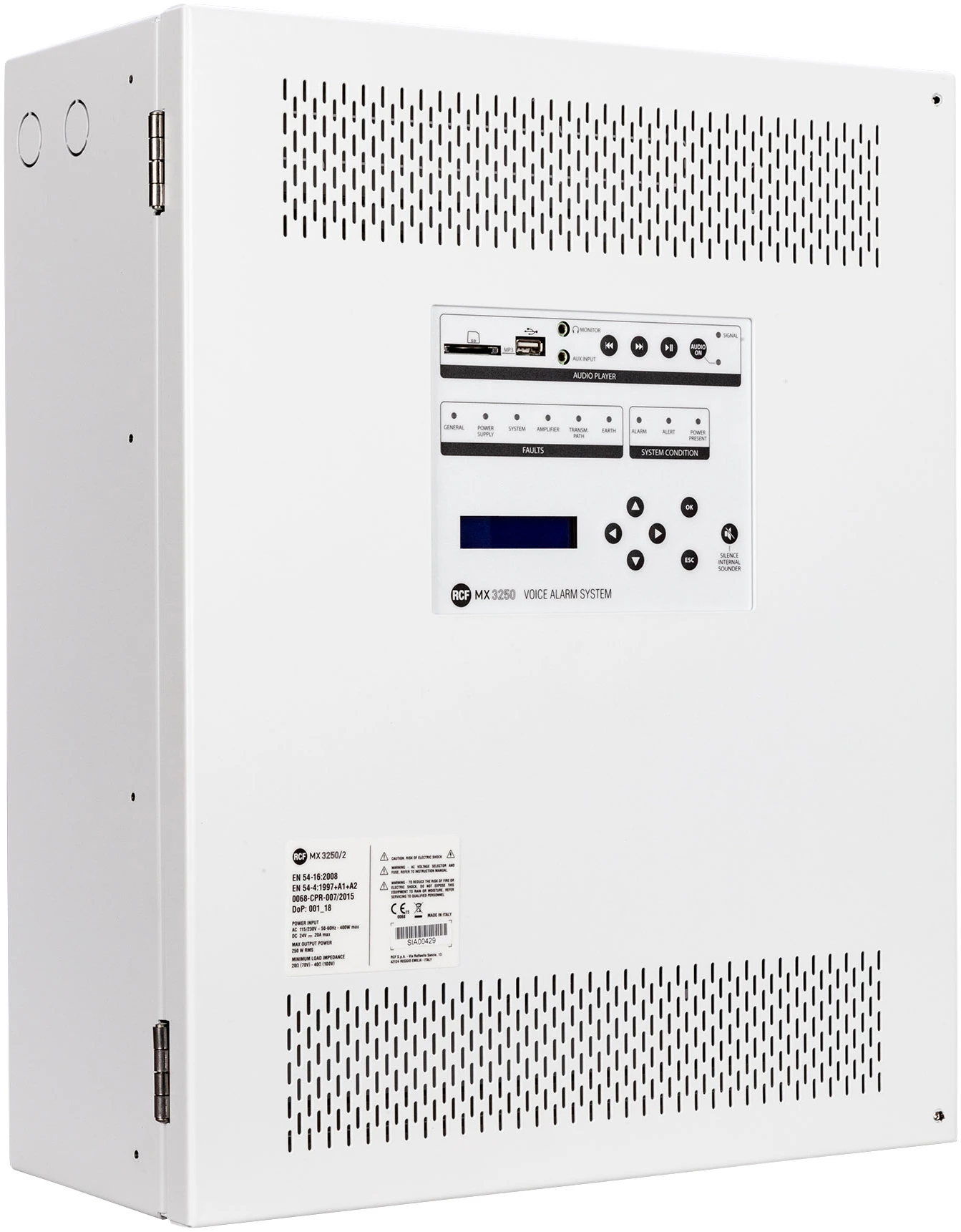

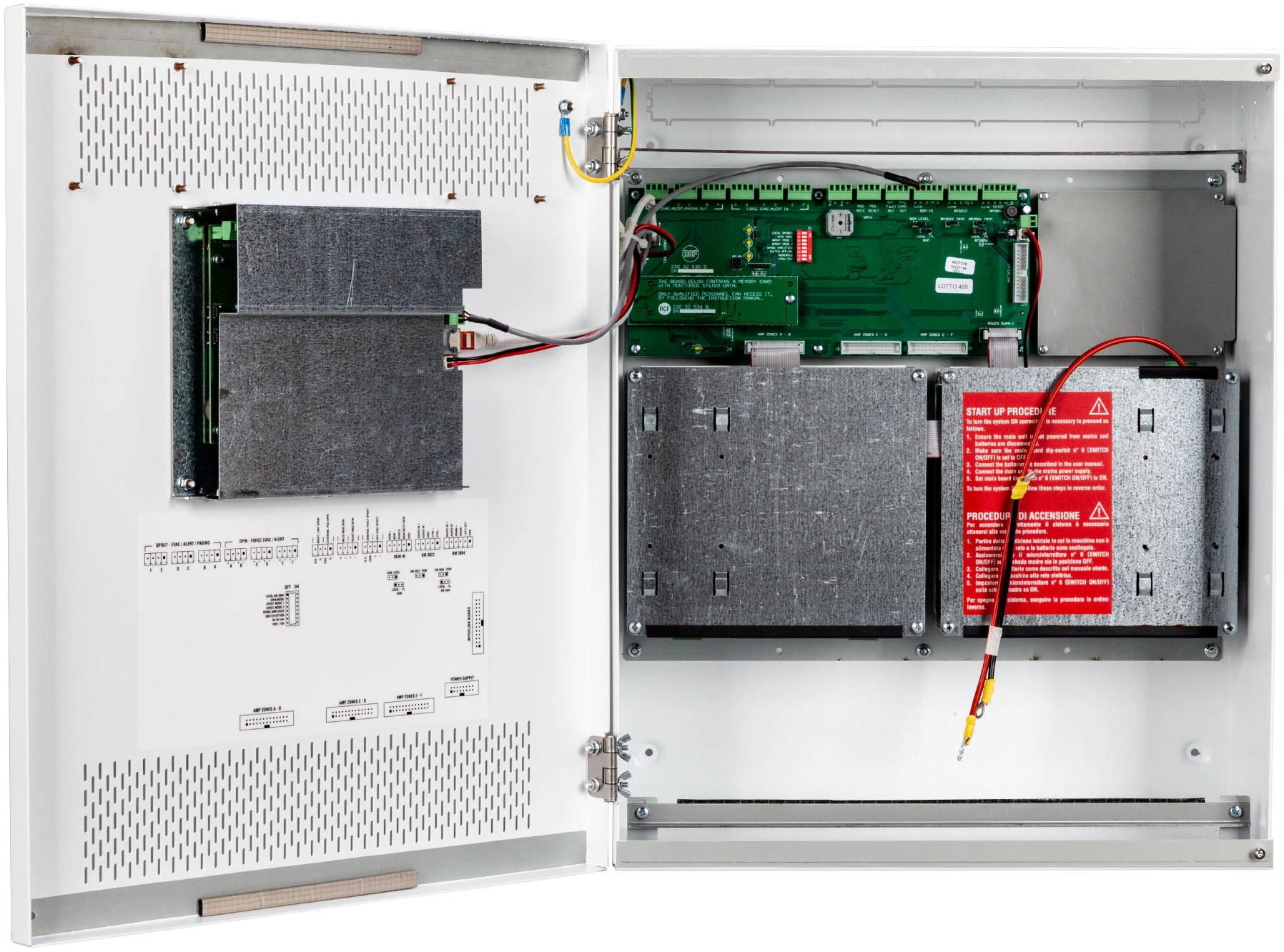

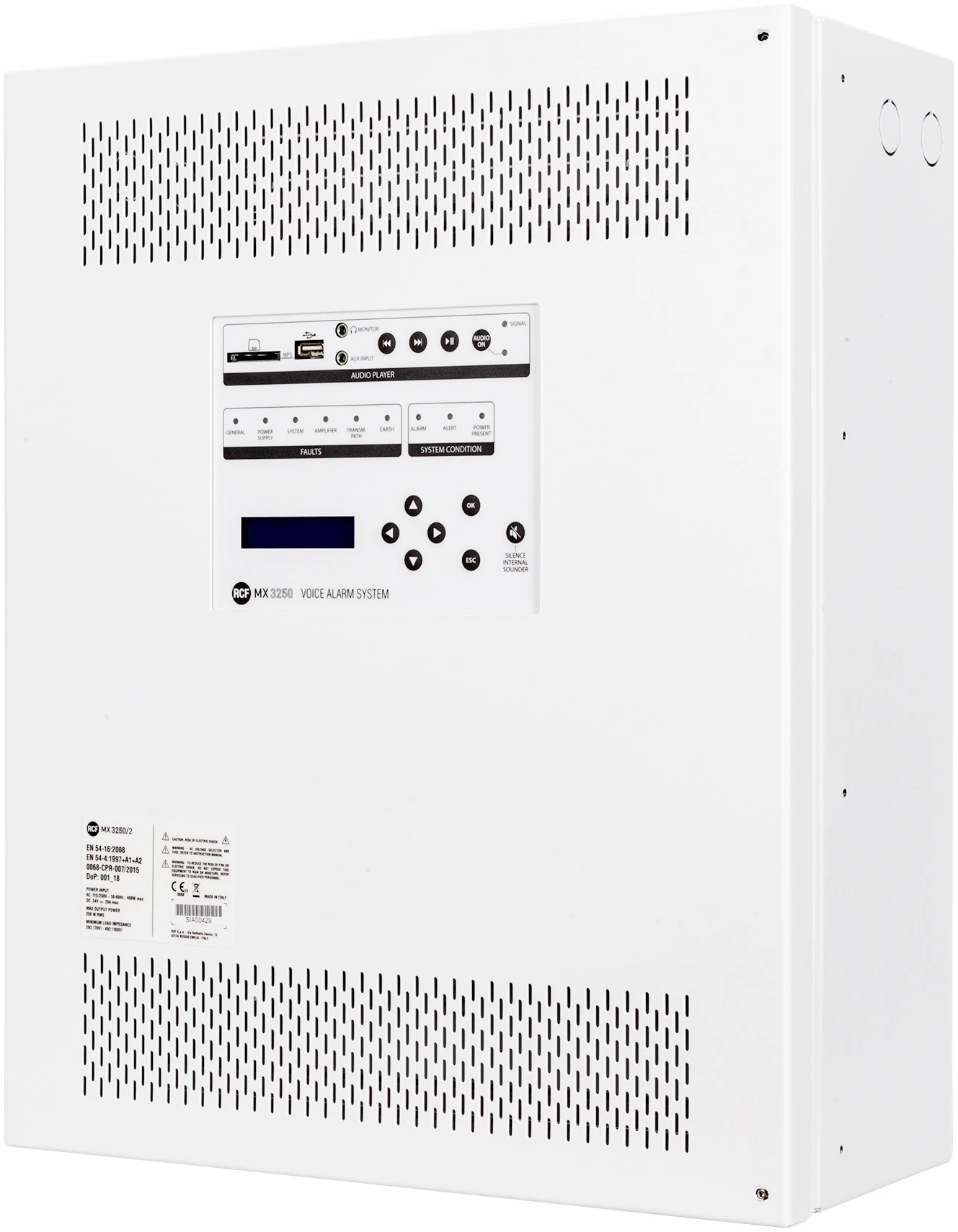

The MX 3250/6 serves as the master unit for the DXT 3000 Voice Alarm system, ideal for small to medium-sized installations that demand EN 54-16 compliance. This unit delivers a total power output of 250 W through its high-efficiency Class D+ amplifier and can control up to 6 independent zones. It includes a spare amplifier switch-over function and supports emergency audio playback via a monitored SD card. The built-in DSP ensures optimal environmental equalization, improving voice clarity and music reproduction. EN 54-4 certification for the internal power supply and backup battery accommodation within the cabinet make it a compact all-in-one solution. It supports integration with BM 3804, BM 3804FM, and ME 3801 emergency consoles, and BE 3806 button extensions for live paging functionality. The MX 3250/6 can be installed in either wall-mount or rack-mount configurations for flexible deployment.
Features
250 W total power
Up to 6 zones controlled
DSP platform on-board
Certified EN 54-16 and EN 54-4
Emergency messages on monitored SD card
Spare power amplifier facility

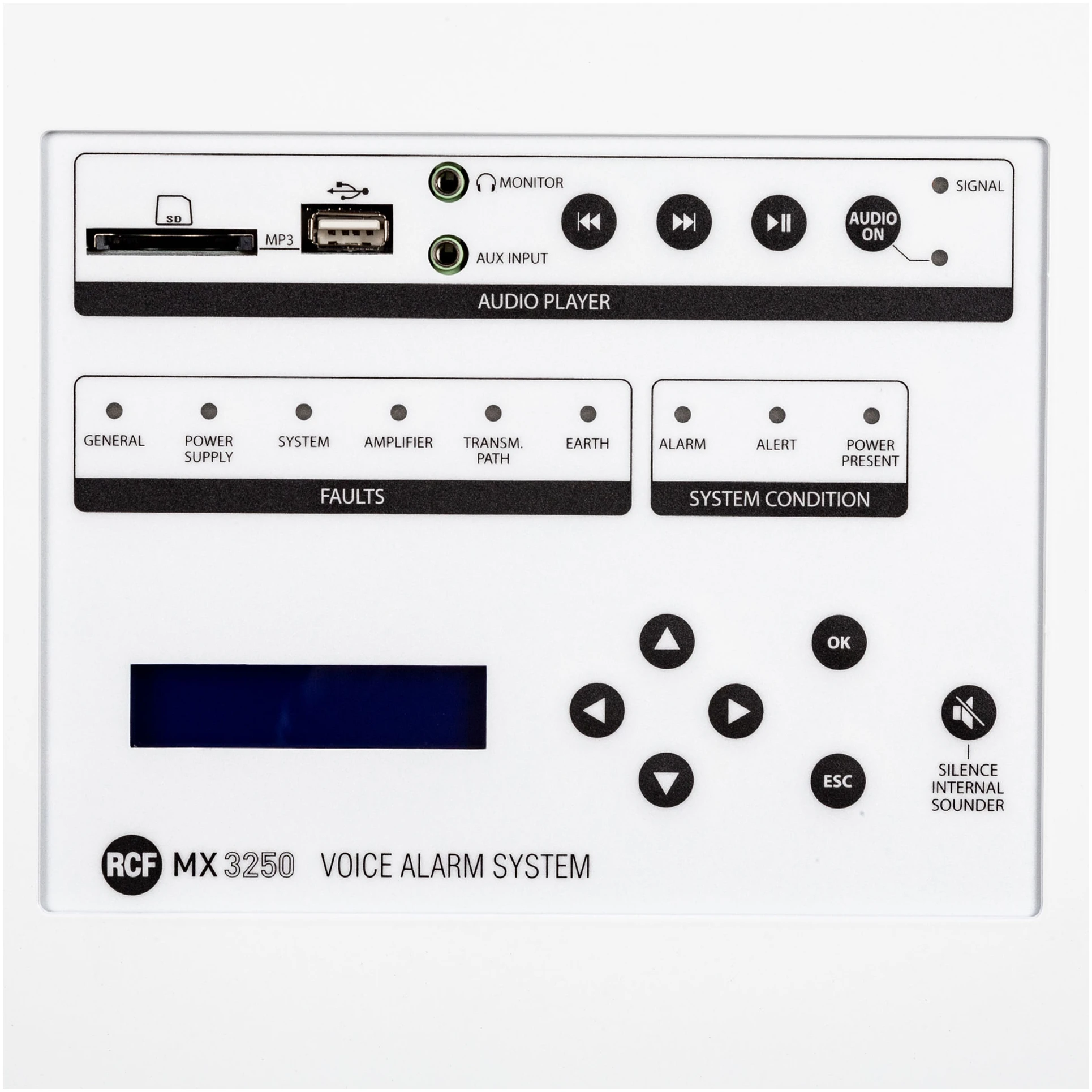

Integrated audio source on front panel
Wall mount or rack mount installation
Specifications
| Number of zones managed | 6 |
| Built-in power amplifier | Yes |
| Spare amplifier switch | Yes |
| Max number of consoles | 4 |
| Console buses | 1 |
| Emergency audio channels | 1 |
| Max connectable units | 8 |
| Communication bus | Serial |
| Connection cables | J-Type fire-rated |
| Emergency messages | Yes (on SD card) |
| Amplifier class | D+ |
| Number of channels | 6 |
| Output power @ 100 V | 250 W RMS |
| A/B speaker line | Yes |
| Frequency response | 80 Hz ÷ 16 kHz |
| Signal/noise ratio | >98 dB |
| THD @ 1 kHz | <0.3 % |
| Total inputs | 3 (Balanced Mono) |
| Line inputs/connectors | 2 / Euroblock, JACK |
| VOX | Yes |
| Paging inputs/connectors | 1 / Euroblock |
| Paging command | Serial |
| Paging emergency | Yes |
| GPI (monitored/photo) | 6 / 6 / 6 |
| Signal outputs/connectors | 1 / JACK |
| Power outputs/connectors | 6 / Euroblock |
| GPO | 6 |
| DSP | Yes |
| Tone controls | Yes |
| High-pass filter | 20 Hz ÷ 500 Hz |
| Configuration | DIP switch, Front panel |
| Chime tone | Yes |
| Cooling | Convection |
| Protections | Short circuit, Thermal, DC, Fuses, VHF |
| USB/SD audio source | Yes / Yes |
| Operating voltage | 220-240/115 V~ 50/60Hz |
| Voltage selection | Internal |
| DC power/input | Yes / 24 V |
| Power consumption (max) | 400 W |
| IP protection grade | IP 30 |
| Safety agency | CE compliant |
| EN54-16 certified | Yes |
| EN54-4 certified | Yes |
| CPR number | 0068-CPR-007/2015 |
| Material | Metal |
| Color | White |
| Rack mounting | 19″, 12U |
| Height | 530 mm / 20.87 inches |
| Width | 430 mm / 16.93 inches |
| Depth | 190 mm / 7.48 inches |
| Weight | 16.92 kg / 37.3 lbs |
| Package height | 304 mm / 11.97 inches |
| Package width | 596 mm / 23.46 inches |
| Package depth | 504 mm / 19.84 inches |
| Package weight | 16.92 kg / 37.3 lbs |
