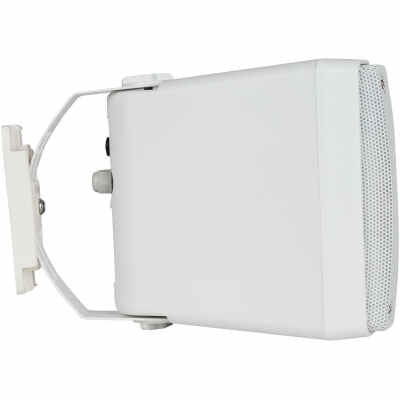

The white version of the RCF MQ 80P combines elegant aesthetics with powerful audio performance, making it ideal for clear voice announcements and background music in both indoor and outdoor environments. Equipped with a 5″ woofer and a 1″ horn-loaded compression driver, it provides consistent 90° x 60° sound coverage and high intelligibility, even in acoustically challenging areas. Its IP55-rated white UV-resistant cabinet (RAL 9016) and durable steel grille offer reliable protection in outdoor installations. The speaker features a rear rotary switch for selecting power taps (30W, 20W, 10W, 5W) or 8-ohm operation. Its compact design and wall-mount bracket ensure easy installation and precise aiming. Ideal for commercial settings where both appearance and performance matter.
Features
5″ woofer and 1″ compression driver
Clear white finish (RAL 9016) for clean, modern installations
Wide sound dispersion: 90° horizontal, 60° vertical
High sensitivity: 94 dB, Max SPL: 114 dB
Power selectable via rear rotary switch: 30W, 20W, 10W, 5W @ 100V
Weatherproof IP55 rating for outdoor use
UV-resistant polystyrene cabinet with steel grille
Quick and flexible installation with wall-mount bracket
Suitable for PA and music systems
Cable input/output connections
Compatible with UP 2321 and UP 2162 amplifiers
Specifications
| Frequency Response (-10 dB) | 100 Hz ÷ 20,000 Hz |
| Max SPL @ 1 m | 114 dB |
| Sensitivity | 94 dB |
| Horizontal Coverage | 90° |
| Vertical Coverage | 60° |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling (RMS) | 60 W |
| Peak Power Handling | 240 W PEAK |
| Crossover Frequency | 3000 Hz |
| Compression Driver | 1 x 1.0″ |
| Woofer | 1 x 5.0″ |
| Input/Output Connectors | Cable |
| Transformer Type | 100 V Constant Voltage |
| Power Taps | 30 W (333 ?), 20 W (500 ?), 10 W (1000 ?), 5 W (2000 ?) |
| IP Rating | IP 55 |
| Safety Compliance | CE compliant |
| Cabinet Material | UV-resistant plastic (white RAL 9016) |
| Grille Material | Steel |
| Mounting Hardware | Wall mount bracket included |
| Color | White – RAL 9016 |
| Height | 223 mm / 8.78 inches |
| Width | 191 mm / 7.52 inches |
| Depth | 236 mm / 9.29 inches |
| Weight | 3.65 kg / 8.05 lbs |
| Package Height | 285 mm / 11.22 inches |
| Package Width | 305 mm / 12.01 inches |
| Package Depth | 250 mm / 9.84 inches |
| Package Weight | 4.36 kg / 9.61 lbs |
