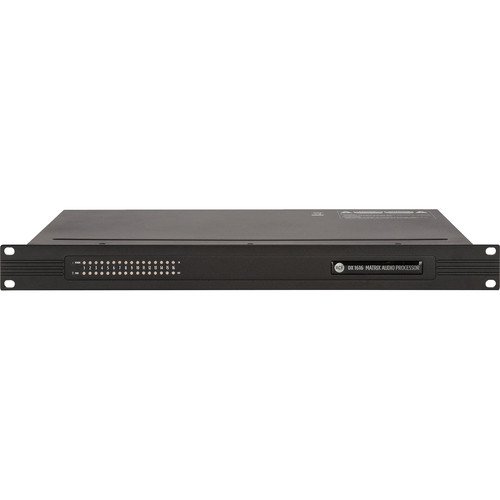

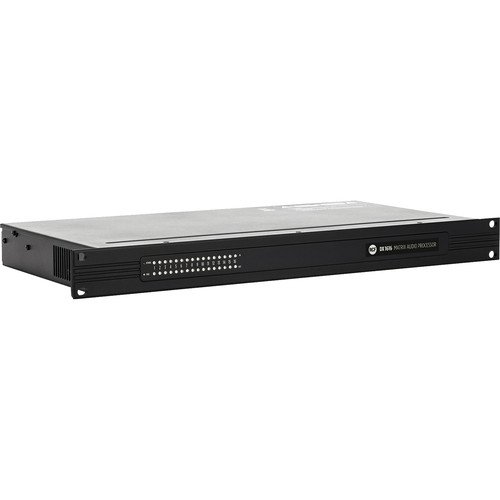

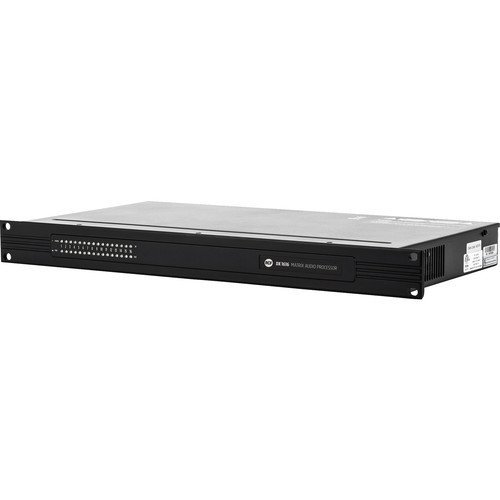

RCF DX 1616 Matrix Audio Processor

The RCF DX 1616 Matrix Audio Processor is a high‑performance digital audio matrix designed for professional AV, touring, fixed installations, and complex sound systems requiring advanced routing and signal management. Featuring a hybrid 40‑bit floating‑point DSP engine with 48 kHz sampling, the DX 1616 provides pristine audio processing with low distortion and wide dynamic range. The processor supports a flexible 16×16 I/O matrix routing structure that allows engineers to assign, route, and process multiple inputs and outputs simultaneously for immersive multi‑zone audio control.

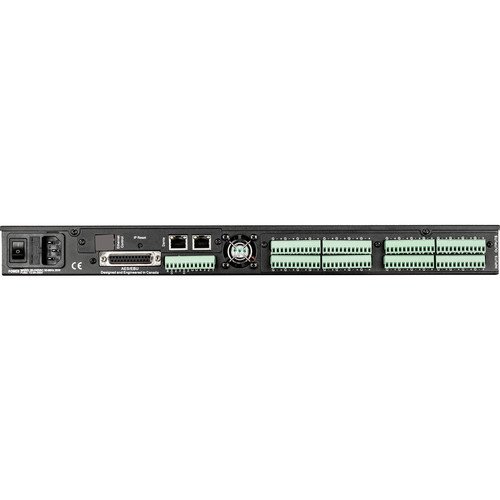

Equipped with Dante network audio transport, AES/EBU digital connectivity, and analog Euroblock I/O, this unit blends legacy and modern audio workflow seamlessly. Remote control and configuration are handled via Ethernet and intuitive PC/Mac software, enabling precise EQ, delay, crossover, and compressor settings for each input or output. With up to 70 user presets, the DX 1616 is ideal for live festivals, corporate events, houses of worship, and professional installations where scalable audio routing and DSP flexibility are essential.

Features

• 16×16 audio matrix routing with hybrid DSP engine
• 48 kHz sampling rate and 40‑bit floating‑point processor
• Dante network audio transport with Ethernet control
• 8 AES/EBU inputs and 8 AES/EBU outputs
• Analog Euroblock inputs with mic/line connectivity and phantom power support
• Configurable EQ, delay, crossover, high‑pass filters, and compressors
• Remote software control for Windows/Mac via Ethernet
• Up to 70 user presets for event and venue setups
• Low latency (≤3 ms) for real‑time processing
• 1U rackmount metal chassis for professional installations

Specifications
