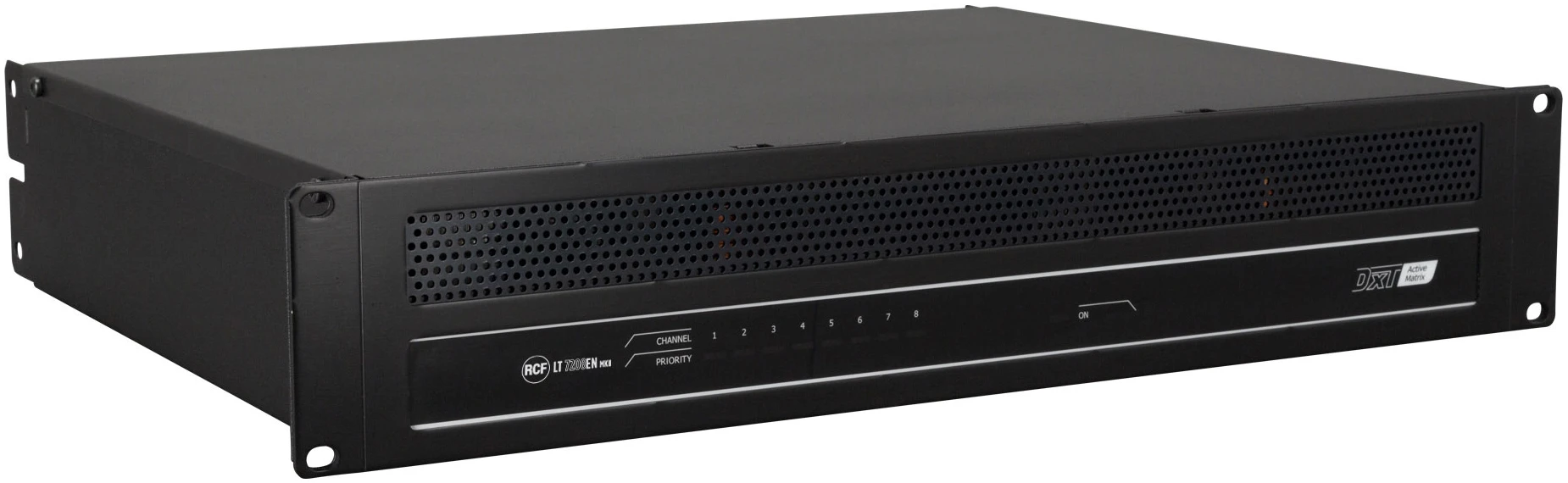

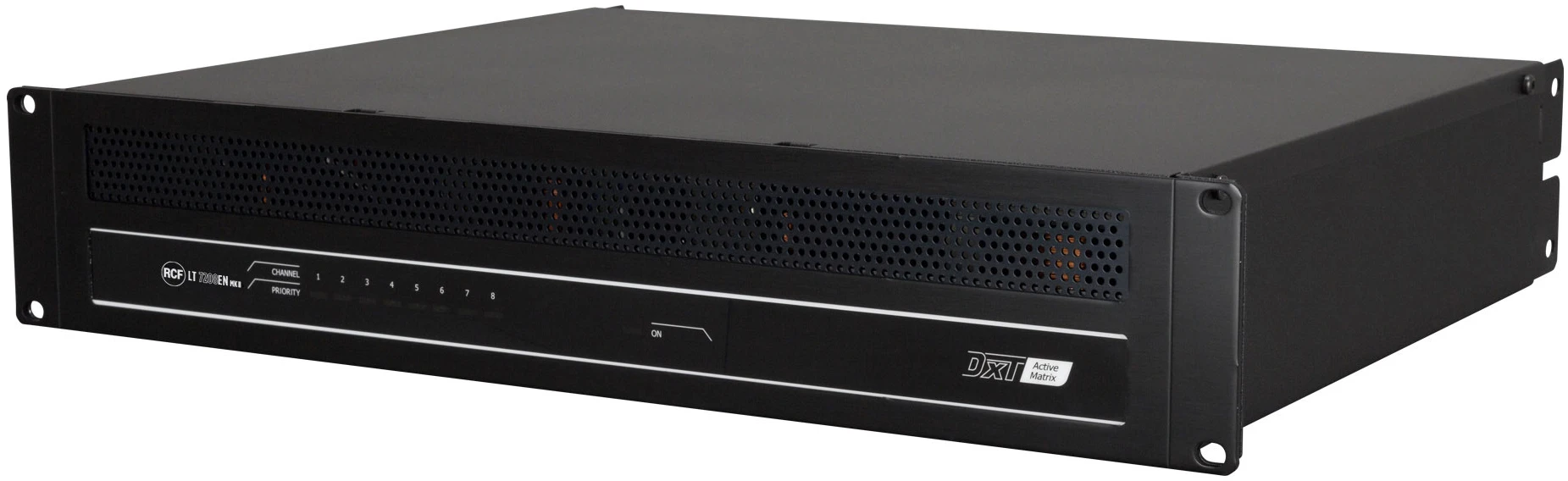

RCF LT 7208EN MKII Line Transformer Interface

The LT 7208EN MKII is an interface unit designed to expand the flexibility of the MU 7100EN master unit by converting its 8 ohm low-impedance speaker outputs into constant voltage lines (100 V, with options for 70 V and 50 V). It features 8 internal transformers, each rated at 80 W, and enables multiple power configurations including 8 x 80 W, 4 x 160 W, and 2 x 320 W. This makes it ideal for large-scale distributed loudspeaker systems. Speaker line monitoring and different voltage setting support ensure system integrity and adaptability. It connects seamlessly to the master unit using FTP CAT 5 or CAT 6 cables and is housed in a standard 2U metal rack-mountable chassis, fully compliant with EN54-16 certification requirements.

Features

• 8 built-in line transformers (80 W each)

• Converts 8 ohm outputs to 100 V, 70 V, or 50 V lines

• Compatible with MU 7100EN master amplifiers

• Supports multiple power configuration setups

• Speaker line monitoring supported

• Serial communication and FTP cable connections

• EN54-16 certified with CE compliance
