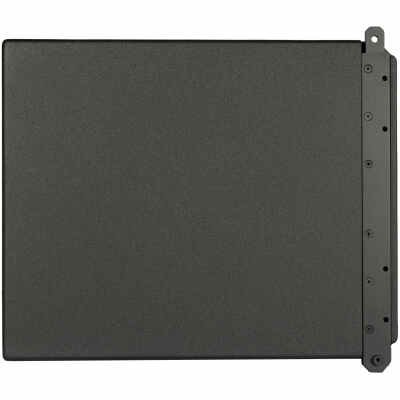

The HL 38-S WP is a robust flyable subwoofer built for outdoor concerts, touring events, and high-demand fixed installations. Equipped with a high-performance 18” neodymium woofer featuring a 4.0” voice coil, it offers powerful and accurate bass reproduction from 30 Hz to 140 Hz. With 6000 W peak power handling and a maximum SPL of 136 dB, this subwoofer ensures impactful low-end output with minimal distortion. The enclosure is constructed from high-grade Baltic birch plywood and finished with a powder-coated steel grille backed by a waterproof acoustic cloth. Designed for professional use, it includes IP67-rated Amphenol connectors for weather resistance and integrated rigging hardware for versatile deployment. Whether flown, stacked, or ground-mounted, the HL 38-S WP is built to perform reliably under any condition, making it an ideal choice for professionals who require durability, ease of setup, and uncompromised sound quality.
Features
-
6000 W peak power handling
-
136 dB maximum SPL
-
30 Hz to 140 Hz frequency response
-
1 x 18” high-power neodymium woofer with 4.0” voice coil
-
Baltic birch plywood enclosure for durability and sonic clarity
-
Powder-coated steel grille with waterproof acoustic cloth
-
IP67-rated Amphenol input and link connectors
-
Integrated flyable rigging hardware
-
Designed for outdoor use and harsh environments
-
Compatible with recommended amplifiers (XPS, QPS, IPS series)
-
CE compliant for safety and reliability
Specifications
Frequency Response | 30 Hz ÷ 140 Hz |
Max SPL @ 1m | 136 dB |
Nominal Impedance | 8 ohm |
Power Handling | 1500 W RMS |
Peak Power Handling | 6000 W PEAK |
Recommended Amplifiers | XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K |
Woofer | 1 x 18” neo, 4.0” v.c. |
Input Connector | Amphenol eco/mat IP67 |
Output Connector | Amphenol eco/mat IP67 |
Cabinet Material | Baltic birch plywood |
Hardware | Integrated array mechanics |
Grille | Powder-coated steel with waterproof acoustic cloth |
Color | Black |
Height | 502 mm / 19.76 inches |
Width | 728 mm / 28.66 inches |
Depth | 563 mm / 22.17 inches |
Weight | 48.7 kg / 107.36 lbs |
Shipping Dimensions
Category | Measurement |
---|---|
Package Height | 550 mm / 21.65 inches |
Package Width | 670 mm / 26.38 inches |
Package Depth | 750 mm / 29.53 inches |
Package Weight | 51 kg / 112.44 lbs |
