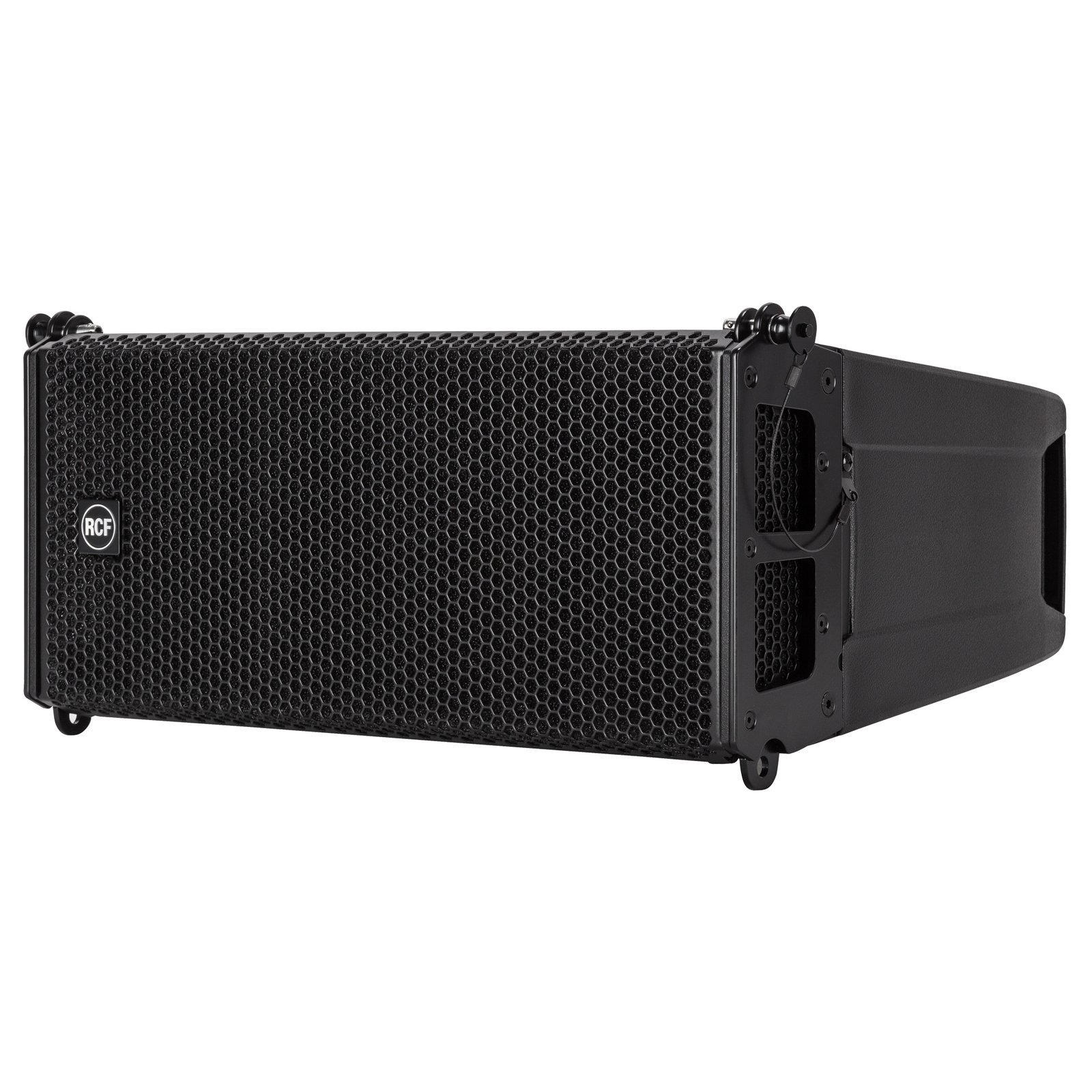

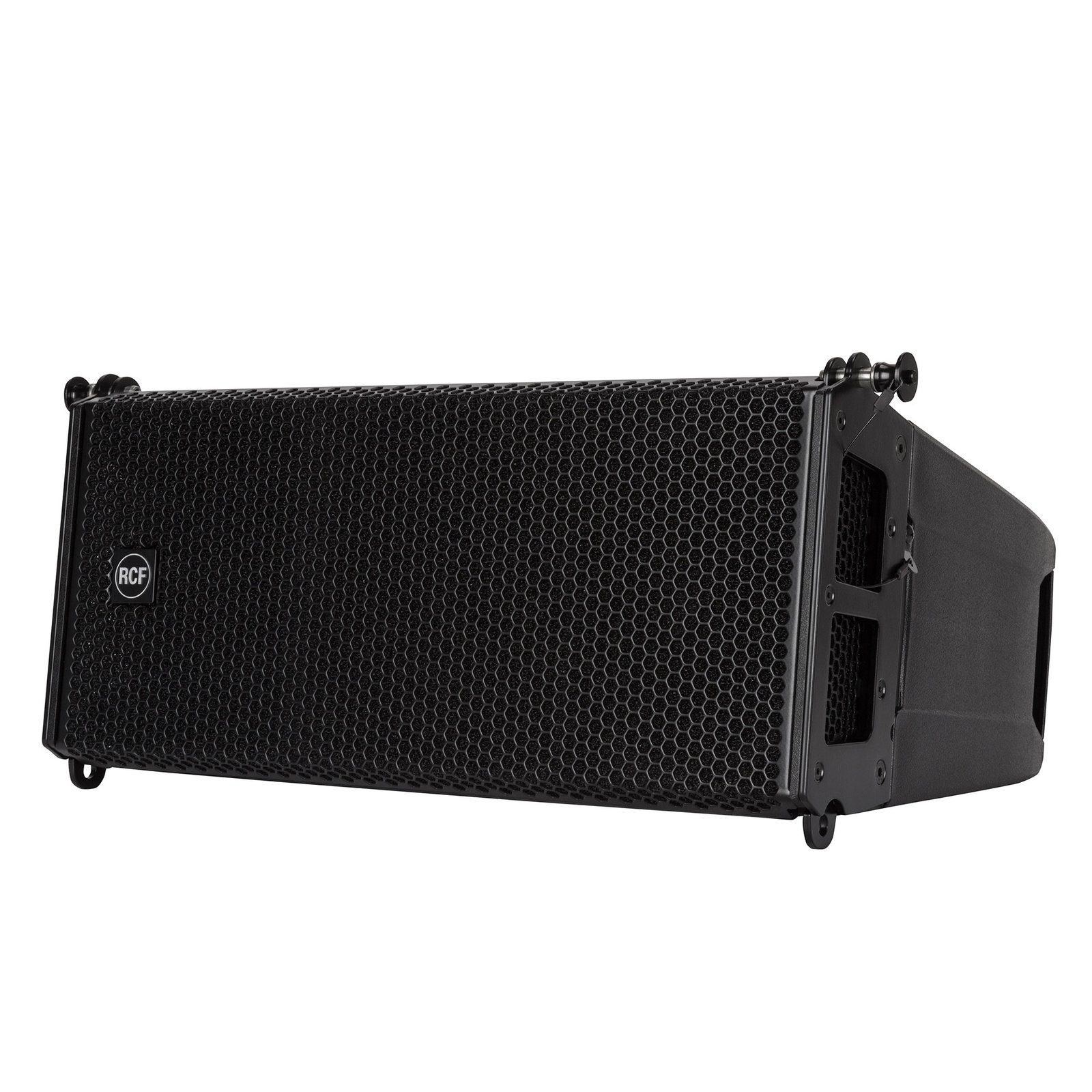

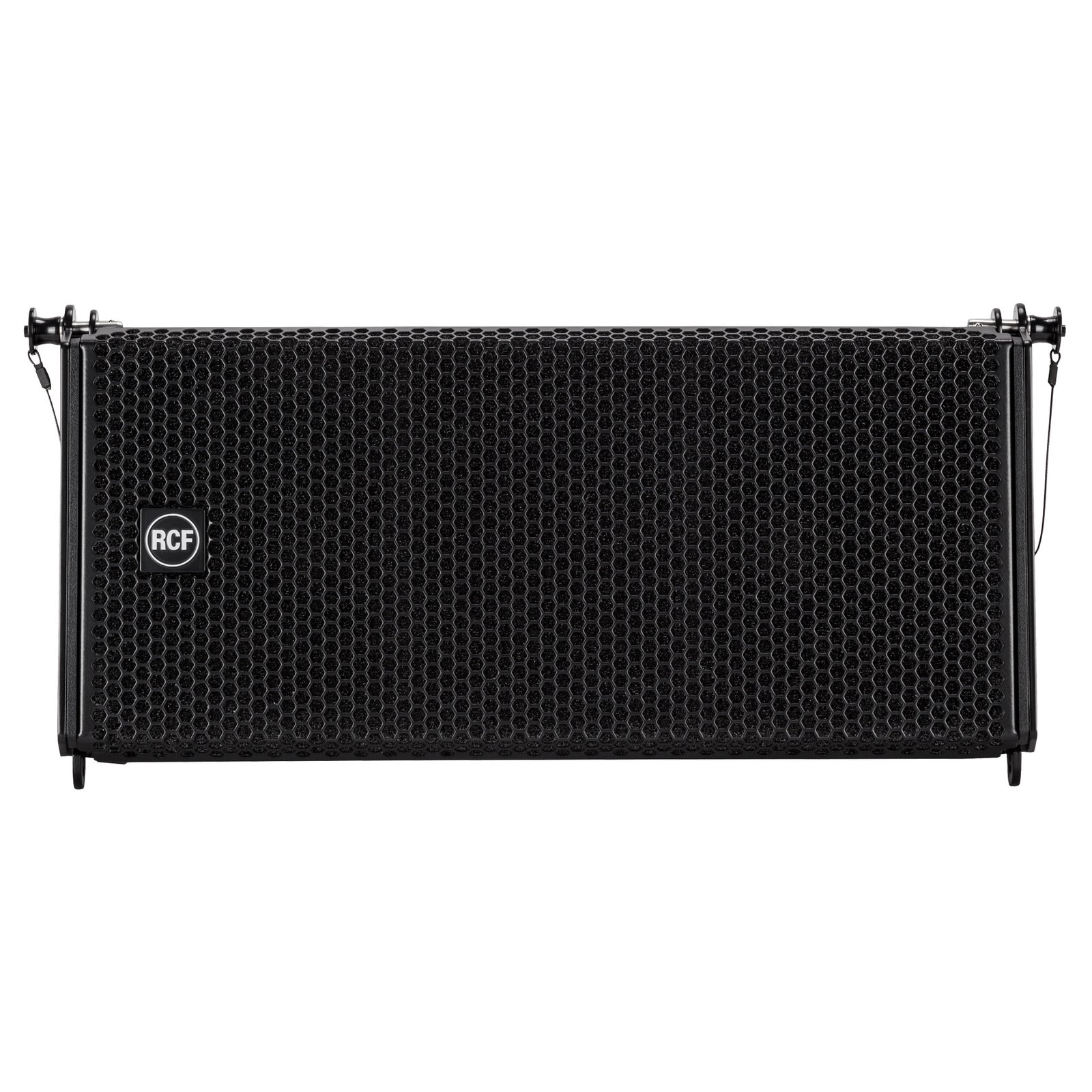

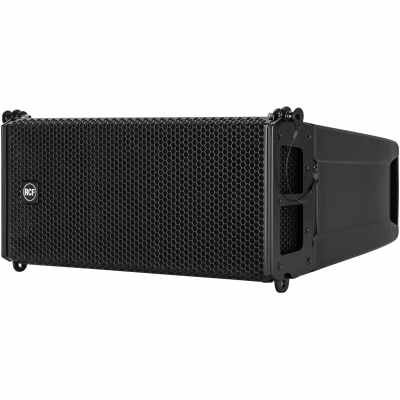

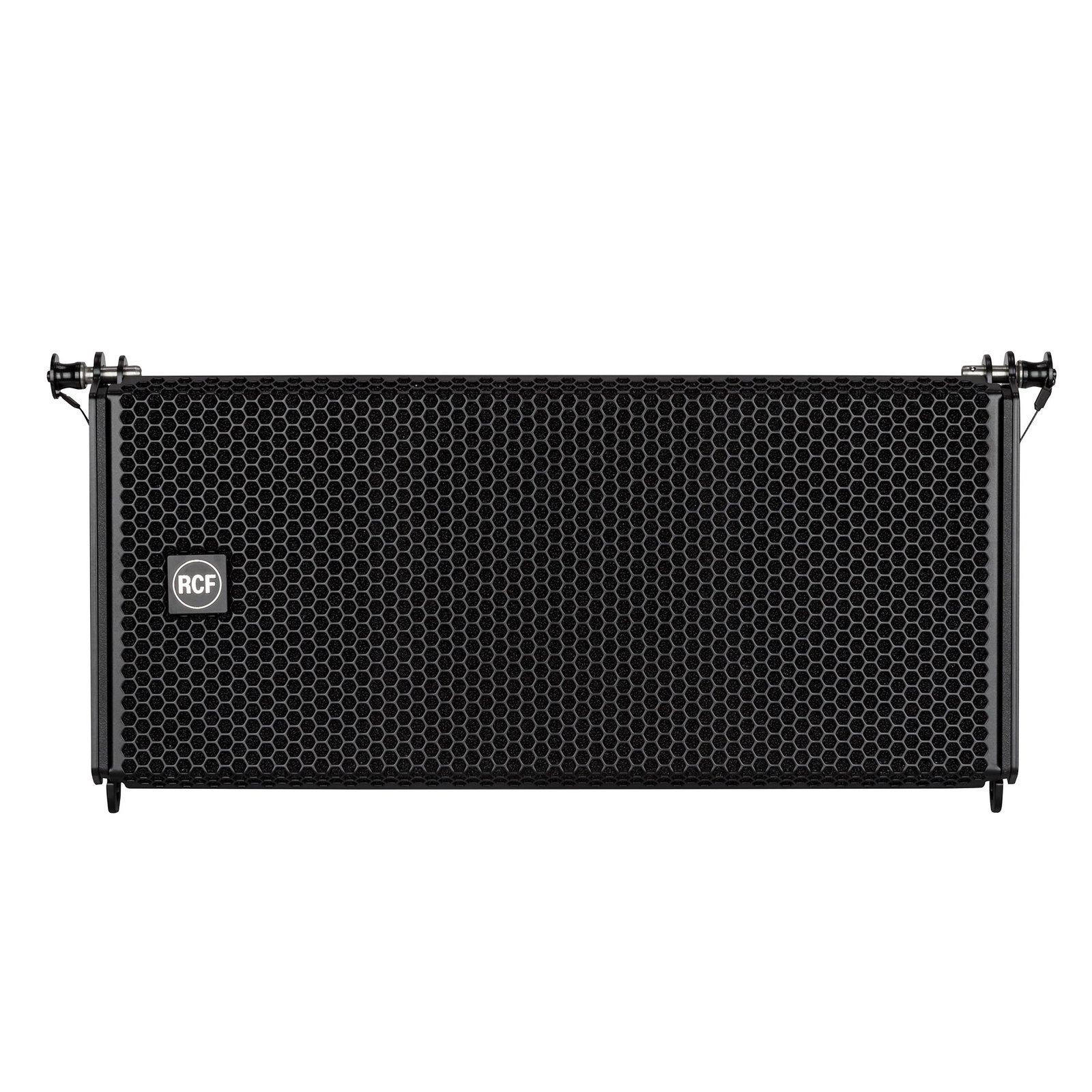

RCF HDL6-A 1400W 2-Way Powered Line Array Module

The RCF HDL 6-A is purpose-built for professional audio applications where clarity, portability, and quick deployment are essential. Featuring a 1400W two-channel Class-D amplifier, it delivers impressive SPL levels of up to 131 dB. The onboard 48 kHz, 32-bit DSP processes crossover, limiting, phase correction, and protection, ensuring optimal audio performance.

Equipped with two 6.0-inch high-power neodymium woofers and a 1.0-inch compression driver with a 1.75-inch voice coil, the HDL 6-A delivers tight bass, defined mids, and brilliant highs across a 100° x 10° dispersion pattern. Its symmetrical design ensures even coverage, and the lightweight polypropylene composite cabinet includes rear handles for easy portability. Available in black and white, it adapts aesthetically to various venue environments. The HDL 12-AS subwoofer is the ideal flyable low-frequency extension for this system.

Features

• 1400 W two-way Class D amplification

• 131 dB maximum SPL

• 1.7″ voice coil neodymium compression driver

• 2 x high-power neodymium 6.0″ woofers

• 48 kHz, 32-bit floating-point DSP processing

• Symmetrical cabinet design

• Lightweight PP composite enclosure

• FIRPHASE processing

• Precise 100° x 10° waveguide coverage

• Available in black and white finishes

• CE compliant
