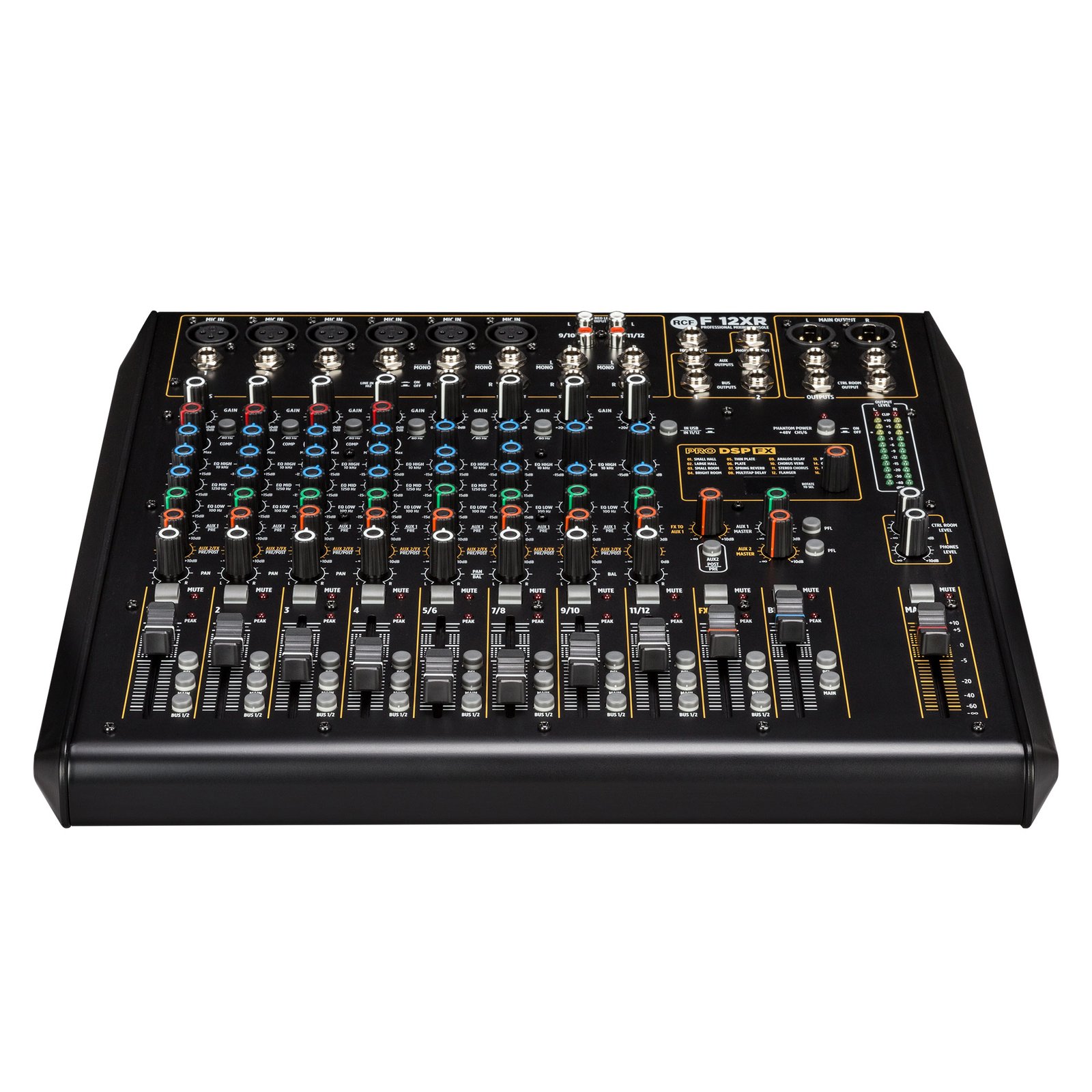

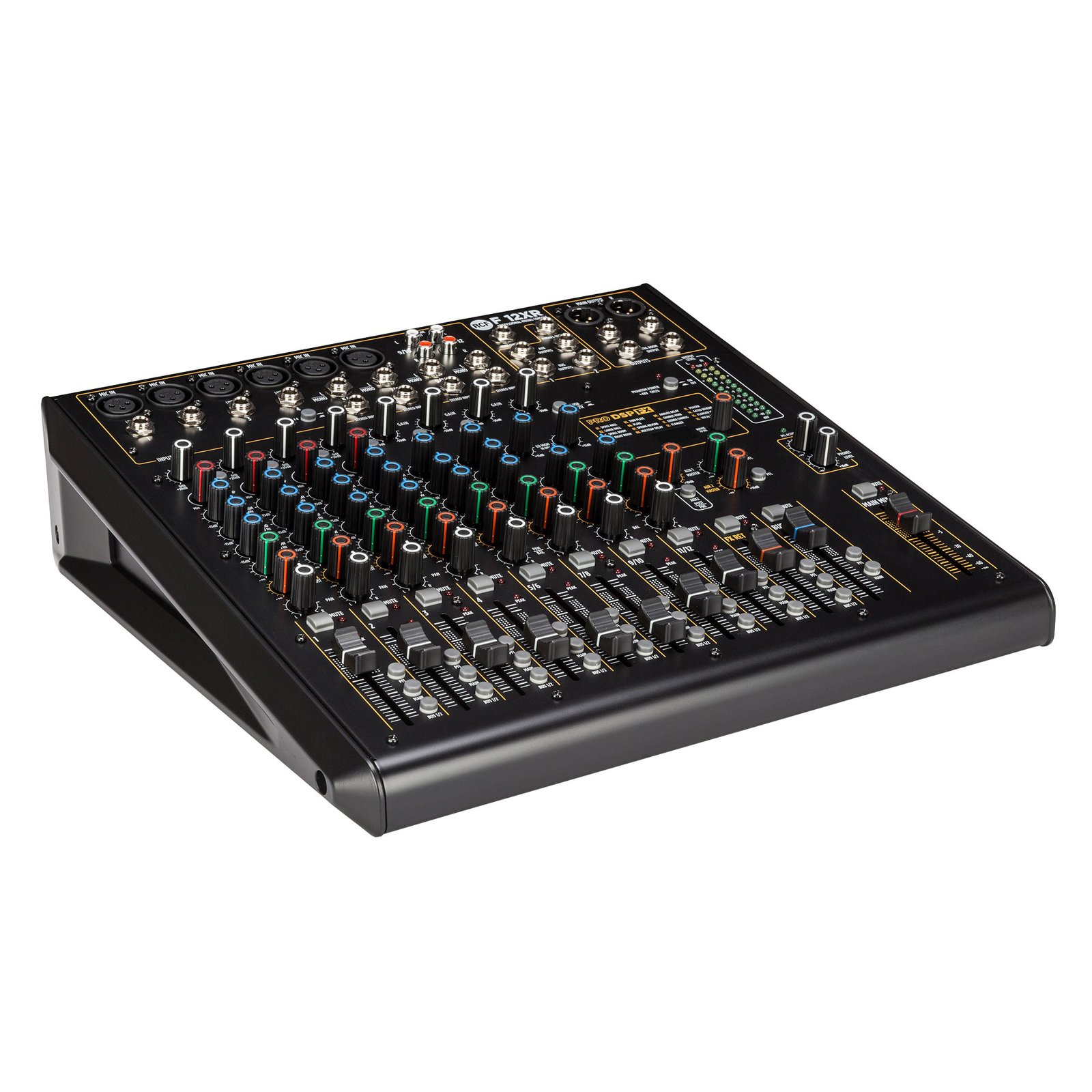

RCF F 12XR 12-Channel Analog Mixing Console with Built-In Multi-FX, USB Audio Interface & Recording

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

FEATURES

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB port
• Balanced main output audio path from input to output
• 4 single control compressors
• Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
• Robust, compact and attractive design.
• Designed and Engineered in Italy
• Internal Universal Power Supply

SPECIFICATIONS

Key Features

• Channels: 12 total (6 mic, 4 mono line, 4 stereo line; 1 Hi?Z mono)
• PREAMPS & DYNAMICS: 6 high-quality mic preamps, 48?V phantom power, 4 “single control” compressors on channels 1–4

EQ & Signal Processing

• Mono Channels (Mic/Line): 3?band EQ: ±15?dB @ 100?Hz (low shelving), 1.25?kHz (mid bell), 10?kHz (high shelving)
• Stereo Channels: 2?band EQ ±15?dB shelving
• Low-cut Filter: 80?Hz on mic inputs

Connectivity & Outputs

• Inputs: XLR, ¼″ TRS, RCA; mic gain +4?to?–50?dB, line gain 20?to?–30?dB
• USB Interface: stereo 2-in/2-out at 44.1/48?kHz for recording and playback
• Auxiliary Sends: 1 × pre/post AUX, 1 × FX send with FX return
• Main Outputs: Balanced stereo XLR + TRS, +28?dBu level; plus control room, group, and headphone outputs

Effects, Meters & Control

• PRO DSP Effects: 16 presets (Reverbs: hall, room, plate, spring; Delays: mono, stereo, multitap; Chorus, Flangers, Echoes)
• Faders: 60?mm for precise control
• Footswitchable functions: Assignable via TRS jack

Performance & Noise

• Frequency Response: 20?Hz–20?kHz
• THD+N: <?0.02% (20?dB gain, 0?dBu out)
• Dynamic Range: >?85?dB
• Input Noise: –124?dBu (A-weighted)

Power & Build

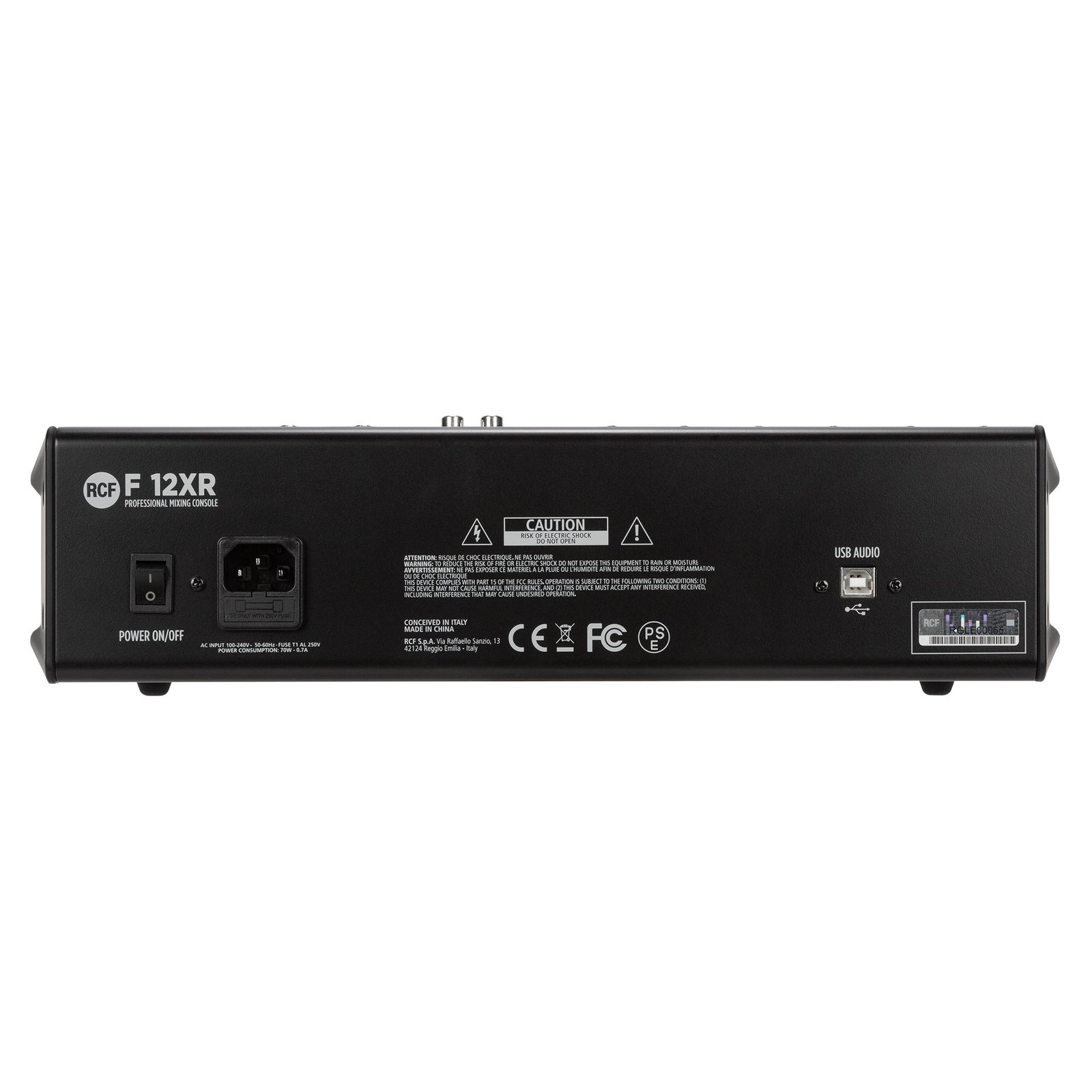

• Power Supply: Internal universal (100–240?VAC)
• Power Consumption: Max ~24?W
• Chassis: Rugged metal, compact design, designed & engineered in Italy

Physical & Compliance

• Size: 373?×?97?×?355?mm (W × H × D)
• Weight: 4.5?kg (9.9?lb)
• Certification: CE compliant
