Description

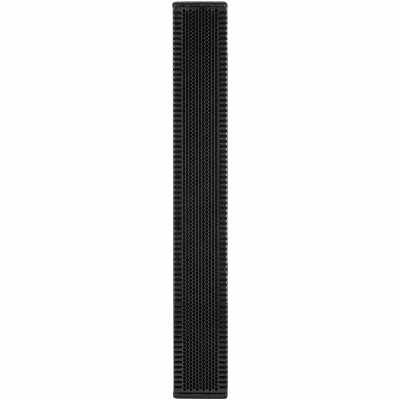

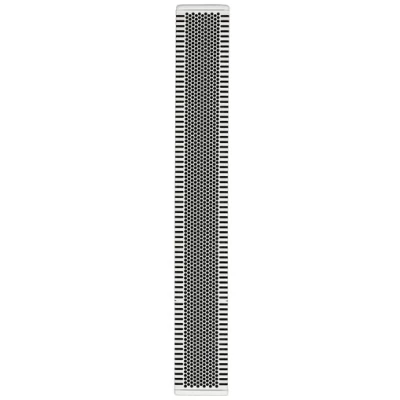

The EVOX 12 from RCF is a high-performance line-source speaker system designed for professional live sound applications. Equipped with a 1400-watt Class-D amplifier, this system features a 15″ woofer and eight 4″ neodymium full-range drivers, ensuring deep bass and wide dispersion of high frequencies. Its innovative DSP processing, rugged build, and easy portability make it ideal for quick setups and reliable performance. The speaker’s enclosure is compact and designed with integrated wheels and a retractable handle for effortless transportation. Whether you’re reinforcing a band, DJing a large event, or setting up a mobile PA, the EVOX 12 provides exceptional clarity, power, and coverage.



Features



  • 1400 Watt peak power (700 Watt RMS)

  • 130 dB max SPL for high-output sound

  • 40 Hz – 20 kHz frequency response

  • 15″ high-excursion woofer for deep bass

  • 8 x 4″ neodymium full-range drivers for wide dispersion

  • 90° x 30° controlled coverage

  • Advanced DSP processing for optimized audio

  • Lightweight Class-D amplifiers with convection cooling

  • Durable birch plywood cabinet in black or white

  • Integrated wheels and extendable handle for portability

  • Fast and easy setup with pole mount system

  • CE compliant safety standards



Specifications



Frequency Response40 Hz – 20000 Hz
Max SPL @ 1m130 dB
Horizontal Coverage90°
Vertical Coverage30°
Full-range Drivers8 x 4.0″, 1.0″ v.c
Woofer15″, 3.0″ v.c
Input SignalBalanced / Unbalanced
Input ConnectorsXLR, Jack
Output ConnectorsXLR
Input Sensitivity2 dBu / +4 dBu
Crossover Frequency180 Hz
ProtectionsThermal, RMS
LimiterSoft Limiter
ControlsVolume, EQ
Total Power1400 W Peak, 700 W RMS
High Frequency Power400 W Peak, 200 W RMS
Low Frequency Power1000 W Peak, 500 W RMS
CoolingConvection
Power ConnectionVDE
Cabinet MaterialBaltic birch plywood
ColorBlack, White (RAL 9003)
Height2200 mm / 86.61 inches
Width410 mm / 16.14 inches
Depth560 mm / 22.05 inches
Weight36.4 kg / 80.25 lbs
Package Height636 mm / 25.04 inches
Package Width459 mm / 18.07 inches
Package Depth613 mm / 24.13 inches
Package Weight43.89 kg / 96.76 lbs
Safety CertificationCE compliant
