RCF DMU 6100 Central Unit Conference System

The DMU 6100 serves as the central unit for the DM 6100 conference system, supporting up to 60 microphone sets across two lines. It offers two universal inputs that can be configured for various roles such as mixing, priority, or both. Additional dedicated IN and OUT ports support teleconferencing without echo, and multiple auxiliary outputs allow for separate recordings of microphone lines. The unit also includes VOX and command-based operations, a REC-PLAY section, and a programmable command switch. Front-panel controls with an LCD display, buttons, and monitoring speaker/jack enable quick configuration, with support also available via PC software. This unit is ideal for professional installations requiring flexibility, control, and reliability.

Features

• Two configurable universal inputs for additional audio sources

• Inputs support mixing, priority, or dual-mode operations

• Echo-free IN/OUT ports for teleconference integration

• Supports VOX and command operation modes

• Programmable command switch for FORCED-ON/OFF operation

• REC-PLAY I/O section for connecting external recorders/players

• Four auxiliary outputs for independent recording

• Supports up to 60 microphone sets across two lines

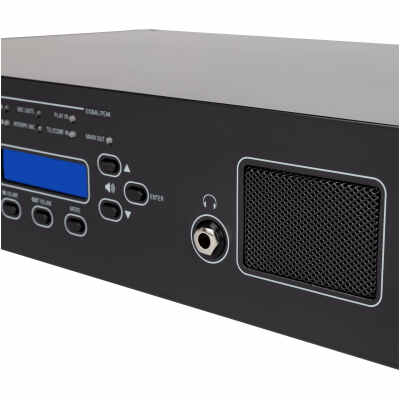

• Front panel LCD and controls for easy setup and status monitoring

• Built-in speaker and ¼” jack for audio monitoring

Specifications
