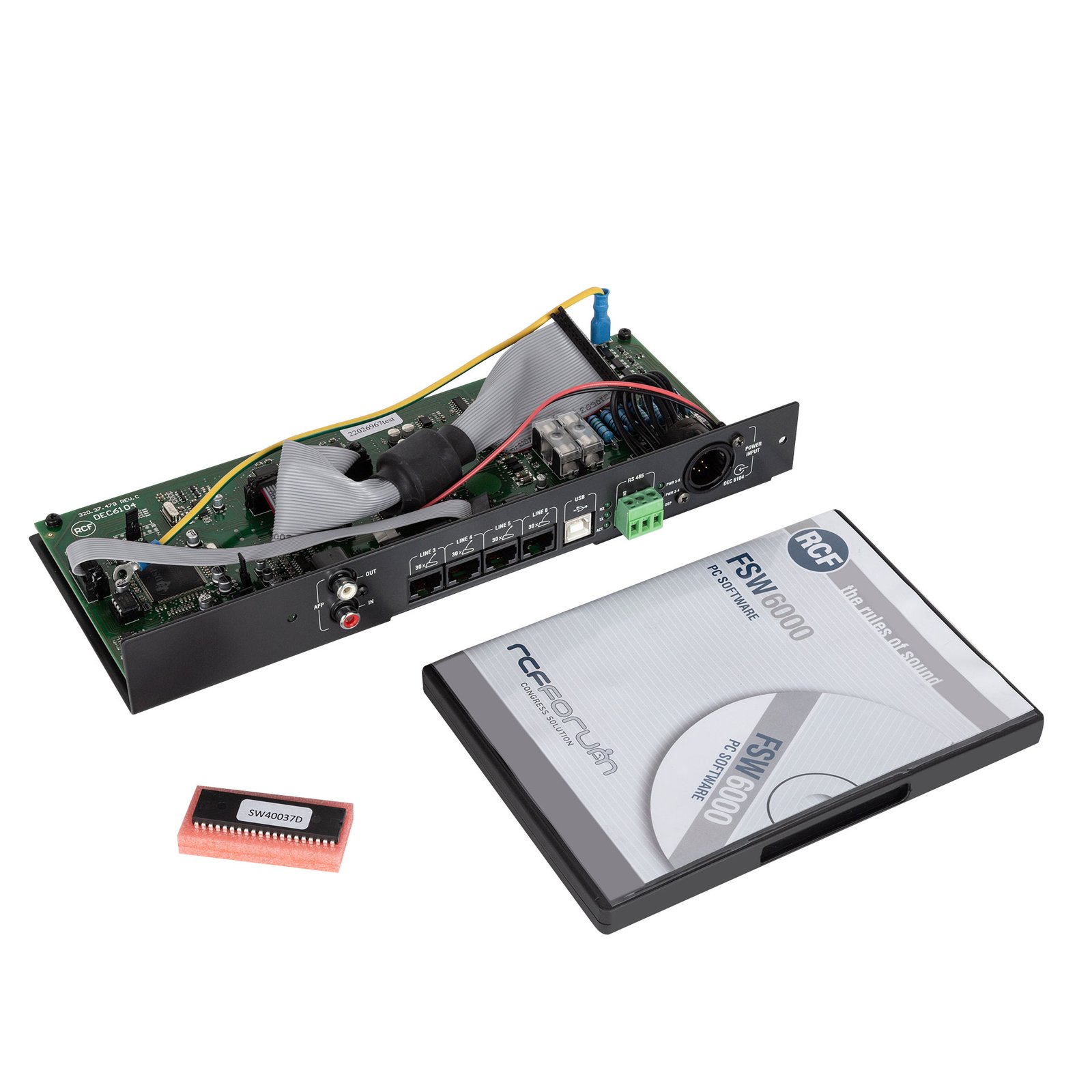

The DEC 6104 expander board is designed for installation into the DMU 6100 main unit of the RCF FORUM 6000 conference system. It adds the ability to expand the system to support up to 180 DMS 6410 microphone consoles through six lines, four of which are routed via the DEC 6104. Additional units require the DPS 6202 power supply. For system control, it features both a USB port and an RS 485 port for long-distance PC connectivity up to 1.2 km. The board integrates an anti-feedback processor to reduce acoustic feedback caused by high volume levels or microphone proximity. It also includes the FSW 6000 software for configuration and system management.
Features
-
Supports up to 180 DMS 6410 microphone consoles (via 6 lines)
-
Includes 4 additional line outputs on the DEC 6104 board
-
Requires DPS 6202 power unit for powering additional 120 consoles
-
USB port for PC connection and system control
-
RS 485 port for long-distance PC control (up to 1.2 km)
-
Integrated anti-feedback processor
-
PLAY input for audio playback
-
Includes FORUM 6000 control software (FSW 6000)
-
Installed directly into DMU 6100 central unit
Specifications
| Max Number of Consoles | 120 |
| Number of Console Buses | 4 |
| Communication Bus | Serial |
| Total Number of Inputs | 5 |
| Balanced Inputs | 4 |
| Unbalanced Inputs | 1 |
| Mono Inputs | 5 |
| Line Inputs | 1 |
| Line Connectors | RCA |
| Paging Inputs | 4 |
| Paging Connectors | RJ45 |
| Signal Output Number | 1 |
| Signal Output Connectors | RCA |
| DSP Processing | Yes |
| Configuration | PC Software |
| DC Power | Yes |
| DC Power Value | 48 V |
| Safety Compliance | CE compliant |
| Weight | 0.82 kg / 1.81 lbs |
| Package Height | 100 mm / 3.94 inches |
| Package Width | 300 mm / 11.81 inches |
| Package Depth | 200 mm / 7.87 inches |
| Package Weight | 1 kg / 2.2 lbs |
