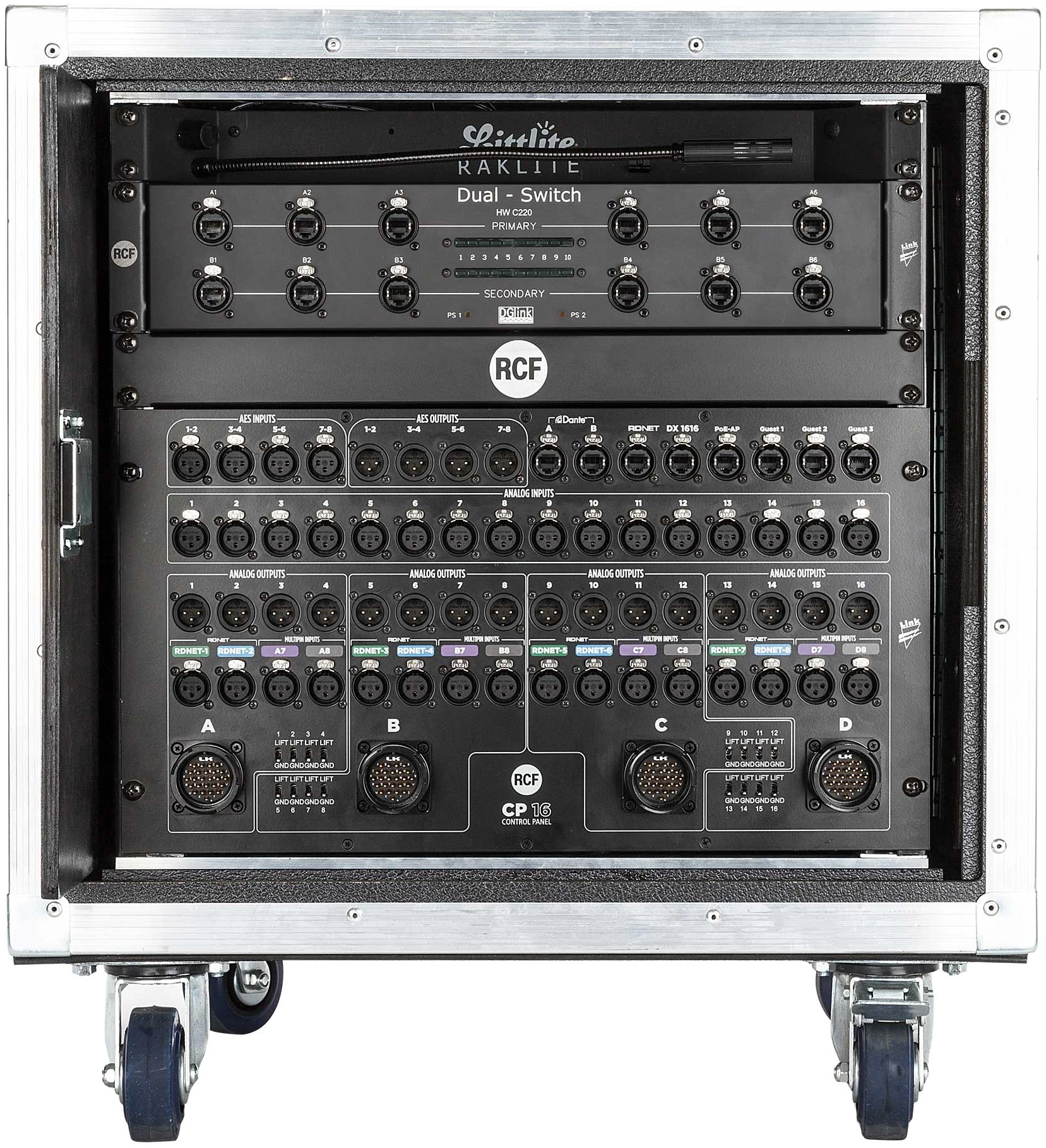

The CR 16-ND is a professional 10 RU flight case solution engineered for managing RCF HDL 50-A line array systems in touring and fixed installations. This fully integrated system includes the DX 1616 matrix audio processor for complete audio signal routing, a Control 8 RDNet master unit for system control of up to 256 devices, and the CP16 control panel for output connectivity. The CR 16-ND delivers 16 analog audio inputs and outputs, 8 AES/EBU digital I/Os, Dante input, and 4 LK 25 multipin connectors for streamlined audio and control distribution. Each LK 25 output provides four audio channels, two RDNet lines, and two spare sends, with redundant XLR mirroring for reliability. Built on shock-mounted rails for durability in transit, this rack is the ideal central control unit for large-scale RCF system deployments.
Features
10 RU flight case with shock mount rails
DX 1616 matrix audio processor for flexible routing
CONTROL 8 RDNet master unit
CP16 control panel for streamlined signal output
16 analog audio inputs and outputs
8 AES/EBU digital inputs and outputs
Dante input for networked audio integration
4 LK 25 outputs with audio, RDNet, and spare lines
Redundant XLR outputs for backup signal paths
Built for touring and high-performance applications
Specifications
| Rack Unit | 10 |
| Analog Audio Inputs | 16 |
| Analog Audio Outputs | 16 |
| AES/EBU Inputs/Outputs | 8 |
| Dante Input | Yes |
| Master Unit | Control 8 (manages up to 256 devices) |
| RDNet | Onboard |
| Control Panel | CP16 with 4 x LK 25 outputs |
| LK 25 Output Configuration | 4 audio channels, 2 RDNet, 2 spare sends |
| Signal Redundancy | XLR mirrored outputs |
| Standard Compliance | CE compliant |
| Weight | 57 kg / 125.66 lbs |
| Package Height | 570 mm / 22.44 inches |
| Package Width | 610 mm / 24.02 inches |
| Package Depth | 630 mm / 24.8 inches |
| Package Weight | 59 kg / 130.07 lbs |
