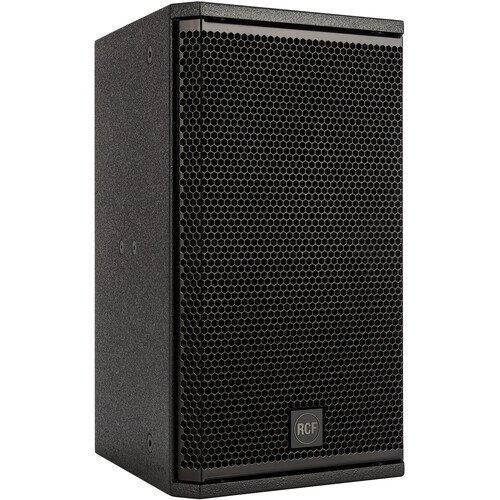

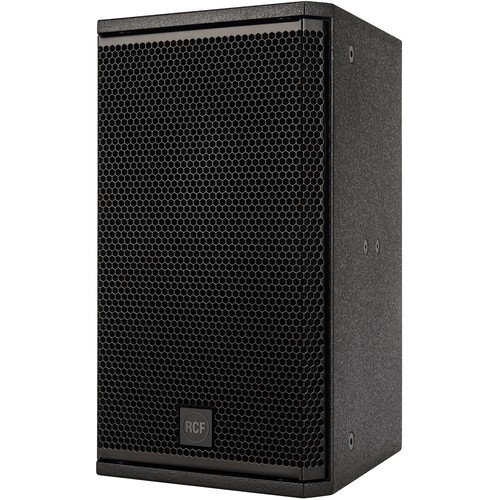

COMPACT M 10 is a multipurpose two-way full-range speaker system ideal for a wide range of applications. With high sensitivity and low distortion, it ensures excellent intelligibility and HI-FI sound quality. The wave-guided compression driver delivers smooth, wide frequency response, while the compact design complements any environment. It includes installation-friendly features like multiple rigging points and EUROBLOCK connectors. Available in black and white, the M 10 fits both aesthetic and functional needs for venues such as retail shops, restaurants, corporate spaces, and houses of worship.
Features
300 W RMS power handling
128 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle, rotatable horn

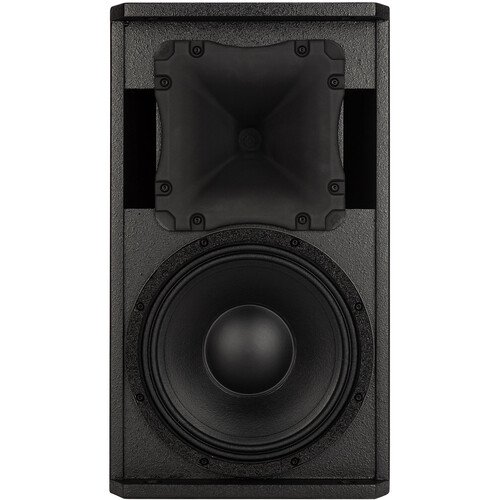

1 x 10″ high power woofer
1 x 1.4″ voice coil compression driver
High quality plywood cabinet
Steel front grille with clothing

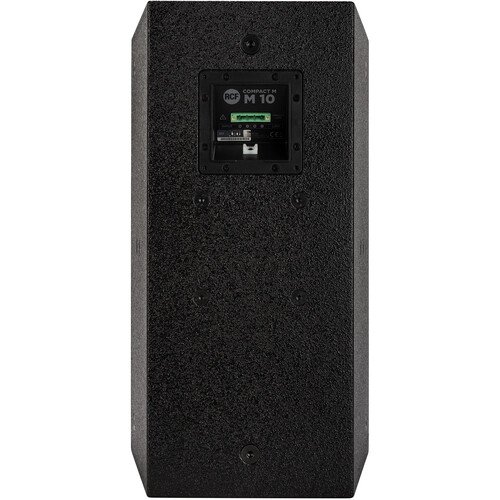

Installation points on rear, top, and bottom panels

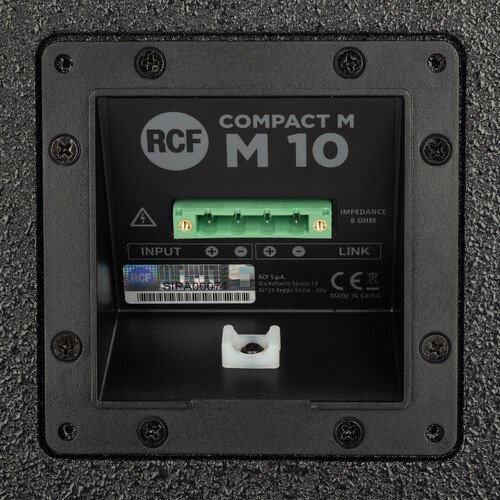

4 pole EUROBLOCK connector (input and parallel output)
Available in black (RAL 9005) and white (RAL 9003)
Specifications
| Frequency Response | 60 Hz ÷ 20000 Hz |
| Max SPL @ 1m | 128 dB |
| Horizontal Coverage | 90° |
| Vertical Coverage | 70° |
| Directivity Index (Q) | 9 |
| System Sensitivity | 98 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 300 W |
| Peak Power Handling | 1200 W PEAK |
| Protections | Dynamic active mosfet |
| Crossover Frequencies | 1800 Hz |
| Recommended Amplifiers | XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504 |
| Compression Driver | 1 x 1.0”, 1.4” v.c |
| Woofer | 1 x 10”, 2.5” v.c |
| Input Connectors | Euroblock |
| Output Connectors | Euroblock |
| Safety Compliance | CE compliant |
| Cabinet Material | Plywood |
| Hardware | 8 x M8, 8 x M10 |
| Grille | Steel with clothing |
| Color Options | Black – RAL 9005, White – RAL 9003 |
