The RCF COMPACT M 06 White is a multipurpose two-way full-range speaker system designed for exceptional sound clarity in compact environments. With 100 W RMS power handling and a 60–20,000 Hz frequency range, it ensures crisp, distortion-free audio. Its constant directivity coverage angle of 120° x 80° and professional-grade components, including a 6″ woofer and neodymium dome tweeter, make it an ideal choice for a wide variety of applications.
This model stands out with its refined white RAL 9003 finish and robust plywood construction, blending seamlessly into interiors where visual aesthetics matter—such as boutique retail stores, modern cafes, art spaces, and houses of worship. The M 06 White offers excellent near-field intelligibility and an impressively smooth, wide frequency response, supported by an efficient wave-guided high-frequency driver.

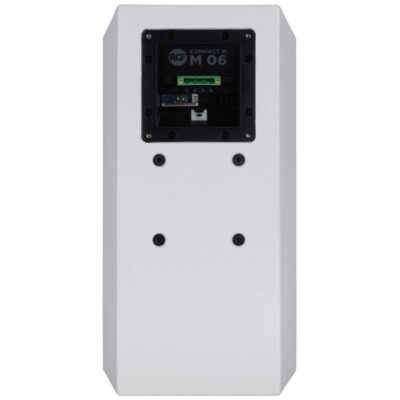

Multiple mounting points and Euroblock connectors make installation simple and versatile. For added flexibility, the rear connection panel can be replaced with a SpeakON connector. Whether wall-mounted or ceiling-hung, the M 06 White adapts effortlessly to demanding environments where both audio quality and visual consistency are priorities.
Features
-
100 W RMS power handling
-
116 dB maximum SPL
-
60 Hz to 20,000 Hz frequency response
-
120° x 80° wide dispersion coverage
-
1 x 6″ high-power woofer
-
1 x 1″ voice coil neodymium dome tweeter
-
Stylish white plywood cabinet
-
Steel front grille with acoustic fabric
-
Rear, top, and bottom mounting points
-
4-pole Euroblock input and parallel link output
-
Optional SpeakON connector compatibility
-
Finished in white RAL 9003 for clean, modern interiors
Specifications
Frequency Response (-10dB) | 60 Hz – 20,000 Hz |
Max SPL @ 1m | 116 dB |
Horizontal Coverage | 120° |
Vertical Coverage | 80° |
Directivity Index Q | 7 |
System Sensitivity | 90 dB |
Nominal Impedance | 8 ohm |
Power Handling (RMS) | 100 W |
Peak Power | 400 W |
Crossover Frequency | 2200 Hz |
Protections | Dynamic active MOSFET |
Recommended Amplifiers | DMA 162, DMA 162P, DMA 504, DMA 82 |
Dome Tweeter | 1 x 1.0″, neodymium dome, 1.3″ v.c |
Woofer | 1 x 6.0″, 1.5″ v.c |
Input Connectors | Euroblock |
Output Connectors | Euroblock |
Safety Compliance | CE certified |
Cabinet Material | Plywood |
Hardware | 4 x M6, 2 x M8 |
Grille | Steel with cloth fabric |
Color Option | White – RAL 9003 |
Dimensions (H x W x D) | 365 x 211 x 232 mm / 14.37 x 8.31 x 9.13 in |
Weight | 5.5 kg / 12.13 lbs |
