Description

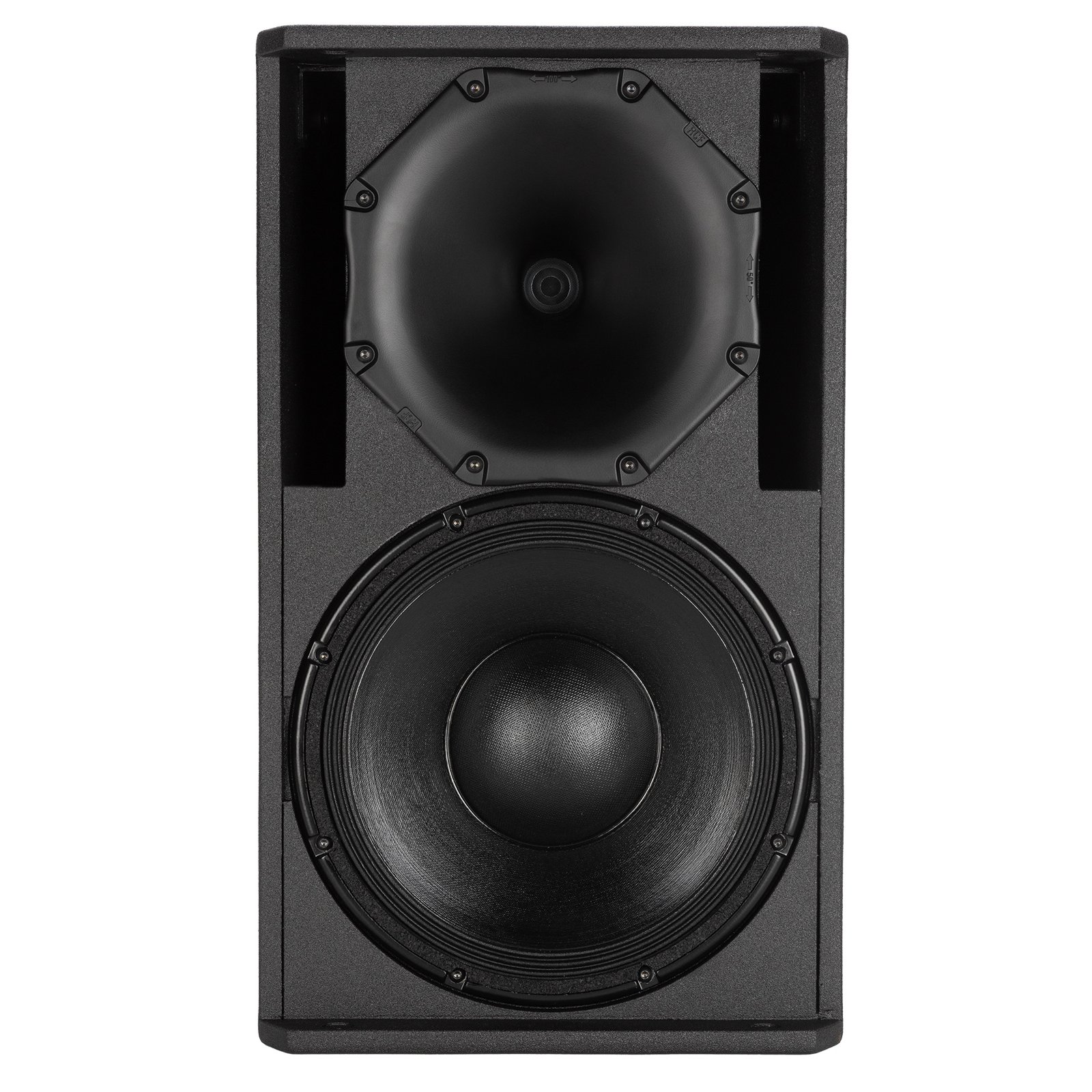

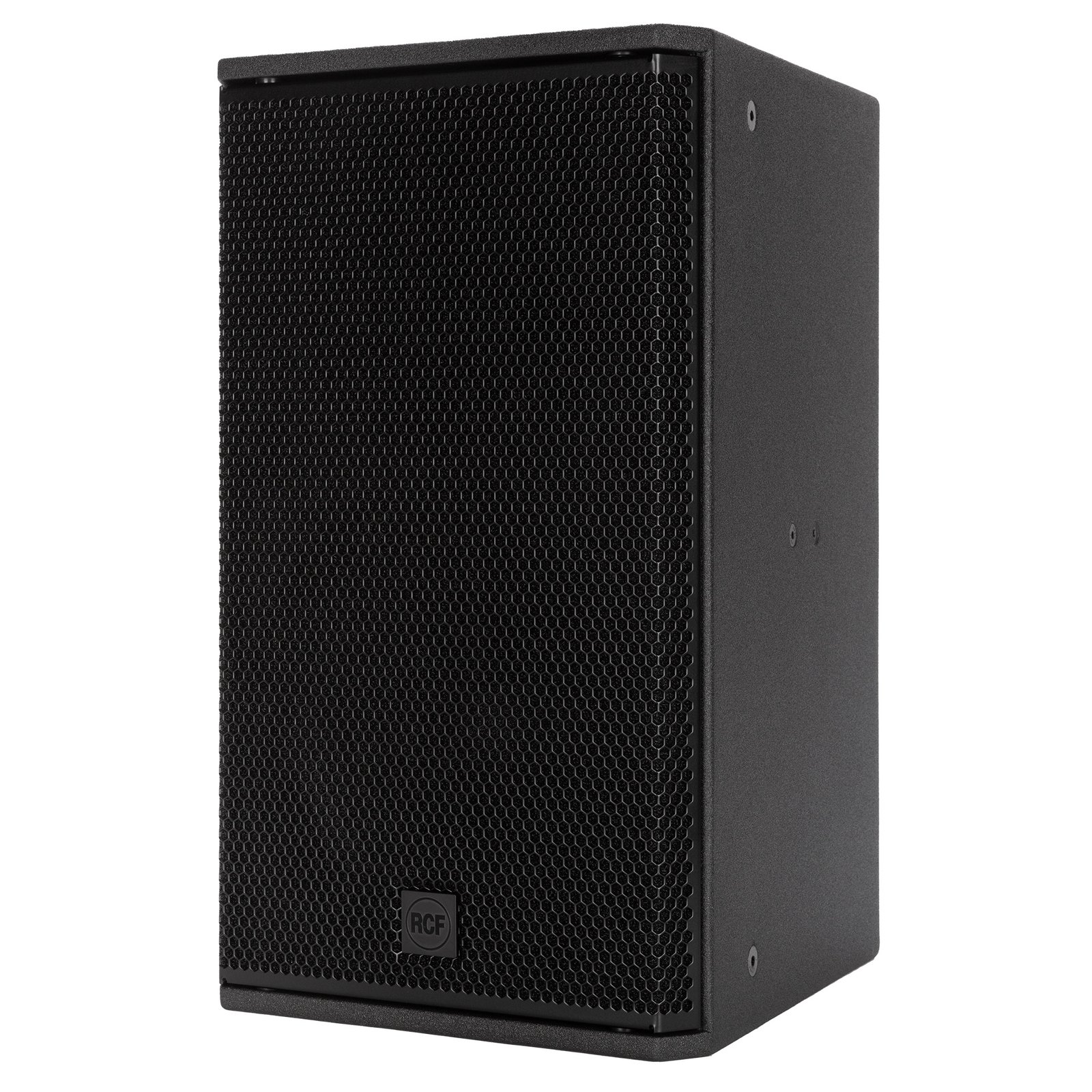

COMPACT C 32 WP is a high-performance two-way point source speaker designed for a broad range of near and mid-distance applications, both indoor and outdoor. It features a 12″ high-power neodymium woofer, a 3″ neodymium compression driver, and a rotatable 100° x 50° constant directivity waveguide. Its durable birch plywood cabinet is coated with polyurea and includes a water-repellent steel grille for enhanced weather resistance. With an SPL of 137 dB and low distortion sound output, this speaker ensures consistent intelligibility and sound clarity. It includes installation points on all sides and is compatible with wall or ceiling mounting accessories. Certified under EN 54-24:2008, it is ideal for critical installations requiring high-quality sound reinforcement and voice alarm capabilities.



Features



  • 600 W power handling (RMS)

  • 137 dB max SPL

  • 54 ÷ 20000 Hz frequency range

  • 100° x 50° constant directivity coverage angle

  • 1 x 12″ high power neodymium woofer

  • 1 x 3.0″ v.c. neodymium compression driver

  • High quality birch plywood cabinet

  • Steel grille with water-repellent protection

  • Installation points on top, bottom, rear and side panels

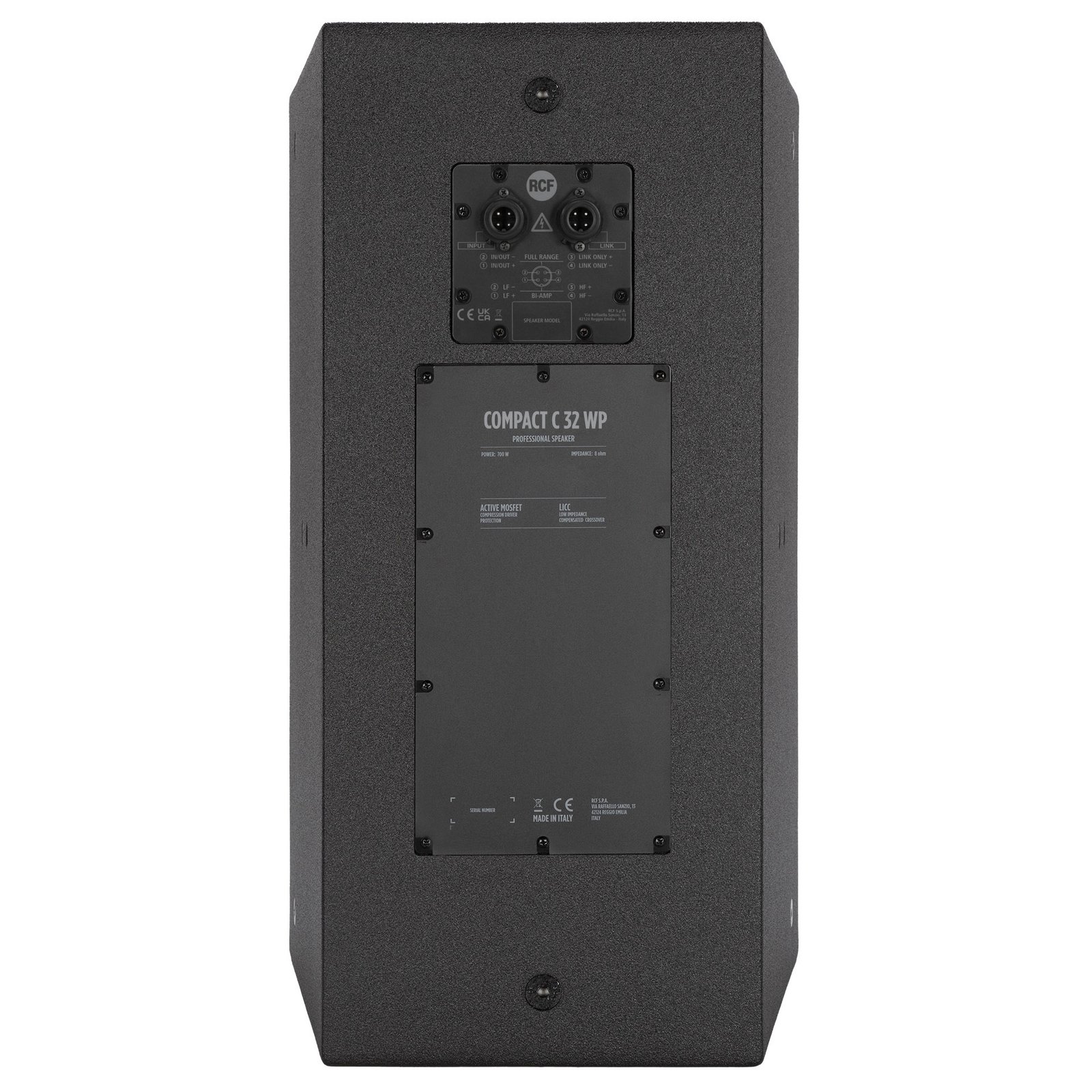

  • 2 x eco|mate IP 67 connectors



Specifications



Frequency Response (-10dB)54 Hz ÷ 20000 Hz
Max SPL @ 1m137 dB
Horizontal Coverage100°
Vertical Coverage50°
Directivity Index Q10
System Sensitivity97 dB
AmplificationFull Range
Nominal Impedance8 ohm
Power Handling600 W RMS
Peak Power Handling2400 W PEAK
ProtectionsDynamic Active Mosfet
Crossover Frequencies1100 Hz
Recommended AmplifiersXPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504
Compression Driver1 x 1.4” neo, 3.0” v.c
Woofer1 x 12” neo, 3.5” v.c
Input ConnectorsAmphenol eco/mat IP 67
Output ConnectorsAmphenol eco/mat IP 67
IP Protection GradeIP 33C
Safety AgencyCE compliant
EN54-24 CertifiedYes
CPR Number0068-CPR-234/2025
Cabinet MaterialBirch plywood
Hardware4 x M8, 14 x M10
GrilleSteel with water-repellent protection
ColorBlack – RAL 9005
Height620 mm / 24.41 inches
Width361.8 mm / 14.24 inches
Depth404 mm / 15.91 inches
Weight23.5 kg / 51.81 lbs
Package Height665 mm / 26.18 inches
Package Width442 mm / 17.4 inches
Package Depth400 mm / 15.75 inches
Package Weight25.5 kg / 56.22 lbs
