Description

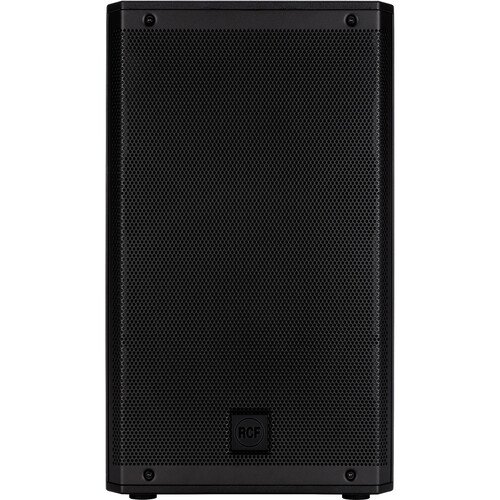

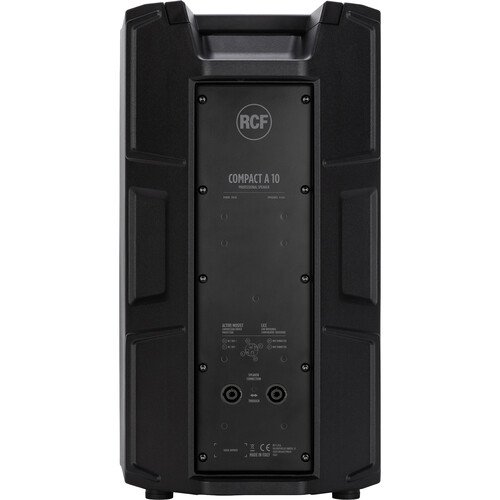

The COMPACT A 10 is a high-performance two-way professional speaker system suitable for live sound, stage monitoring, and distributed sound in venues such as clubs, restaurants, and corporate spaces. Featuring a powerful 10″ woofer and a durable 1.75″ compression driver, it offers a linear frequency response from 60 Hz to 20 kHz and an impressive sound pressure level of up to 128 dB. Its advanced cabinet design includes internal M-bracing for structural stability, ensuring distortion-free sound even at high volumes. Designed with lightweight yet robust materials, it is easy to transport and install with multiple mounting options. The speaker is equipped with Dynamic Active Mosfet protection, making it ideal for demanding environments where reliability and acoustic precision are essential.



Features



  • 350 W power handling

  • Up to 128 dB Sound Pressure Level

  • 60-20000 Hz linear frequency response

  • 1.75″ Compression Driver

  • 10″ High Power Woofer

  • Robust composite material cabinet

  • Steel full front grille

  • Optional mounting accessories

  • 2 x SPEAKON connectors



Specifications



Frequency Response (-10dB) 60 Hz – 20000 Hz
Max SPL @ 1m 128 dB
Horizontal Coverage 100°
Vertical Coverage 60°
System Sensitivity 97 dB
Amplification Full Range
Nominal Impedance 8 ohm
Power Handling 350 W
Peak Power Handling 1400 W PEAK
Protections Dynamic Active Mosfet
Crossover Frequency 1400 Hz
Recommended Amplifiers QPS 10K, QPS 6.0K, IPS 2.5K, IPS 1.5K, DMA 504
Compression Driver 1 x 1.0″, 1.75″ v.c
Woofer 1 x 10″, 2.5″ v.c
Input Connectors Speakon
Output Connectors Speakon
Safety Agency CE compliant
Cabinet Material PP Composite
Hardware 1 x M10 top and bottom
Handles 1 top
Pole Mount 35 mm insert
Grille Steel
Color Black
Height 572.1 mm / 22.52 inches
Width 329.9 mm / 12.99 inches
Depth 310 mm / 12.2 inches
Weight 16.2 kg / 35.71 lbs
Package Height 616 mm / 24.25 inches
Package Width 370 mm / 14.57 inches
Package Depth 390 mm / 15.35 inches
Package Weight 18.2 kg / 40.12 lbs
