Description

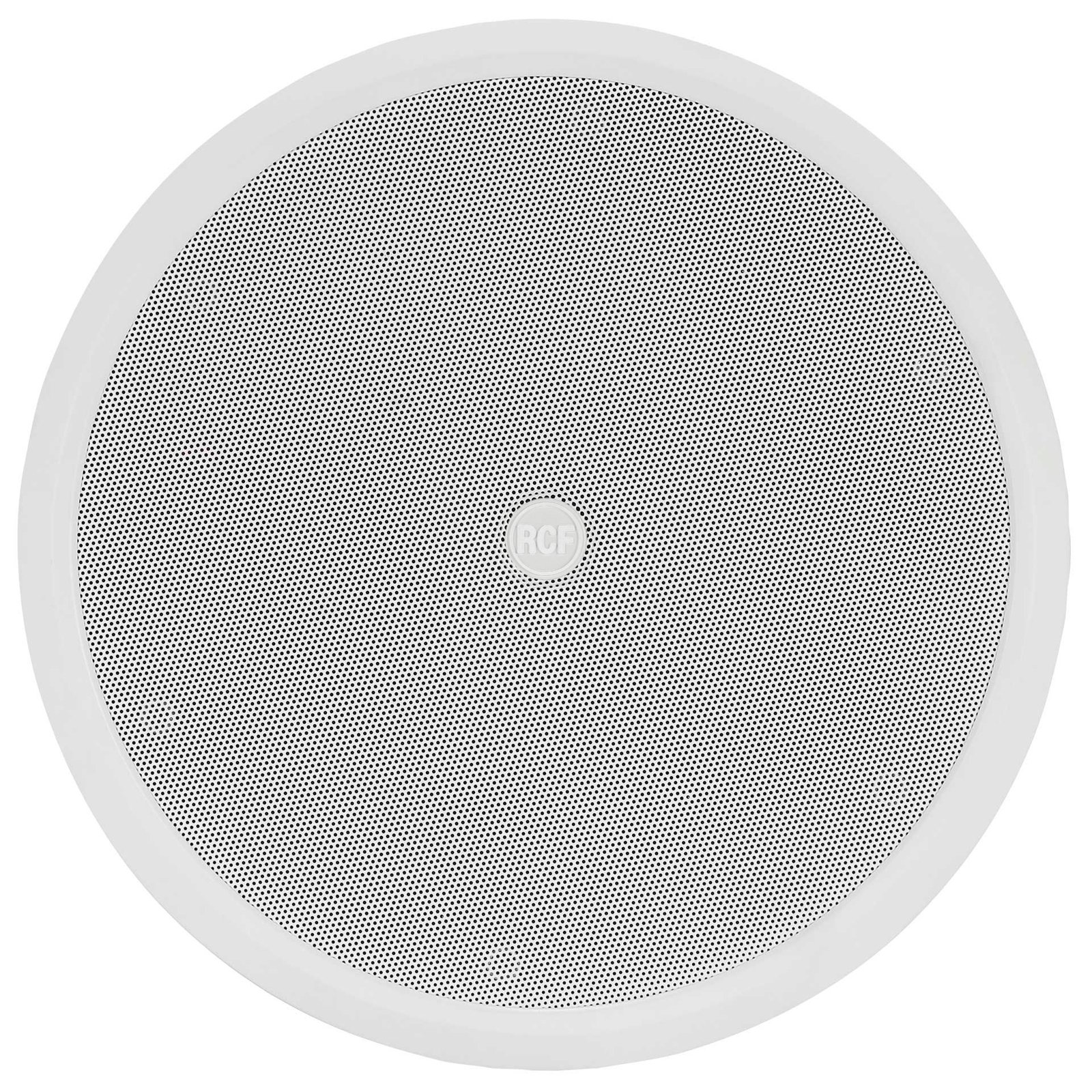

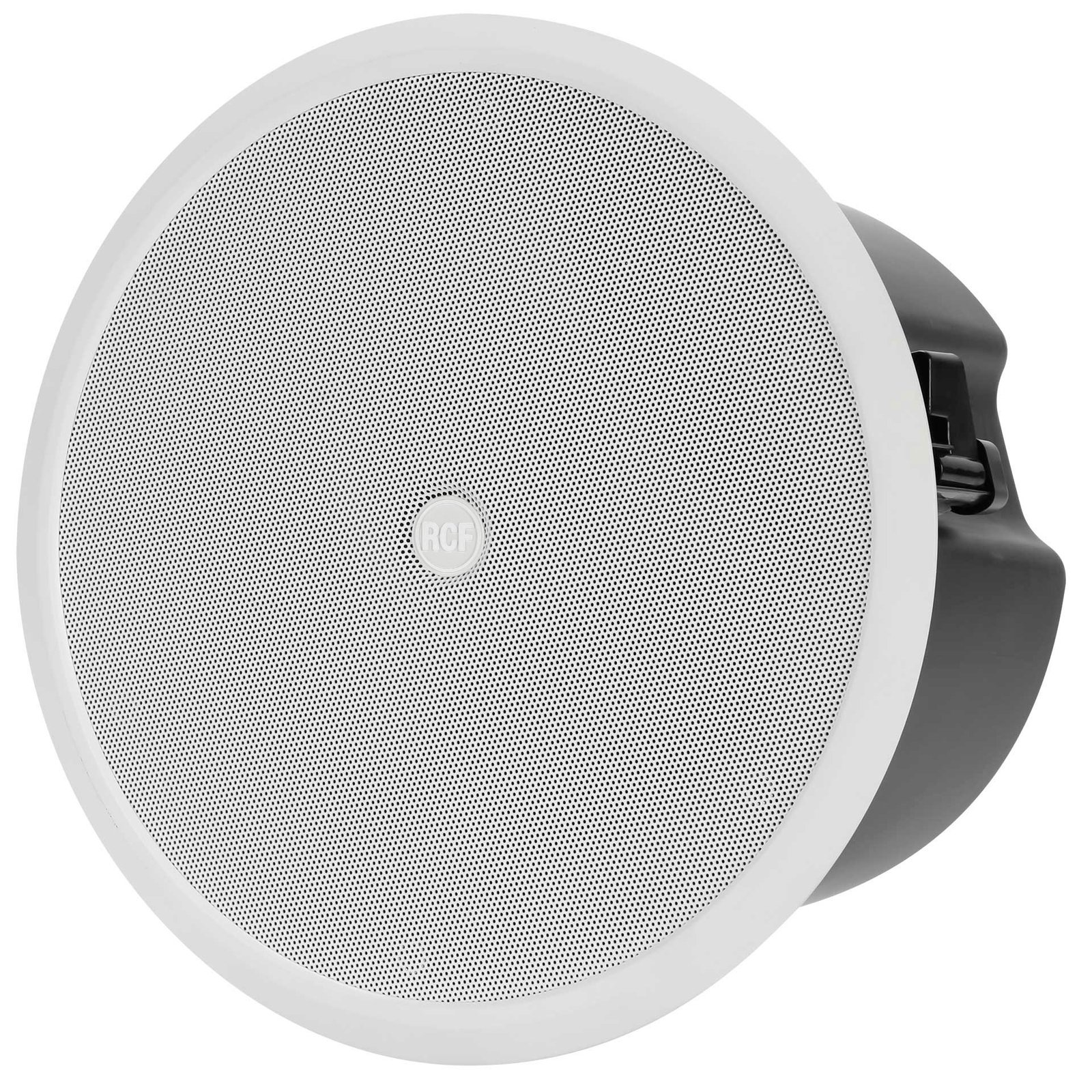

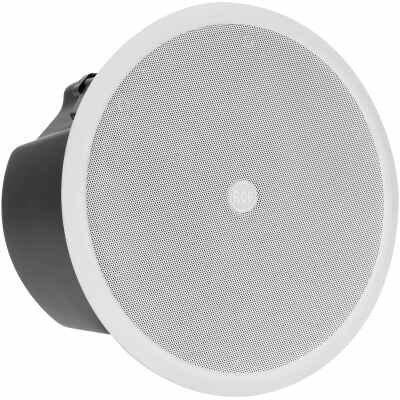

The CMR 60T combines elegant and subtle design with high-quality audio performance, making it ideal for various environments. Its coaxial transducers ensure clear and accurate reproduction across the full frequency range from 70 Hz to 20 kHz, producing impressive sound pressure levels for its compact size. Installation is simple thanks to three long-travel clamps and a removable magnetic grille that provides quick access to the power selector. The built-in line transformer supports 70 V and 100 V constant voltage lines with five selectable power levels, ensuring compatibility with a wide range of commercial audio systems. Its design suits bars, restaurants, corporate spaces, and other venues requiring reliable background and foreground music performance with consistent tonal quality. The speaker’s discreet white finish blends seamlessly into most ceilings.



Features



  • 80 W RMS power handling

  • 114 dB maximum SPL

  • Frequency range from 70 Hz to 20,000 Hz

  • 130° constant directivity conical coverage angle

  • 6.5-inch high power woofer

  • 1-inch neodymium dome tweeter

  • Self-extinguishing plastic body with steel backcan

  • Steel magnetic front grille

  • 4-pole EUROBLOCK connectors for audio input and parallel link output

  • Five selectable power levels for versatile installation



Specifications



Frequency Response (-10 dB)70 Hz ÷ 20,000 Hz
Max SPL @ 1 m114 dB
Coverage Angle130°
System Sensitivity89 dB
AmplificationFull Range
Nominal Impedance8 ohms
Power Handling80 W RMS
Peak Power Handling320 W PEAK
Crossover Frequency2500 Hz
Recommended AmplifiersDMA 504, DMA 162, DMA 82, DMA 162P
Dome Tweeter1 × 1.0″ neodymium, 1.0″ voice coil
Woofer1 × 6.5″, 1.2″ voice coil
Input ConnectorsEuroblock
Output ConnectorsEuroblock
Constant Voltage Transformer70/100 V
Power Selection 180 W – 125 ohm
Power Selection 240 W – 250 ohm
Power Selection 320 W – 500 ohm
Power Selection 410 W – 1000 ohm
Power Selection 55 W – 2000 ohm
Safety ComplianceCE compliant, UL 1480A
Cabinet/Case MaterialABS
HardwareSteel backcan
Grille MaterialSteel
ColorWhite (RAL 9003)
Depth202 mm / 7.95 inches
Recessed Depth193 mm / 7.6 inches
Diameter300 mm / 11.81 inches
Cut-out Diameter260 mm / 10.24 inches
Weight4.5 kg / 9.92 lbs
Package Height280 mm / 11.02 inches
Package Width362 mm / 14.25 inches
Package Depth362 mm / 14.25 inches
Package Weight6 kg / 13.23 lbs
