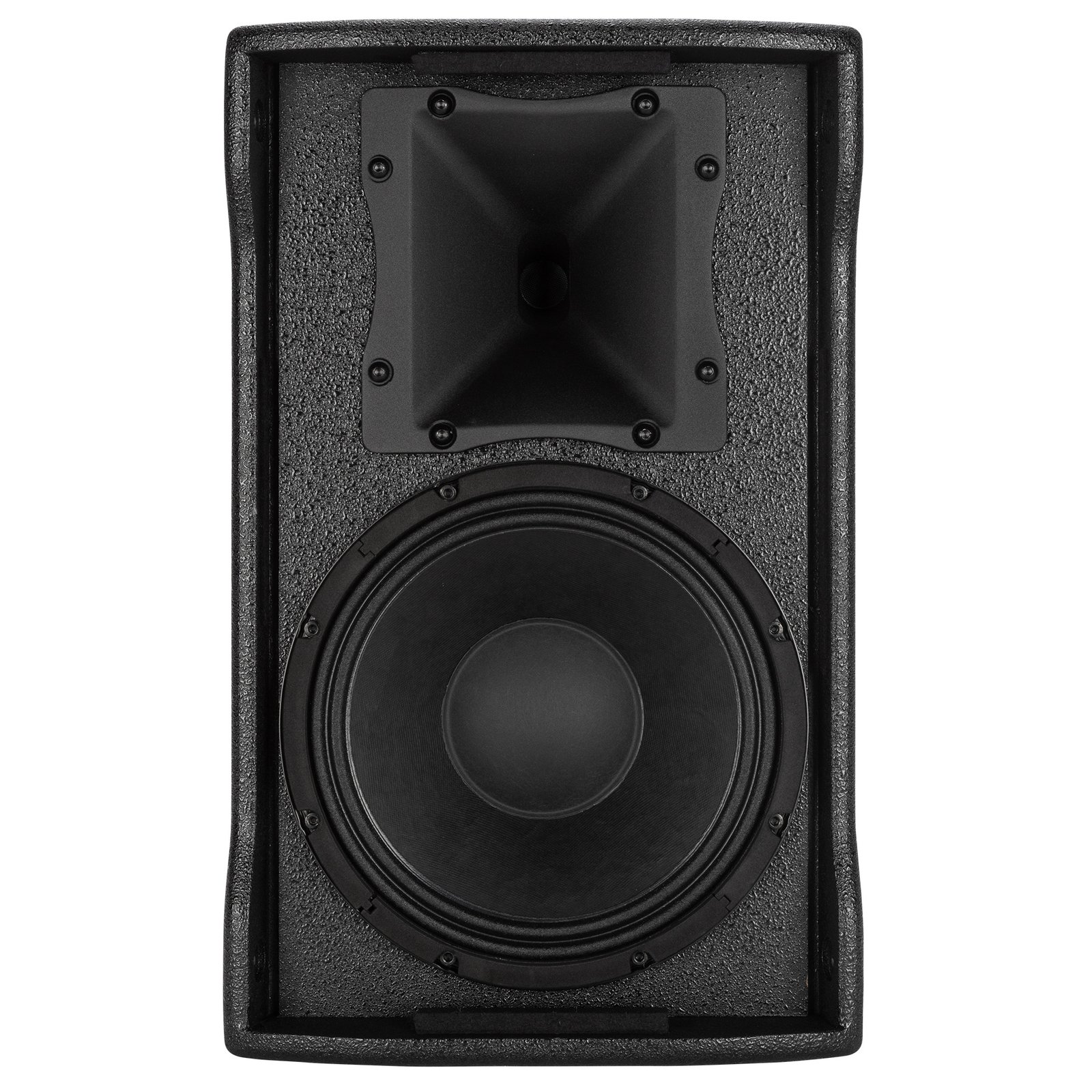

The C-MAX 4110 is a passive, two-way full-range speaker tailored for high-performance nearfield audio applications. Capable of delivering up to 128 dB SPL with 700 watts of program power handling, it ensures pristine sound quality even at elevated volumes. It features a 10” woofer for tight low-end reproduction and a 1” neodymium compression driver for crisp highs. The perfectly tuned crossover and rear-facing bass reflex port enhance vocal clarity and overall balance.
Built from heavy-duty Baltic birch plywood and finished with a black textured epoxy coating, the cabinet is road-ready and durable. Its sleek design enables optimal performance near walls without needing an additional subwoofer. Designed for easy integration, the C-MAX 4110 includes 16 M10 rigging points, a steel grille, and Speakon NL4 connectors. It’s perfectly suited for use in conference rooms, karaoke lounges, public venues, and clubs where premium sound reinforcement is essential.
Features
-
128 dB Max SPL
-
700 W program power handling
-
65 – 20000 Hz frequency response
-
Heavy-duty birch plywood cabinet with textured epoxy coating
-
High-resolution RCF Precision Transducer
-
Perfectly tuned crossover
-
Rear bass reflex port for enhanced low-end response
-
10” woofer and 1” compression driver
-
Speakon NL4 input/output connectors
-
Ideal for nearfield use in KTVs, clubs, and AV setups
Specifications
Frequency Response | 65 Hz ÷ 20000 Hz |
Max SPL @ 1m | 128 dB |
Horizontal Coverage | 90° |
Vertical Coverage | 70° |
Directivity Index Q | 11 |
System Sensitivity | 97 dB |
Amplification | Full Range |
Nominal Impedance | 8 ohm |
Power Handling | 350 W RMS / 700 W program / 1400 W peak |
Protection | Bulb lamp |
Crossover Frequency | 1800 Hz |
Compression Driver | 1 x 1.0″ neo, 1.75″ v.c |
Woofer | 1 x 10″, 2.5″ v.c |
Input Connectors | Speakon® NL4 |
Output Connectors | Speakon® NL4 |
Safety Compliance | CE compliant |
Cabinet Material | Baltic birch plywood |
Handles | 1 top handle |
Rigging Hardware | 16 x M10 mounting points |
Grille | Steel |
Color | Black |
Height | 500 mm / 19.69 in |
Width | 309 mm / 12.17 in |
Depth | 350 mm / 13.78 in |
Weight | 17.6 kg / 38.8 lbs |
Package Height | 565 mm / 22.24 in |
Package Width | 405 mm / 15.94 in |
Package Depth | 375 mm / 14.76 in |
Package Weight | 22.1 kg / 48.72 lbs |
