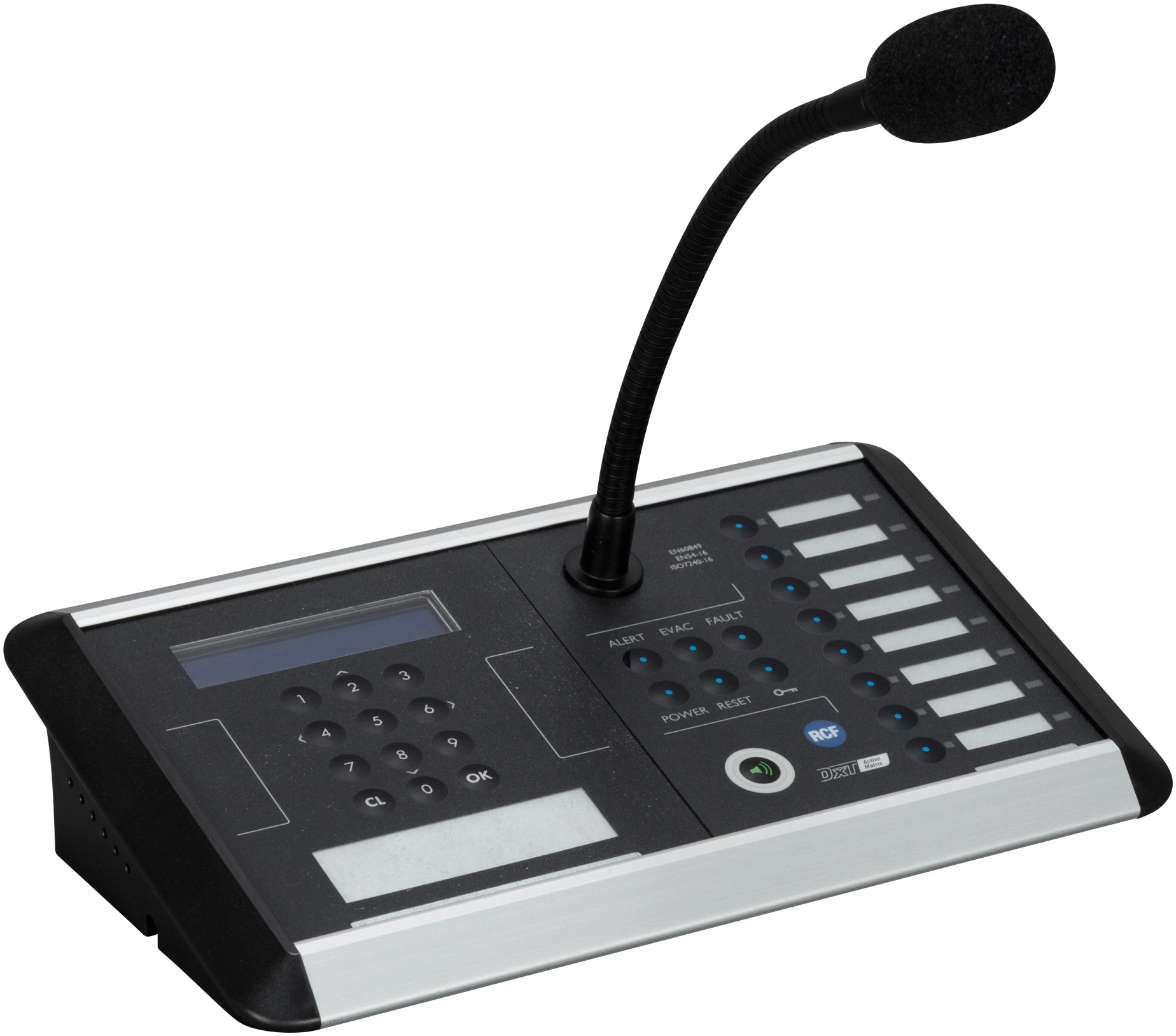

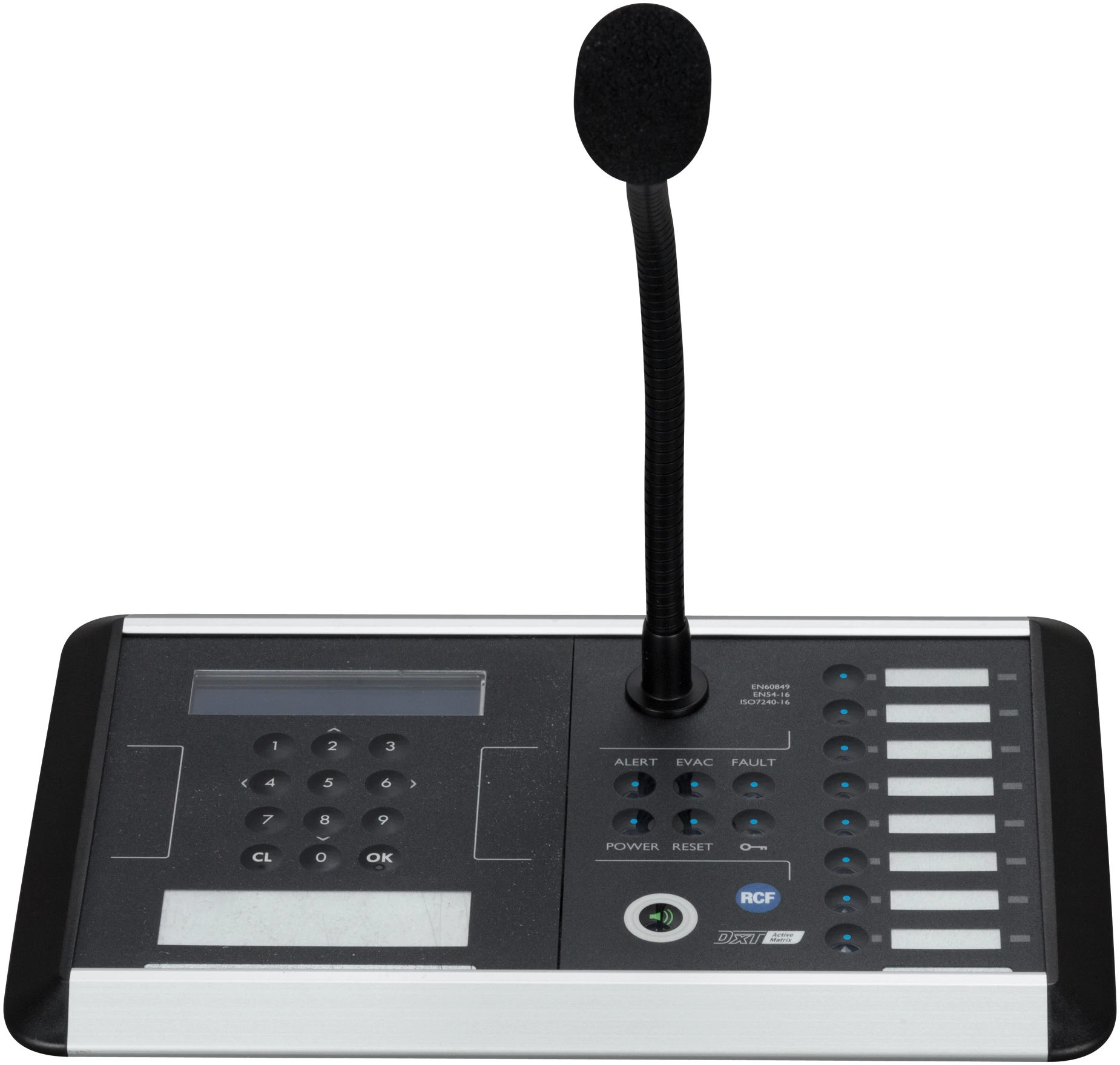

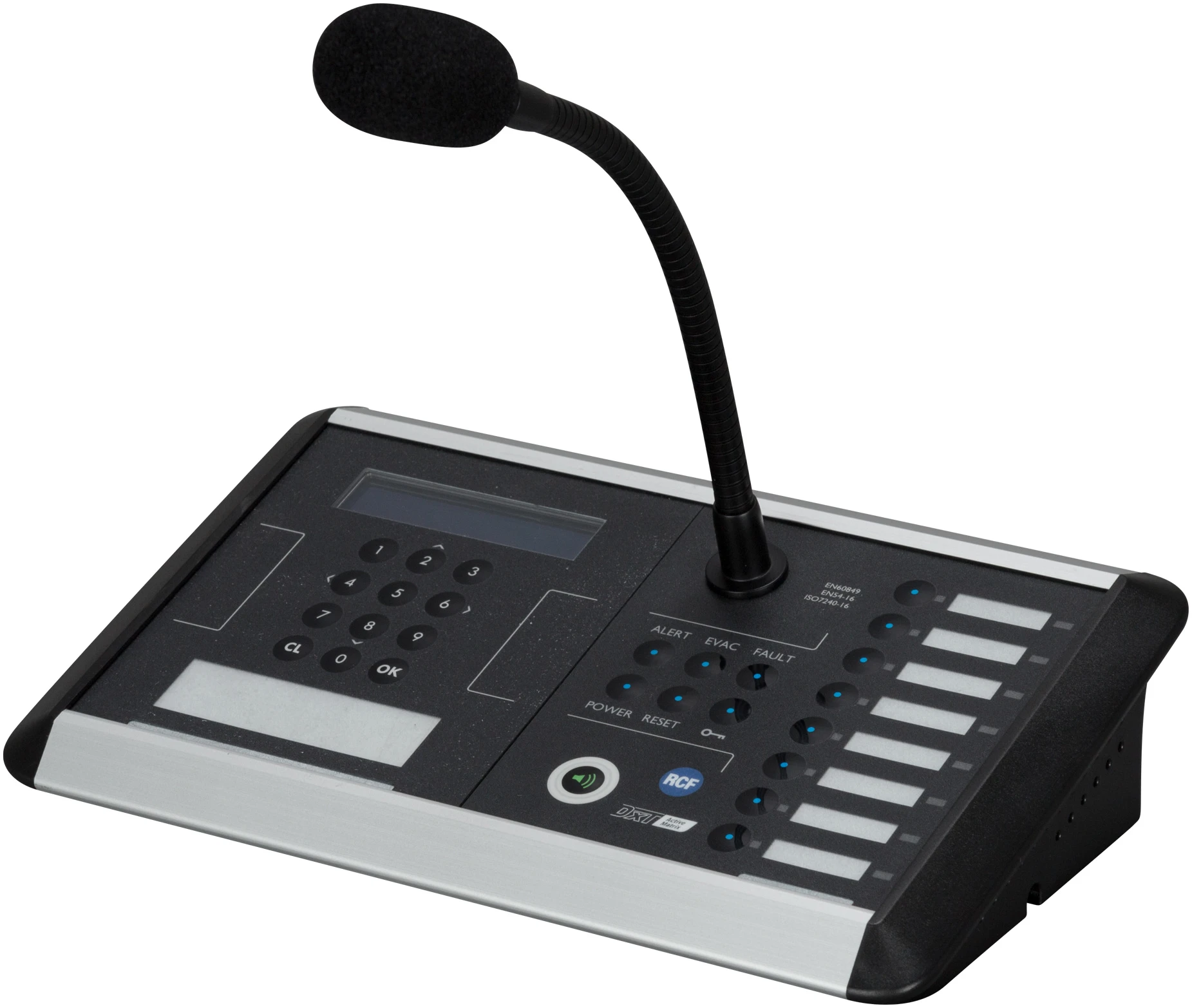

The BM 7608D is a premium desk-top emergency microphone console specifically designed for the DXT 7000 Voice Alarm system. It supports both live emergency announcements and activation of pre-recorded messages. With a high-quality cardioid electret microphone and a built-in LCD display alongside a numeric keypad, the unit offers an intuitive and user-friendly interface. It includes complete self-diagnostic features and system status reporting in line with EN 54-16 standards. Up to 8 consoles can be daisy-chained per paging bus, with a system capacity of up to 32 consoles. Designed with modern aesthetics and robust metal construction, BM 7608D is a reliable solution for voice alarm and paging needs.
Features
Live emergency announcements
Pre-recorded messages activation
Complete self-diagnostic system

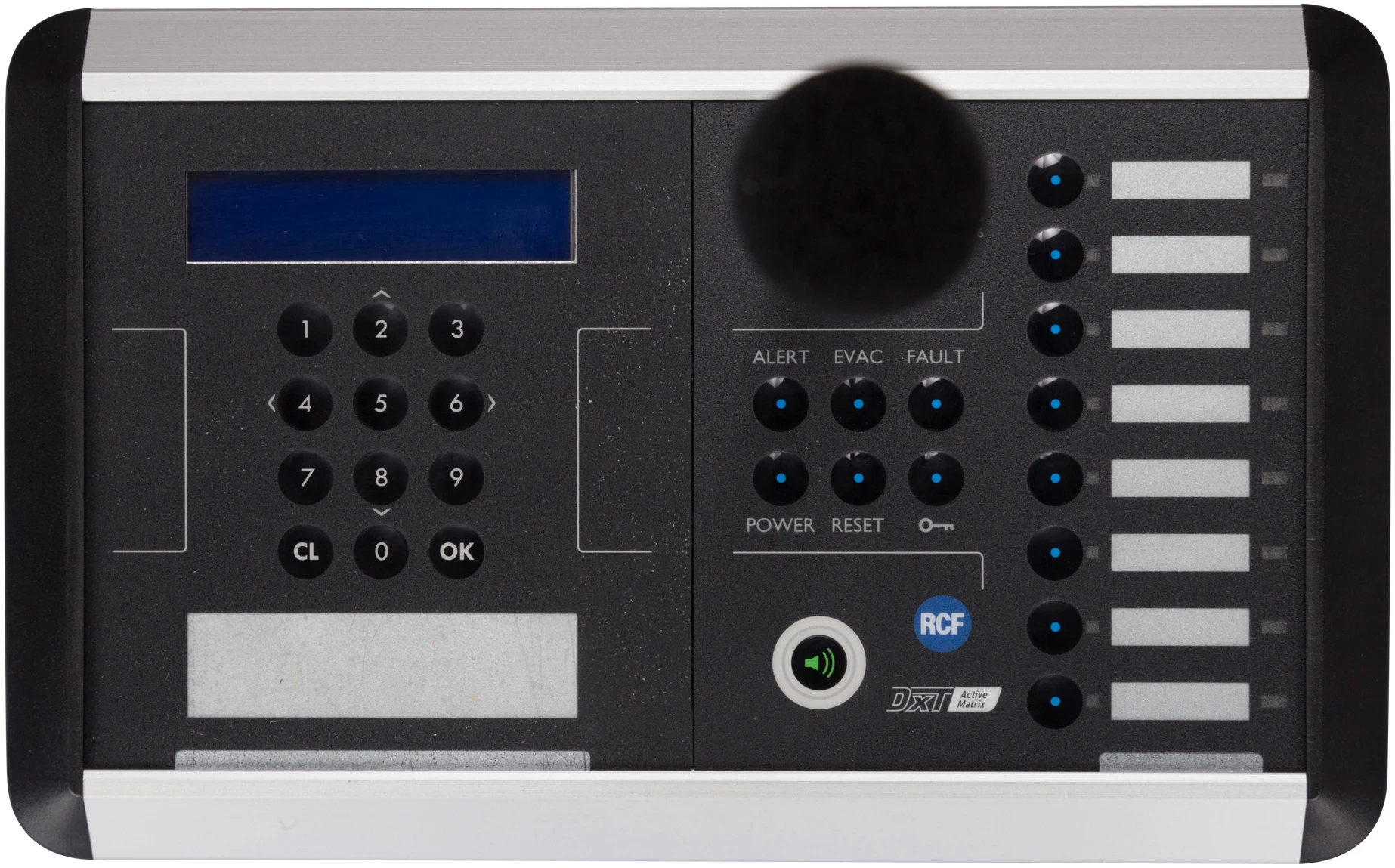

Numeric keyboard with integrated LCD display
High-quality cardioid microphone
Modern design and durable metal casing
Daisy-chain support for up to 8 consoles per bus
Specifications
| Microphone type | Electret |
| Microphone directivity | Cardioid |
| Frequency response (-3 dB) | 50 Hz ÷ 17 kHz |
| Total harmonic distortion @ 1 kHz | 0.10 % |
| Console type | Emergency |
| Compatible system | DXT 7000 |
| General call | Yes |
| Selective call | Yes |
| Preamplified | Yes |
| Configurable buttons | Yes |
| LED indicators | Yes |
| LCD screen | Yes |

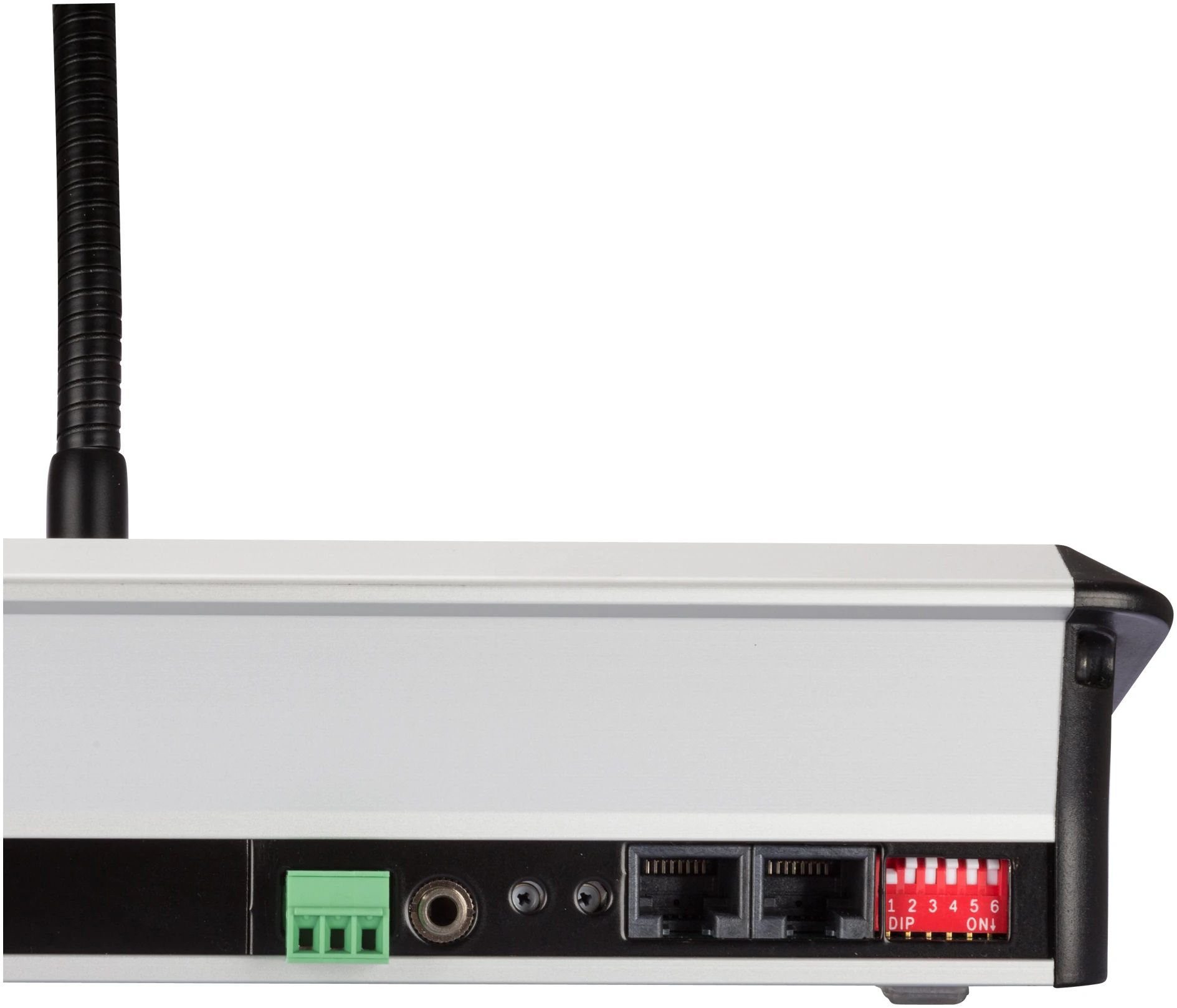

| Connectors | RJ45 |
| Cable type | FTP CAT 5 |
| Daisy-chain support | Yes |
| Max units in daisy-chain | 8 |
| Interlock | Yes |
| Priority | Yes |
| Chime tone generator | Yes |
| Cable included | Yes |
| Cable length | 5 m |
| CE compliant | Yes |
| EN54-16 certified | Yes |
| CPR number | 1438-CPR-1093 |
| Cabinet material | Metal |
| Height | 55 mm / 2.17 inches |
| Width | 226 mm / 8.9 inches |
| Depth | 135 mm / 5.31 inches |
| Weight | 0.8 kg / 1.76 lbs |
| Package height | 2500 mm / 98.43 inches (likely error) |
| Package width | 2400 mm / 94.49 inches (likely error) |
| Package depth | 1500 mm / 59.06 inches (likely error) |
| Package weight | 1.3 kg / 2.87 lbs |
